ABB Monitoring Relay 1 Phase SPST DIN Rail Mount 24V AC DC 1SVR550855R9400 CM-ENE MAX

Free Delivery in India | Lowest Global Shipping Charges

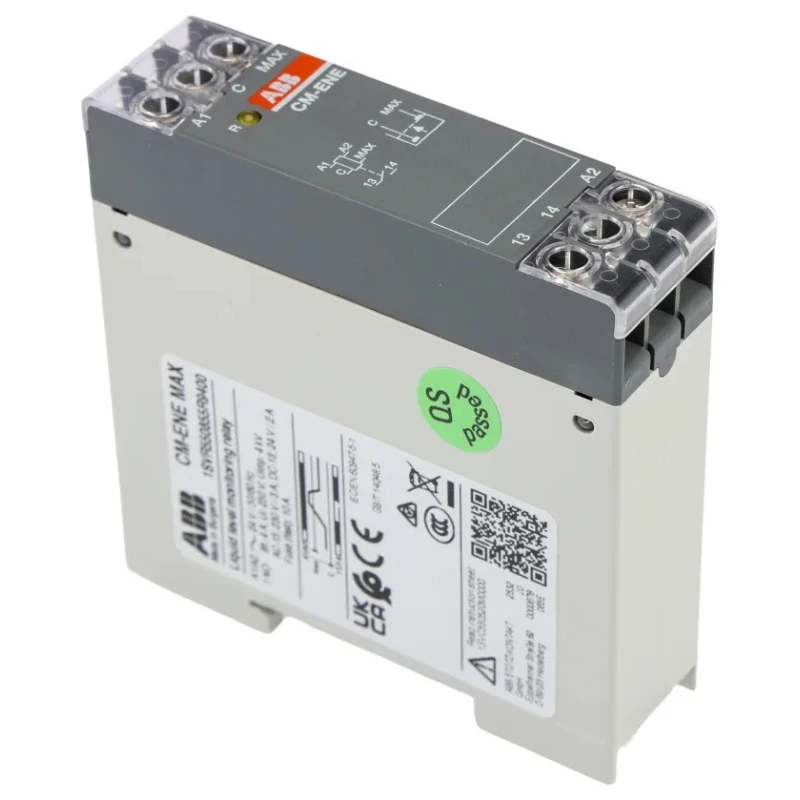

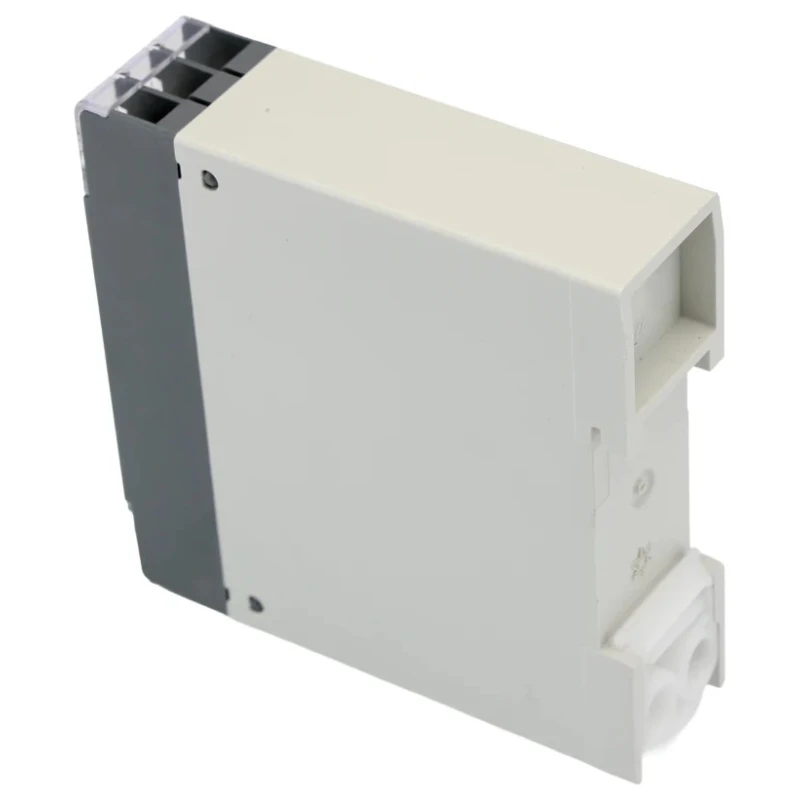

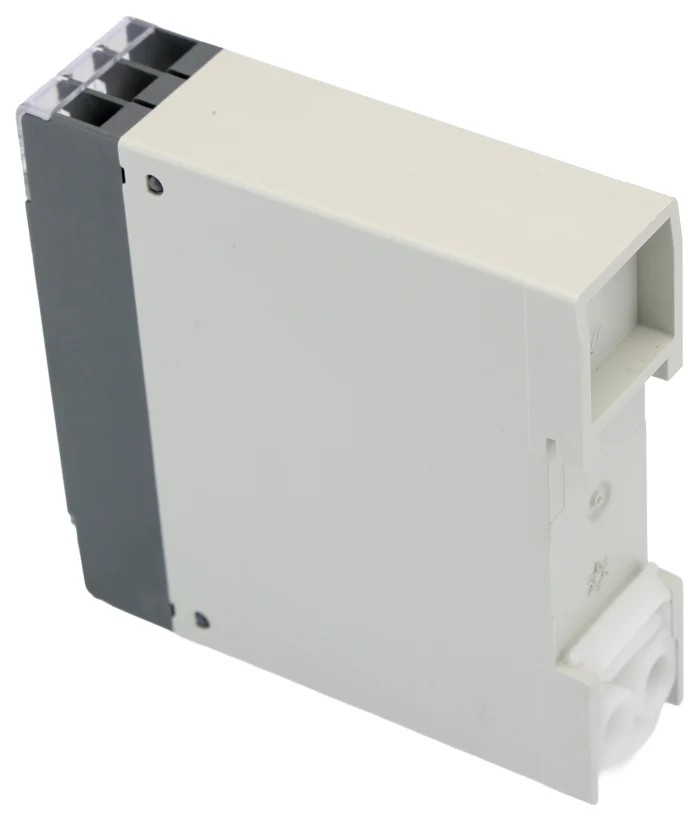

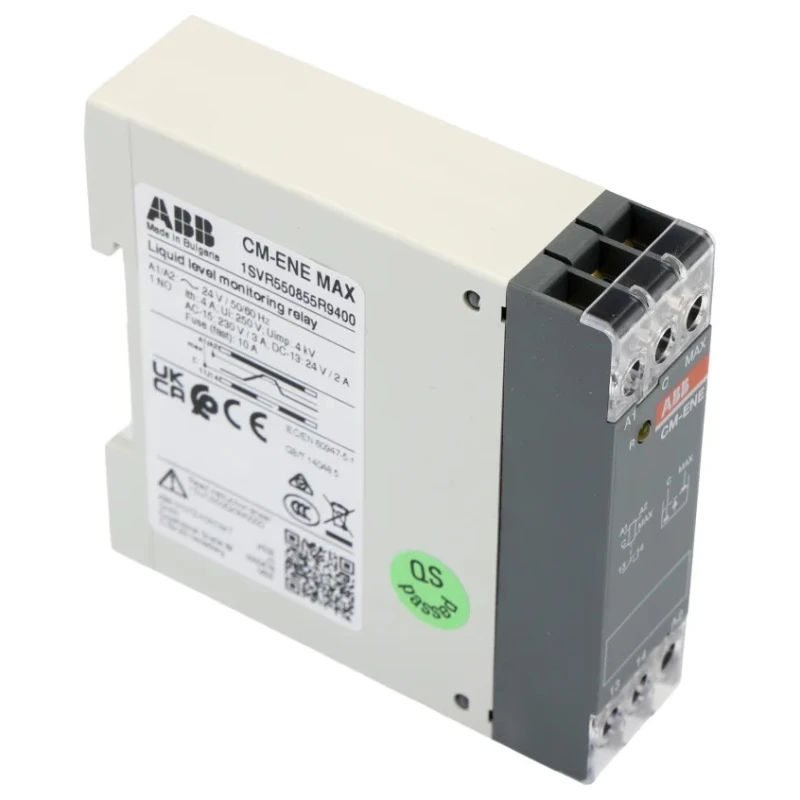

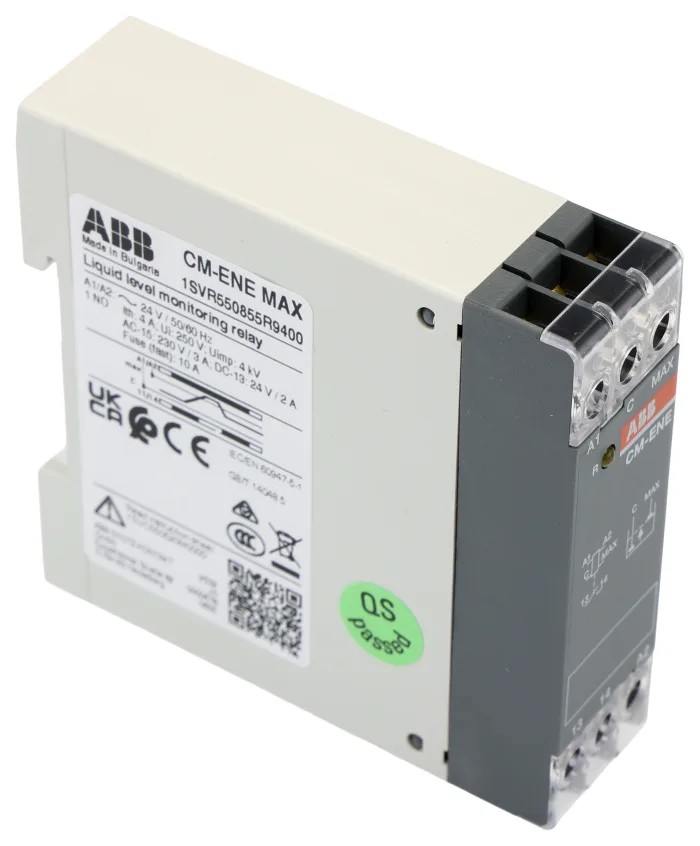

ABB Monitoring Relay 1 Phase SPST DIN Rail Mount 24V AC DC 1SVR550855R9400 CM-ENE MAX



Category Monitoring Relays Brand ABB Condition New

Specifications

Country of Origin	Bulgaria
Measurement Range	0 to 100 kΩ
Brand	ABB
Height	78mm
Length	78.5mm
Model	1SVR550855R9400 CM-ENE MAX
IP Rating	IP20
Width	22.5mm
Mount Type	DIN Rail
Series	CM
Contact Configuration	SPST
Terminal type	Screw
Electrical Phase	1
Standards/Approvals	RoHS
Switching Voltage	24V
Supply DC Voltage	24 V dc
Supply AC Voltage	24V ac

Key Features

This relay supports 24V AC and 24 V DC supply voltages.
Compact dimensions of 78.5 x 22.5 x 78 mm allow for space-efficient installation.
Equipped with screw terminal type ensuring secure and reliable connections.
IP20 rating gives basic protection against solid foreign objects.
Operates effectively in temperature range from -20 to +60°C for diverse industrial environments.
Measurement range covers 0 to 100 kΩ, suitable for liquid level applications.
Complies with RoHS standards for environmental safety.
Ideal for water treatment, chemical processing, and manufacturing sectors.

Product Description

ABB 1SVR550855R9400 CM-ENE MAX Monitoring Relay is a high-precision device engineered primarily for liquid level monitoring in industrial tanks and process control systems. Supporting a single-phase electrical configuration with SPST contact, this relay is intended for DIN rail mounting, providing flexible and compact integration within electrical control cabinets.

This relay operates on both 24V AC and 24V DC supply voltages and features screw terminal connections, which secure reliable wiring during installation and operation. The compact size - 78.5 mm length, 22.5 mm width, and 78 mm height - enables efficient use of cabinet space. It offers an operating temperature range from -20 to +60°C, ensuring durability and consistent performance under varied environmental conditions.

The device holds an IP20 rating, providing protection against solid particles greater than 12 mm, which is suitable for indoor electrical environments. Measurement sensitivity covers a range from 0 to 100 kΩ, allowing precise liquid level detection necessary for operational efficiency and safety.

Compliant with RoHS environmental standards, this relay supports sustainable industrial applications. Typical usage scenarios include automatic liquid level control in water treatment plants, chemical processing industries, and manufacturing facilities, preventing overflow or dry run conditions by monitoring liquid flow levels accurately.

This relay features a single pole single throw (SPST) contact configuration for straightforward switching control. Designed for DIN rail mounting offering ease of installation and integration in electrical panels. Screw terminal type connections ensure secure and dependable electrical contacts.

Compact form factor with dimensions 78.5 x 22.5 x 78 mm. Operational temperature range from -20°C to +60°C suitable for diverse industrial environments. Measurement range from 0 to 100 kΩ enhances liquid level monitoring precision.

Supports both 24V AC and 24V DC power supply for versatile deployment. IP20 protection rating suitable for indoor use protecting against solid objects. RoHS compliant for environmental safety and reliability. Recommended for applications in water treatment, chemicals, and manufacturing sectors.

Explore our comprehensive range of Monitoring Relays for advanced industrial and automation control solutions on EnvMart.
