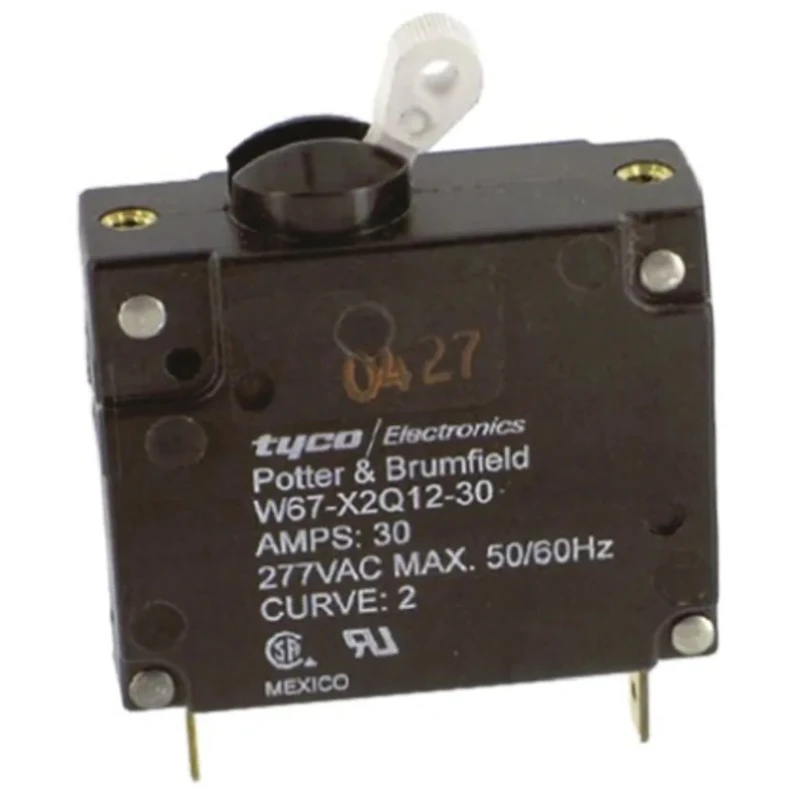

TE Connectivity Thermal Circuit Breaker 30A Current Rating 1-Pole Direct Mount W67-X2Q12-30

TE Connectivity W67-X2Q12-30 Thermal Circuit Breaker is a high-performance electrical protection device designed for industrial and commercial applications requiring reliable current interruption. This model supports a 30 ampere current rating with a single pole configuration for direct mounting, making it suitable for panel installations and equipment protection.

The breaker employs a thermal tripping mechanism combined with a toggle switch reset actuator, providing precise and user-friendly manual reset capabilities. Rated for 250 volts AC and 50 volts DC, it can safely interrupt fault currents up to 1000 amperes, ensuring critical circuit protection.

Its physical dimensions include a width of 19.05mm, height of 68.69mm, and depth of 50.55mm, allowing installation in compact panels and switchboards. The device features screw terminals to secure wiring reliably, and mounting is facilitated through a direct mount with an 18.8 mm hole size.

Tripping characteristics allow the breaker to trip between 101% and 134% of load current, with a mandatory trip at 125% of rated load to protect circuits from prolonged overload conditions. The medium break time balances protection sensitivity and operational stability.

Certified to RoHS and CE standards, this thermal breaker meets regulatory requirements for quality and safety. Originating from Mexico, the product combines robust engineering with international compliance for peace of mind in electrical systems.

Designed for thermal tripping with a toggle switch reset actuator. Rated AC voltage of 250V and DC voltage of 50V. High breaking capacity of 1000A ensuring reliable protection. Compact size with 19.05mm width, 68.69mm height, and 50.55mm depth.

Features screw terminal type and a mount hole size of 18.8 mm for secure installation. May trip between 101% and 134%, must trip at 125% of rated load. Complies with RoHS and CE standards for environmental and safety compliance.

This thermal circuit breaker is ideal for use in electrical distribution, automation control panels, commercial machinery, HVAC systems, and industrial manufacturing environments requiring efficient protection against overload and short circuits. Explore more products in the Thermal Circuit Breaker category on EnvMart for comprehensive electrical safety solutions.
