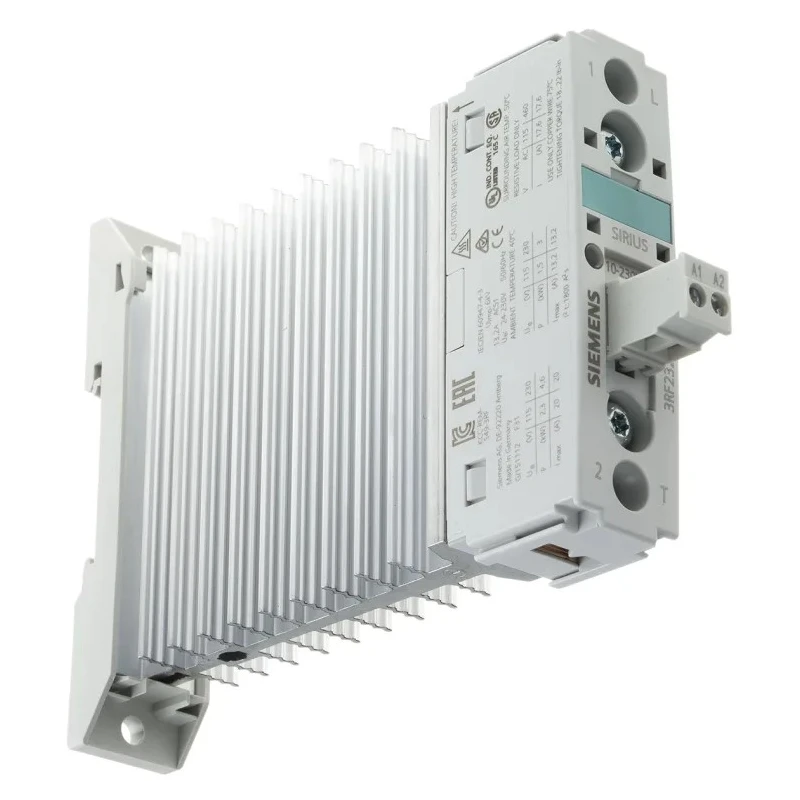

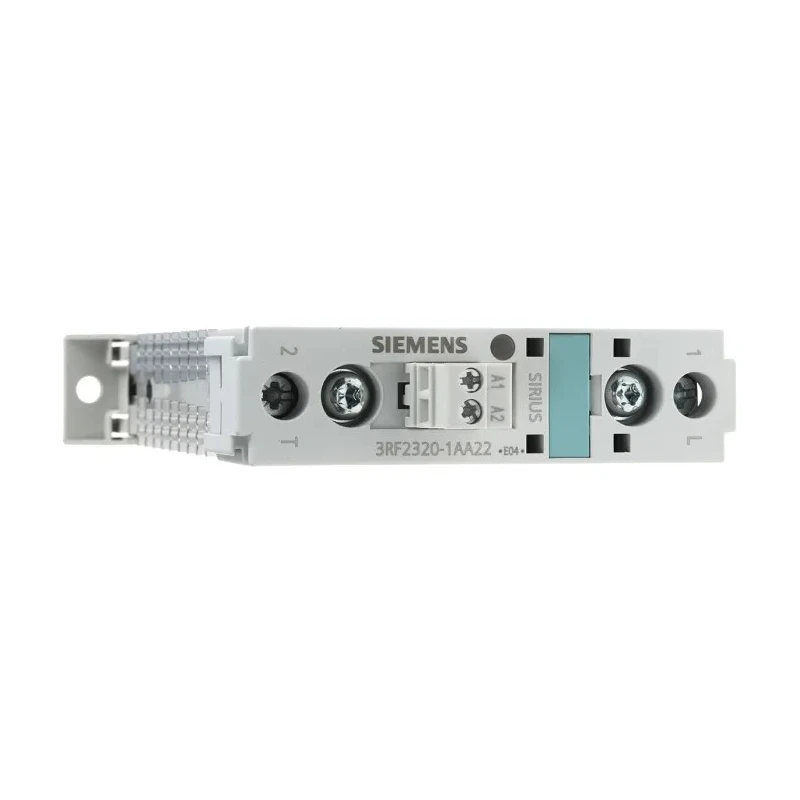

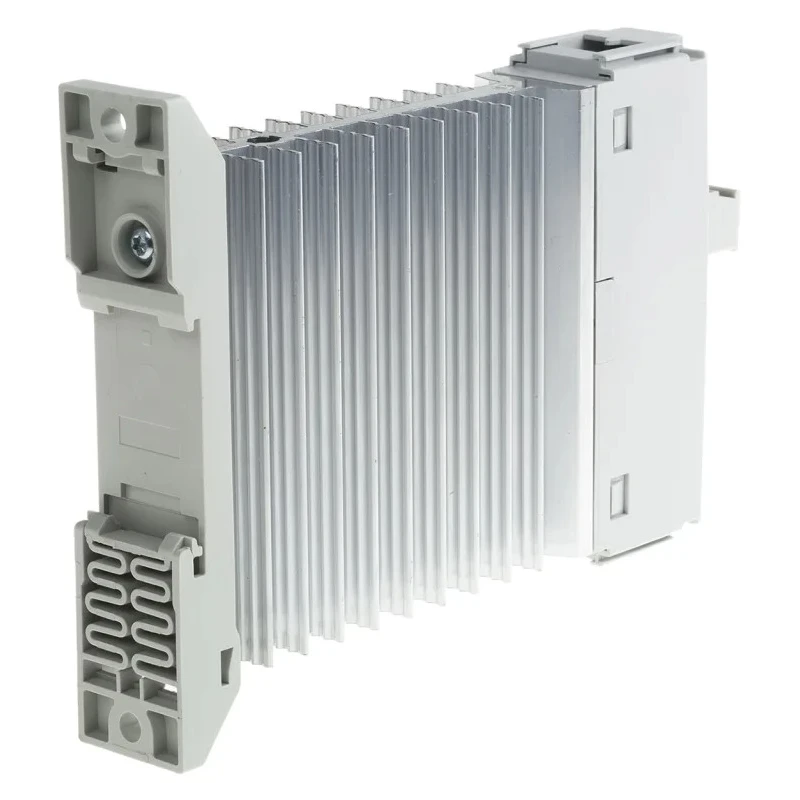

Siemens Solid State Relay 20 A Load, DIN Rail Mount, 230 V ac Load, 230 V ac Control 3RF2320-1AA22
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Height | 140.5mm |
| Length | 100mm |
| Model | 3RF2320-1AA22 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Output type | Thyristor |
| Series | 3RF2 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 20A |
| Standards/Approvals | CE, CSA, C-Tick, EAC, RoHS, UL |
| Maximum Load Voltage | 230V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 110V ac |
| Off State Leakage Current | 10mA |
Key Features
- Supports maximum load current of 20 A for high power applications.
- Equipped with screw terminal connections for secure and fast wiring.
- Features zero cross switching for reduced electrical noise.
- Compact dimensions with 140.5 mm height, 22.5 mm width, and 100 mm length.
- IP20 rated for protection against solid objects greater than 12 mm.
- Operates reliably between -25°C and 60°C operating temperatures.
- Thyristor output type ensures efficient switching performance.
- Contact configuration is SPST for single-pole single-throw switching.
Product Description
Siemens 3RF2320-1AA22 Solid State Relay is a high-performance electrical component designed to switch loads up to 20 A on a 230 V ac supply. It features a reliable DIN rail mounting system that simplifies installation in industrial and automation control panels.
This relay incorporates advanced DCB technology for optimized heat transfer combined with efficient thyristor elements capable of handling high reverse voltage. Its screw terminal connections provide fast and secure wiring during assembly.
The device operates with zero cross switching functionality to minimize transient voltage spikes and electrical noise, making it ideal for sensitive industrial electronics and automation systems requiring precise control.
With compact physical dimensions of 140.5 mm height, 22.5 mm width, and 100 mm length, the relay fits neatly in DIN rail setups while providing an IP20 ingress protection rating to guard against solid particles larger than 12 mm.
Rated for operation from -25°C up to 60°C, this solid state relay ensures dependable performance across a wide range of harsh environmental conditions commonly encountered in manufacturing, HVAC, and industrial automation.
Supports maximum load current of 20 A for high power handling. Zero cross switching reduces electrical noise and switching stress. Screw terminal type connections for durability and ease of assembly. IP20 protection offers reliable ingress resistance.
Compact size suitable for optimized space utilization in control cabinets. Compliance with international certifications including CE and UL for safety assurance. Manufactured in Germany to ensure quality and long-term reliability.
This Solid State Relay is widely suited for industrial automation, electrical control systems, manufacturing processes, and HVAC applications requiring efficient and durable relay switching solutions.
Explore more high-quality Siemens relays and automation components at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 20 A.
The minimum control voltage is 110 V ac, while the maximum load voltage is 230 V ac.
This model has dimensions of 140.5 mm in height, 22.5 mm in width, and 100 mm in length.
It uses a DIN rail mounting system for easy installation in industrial control panels.
The relay operates reliably between -25°C and 60°C.
It features a thyristor output type for efficient switching performance.
Zero cross switching minimizes transient voltage spikes and reduces electrical noise, making it suitable for sensitive applications.
The relay has an IP20 ingress protection rating, guarding against solid objects larger than 12 mm.
The contact configuration is SPST, which stands for single-pole single-throw switching.
This model complies with several international standards including CE, CSA, C-Tick, EAC, RoHS, and UL.
It is equipped with screw terminal connections for secure and fast wiring.
This solid state relay is manufactured in Germany.
