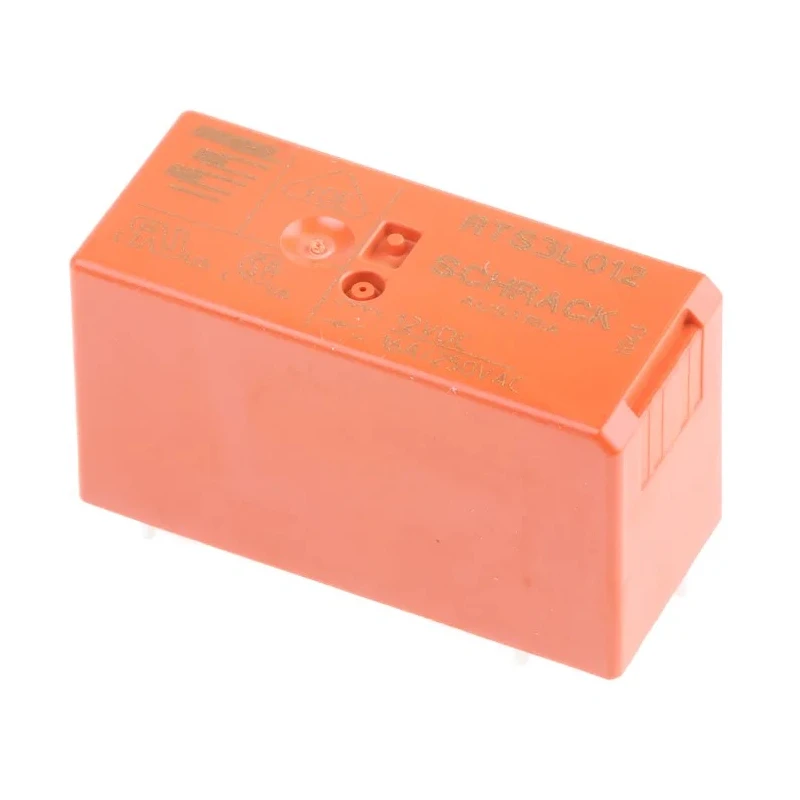

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPST RTS3L012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 16mm |
| Length | 29mm |
| Model | RTS3L012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT-iPower |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- 12V DC coil voltage optimized for efficient control.
- Single Pole Single Throw (SPST) contact configuration for simple switching.
- 16 Amp switching current rating for robust load handling.
- PCB mount type with solder terminal connection for easy integration.
- Silver Alloy contact material ensures low contact resistance and durability.
- Operational temperature range from -40°C to 85°C for wide industrial applications.
- Switching AC voltage up to 400V AC supporting various electrical loads.
- Coil resistance of 360 Ohms with coil power consumption of 400mW.
Product Description
TE Connectivity RTS3L012 PCB Power Relay features a 12V DC coil designed for efficient power control applications. It provides a switching current capacity of 16A with a single pole single throw (SPST) contact configuration, making it ideal for controlling lighting systems, motors, filament, and incandescent lamp loads in industrial, automation, and electrical applications.
This power relay belongs to the RT-iPower series offering reliable performance with reinforced insulation, 10mm creepage and clearance, and a robust solder terminal type mount suitable for printed circuit board (PCB) integration.

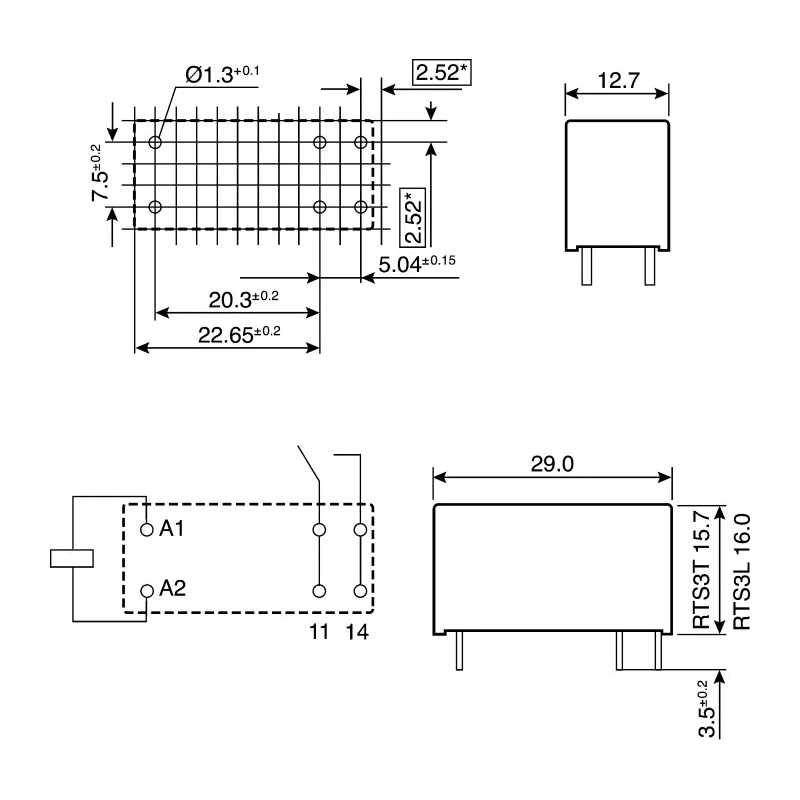

Its compact form factor with dimensions of 29mm (length), 16mm (height), and 12.7mm (width) allows for space-efficient designs. The relay is equipped with silver alloy contacts that provide excellent conductivity and durability over extended cycles.
Operating temperatures range from -40°C to 85°C, ensuring suitability for demanding environments. The device handles switching AC voltages up to 400V, with a coil resistance of 360 Ohms and coil power rated at 400 milliwatts.
The RTS3L012 relay meets RoHS standards and carries approvals from UL, CSA, and VDE, underscoring its compliance with safety and quality regulations. Made in Austria, this relay delivers proven reliability in industrial, electrical automation, and manufacturing systems.
12V DC coil voltage optimized for efficient control. Single Pole Single Throw (SPST) contact configuration for simple switching. 16 Amp switching current rating for robust load handling. PCB mount type with solder terminals for easy integration.
Compact dimensions fitting diverse PCB layouts. Silver Alloy contacts for durability and low resistance. Wide operational temperature range from -40°C to 85°C. Supports switching AC voltage up to 400V AC. Coil resistance 360 Ohms with 400mW coil power.
RoHS compliant and approved by UL, CSA, VDE. Manufactured in Austria ensuring high manufacturing standards.
Ideal for use in industrial automation, electrical manufacturing, HVAC, and signal conditioning applications. Explore TE Connectivity relays for high reliability and efficient power switching solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 16A, allowing it to handle robust loads effectively.
This model operates with a coil voltage of 12V DC, optimized for efficient control applications.
It features a Single Pole Single Throw (SPST) contact configuration, suitable for simple switching tasks.
The relay measures 29mm in length, 16mm in height, and 12.7mm in width, making it compact for various PCB layouts.
It can switch AC voltages up to 400V, accommodating a variety of electrical loads.
The coil resistance is 360 Ohms, which contributes to its power consumption characteristics.
The operational temperature range is from -40°C to 85°C, allowing it to function in demanding environments.
It is designed for PCB mounting with solder terminals, facilitating easy integration into circuits.
The contacts are made of silver alloy, which ensures low contact resistance and durability over time.
Yes, it meets RoHS standards and carries approvals from UL, CSA, and VDE, ensuring compliance with safety regulations.
This relay is manufactured in Austria, adhering to high manufacturing standards.
It is suitable for industrial automation, electrical manufacturing, HVAC, and signal conditioning applications.
