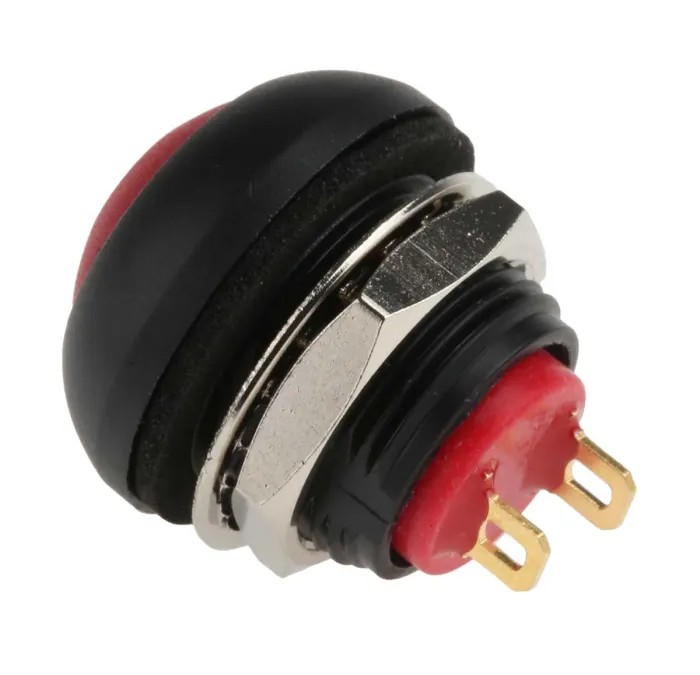

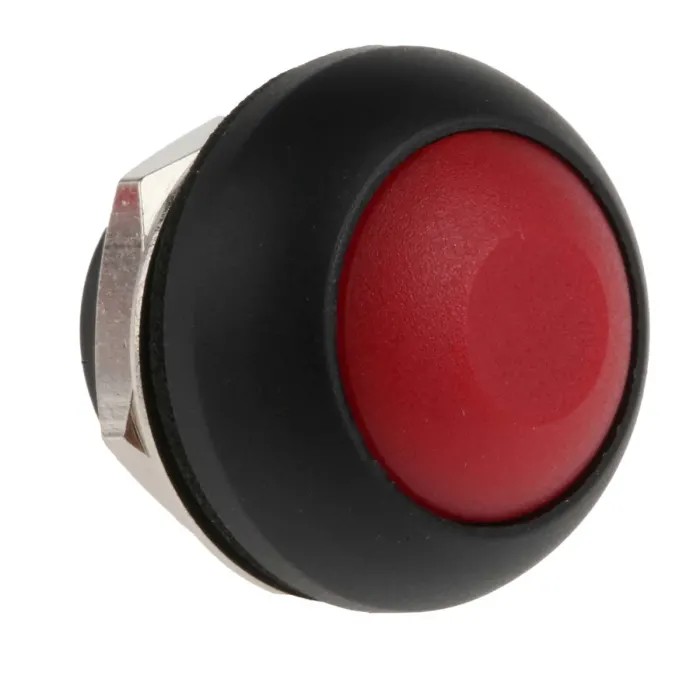

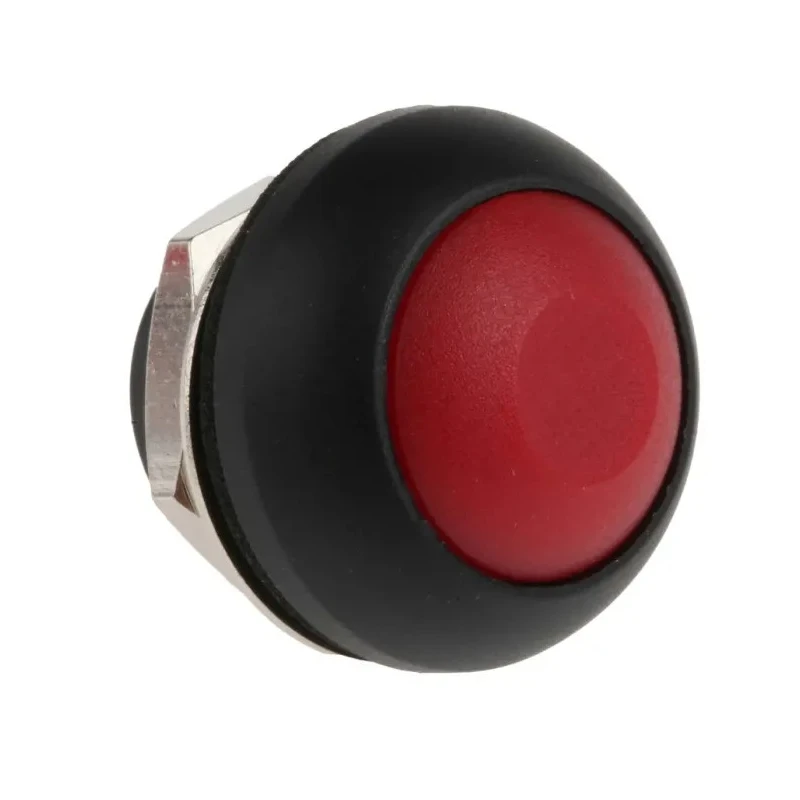

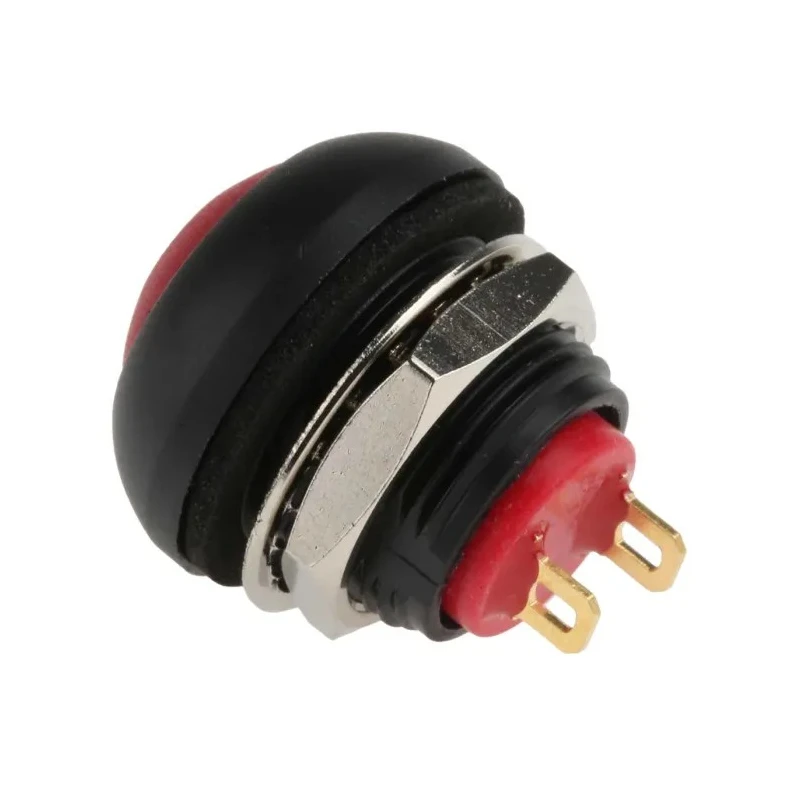

RS PRO Miniature Push Button Switch, On-Off, Panel Mount, SPST, Red LED, IP67, 13.6 mm Cutout, 50 V dc 734-6710
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 734-6710 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | Lead-Free, RoHS |
| LED Colour | Red |
| Switch Operation | On-Off |
| Actuator Colour | Red |
| Contact DC Voltage | 50V dc |
| Actuator Style | Push Button |
| Switch Contact Current | 400mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- The switch features an SPST contact configuration for single-pole single-throw switching.
- It includes a red LED actuator color with IP67 ingress protection rating.
- Designed for a contact DC voltage of 50 V and a maximum contact current of 400 mA.
- Operating temperature ranges between -30°C to 85°C, ensuring reliable performance.
- Constructed with a polyamide 6/6 cap and gold over silver plated contacts for durability.
- The switch supports mechanical life of up to 1,000,000 cycles with a low contact bounce of 10 ms.
- It is suitable for panel mount with solder terminal types and offers protection against dust and water.
- Typical applications include test equipment, telecommunications, networking, and handheld appliances.
Product Description
RS PRO 734-6710 Miniature Push Button Switch is a durable and precise on-off switch designed for panel mounting with a 13.6 mm cutout. It operates at a contact DC voltage of 50 V and can handle a switch contact current of 400 mA. The switch features a red LED actuator which is not illuminated and provides IP67 ingress protection, making it dust-tight and water-resistant. Its actuator style is push button and it has a contact configuration of SPST, suitable for single-pole switching applications.
The switch is constructed with a high-quality polyamide 6/6 cap with gold over silver plated contact ensuring durability and reliable electrical connection. It operates efficiently within temperatures from -30°C to 85°C, with an operating force between 2N and 5N and low contact bounce of 10 milliseconds. Mechanical life expectancy is rated at 1,000,000 cycles, confirming long-term usage capabilities. Soldering conditions allow a maximum of 350°C for 5 seconds.
This product is ideal for industrial, laboratory, and commercial applications including test equipment, telecommunications devices, networking components, and handheld appliances. The RS PRO brand ensures rigorous testing and adherence to demanding industry standards with certifications such as Lead-Free and RoHS compliance.
On-Off switch operation with SPST contact configuration. Panel mount type suitable for 13.6 mm cutout. Red LED actuator with IP67 protection rating. Operates at 50 V DC and 400 mA contact current. Robust mechanical life of 1,000,000 cycles.
Temperature range from -30°C to 85°C for versatile applications. High-quality materials with gold over silver plated contacts. Compliance with Lead-Free and RoHS standards for environmental safety. Solder terminal type with safe soldering parameters.
This RS PRO miniature push button switch combines precision engineering and reliable operation for use in demanding industrial and commercial environments. Explore the RS PRO range for more electronic components and switches on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single-Pole Single-Throw) contact configuration, suitable for on-off switching applications.
The maximum operating temperature for this switch is 85°C.
It has an IP67 ingress protection rating, making it dust-tight and water-resistant.
This switch has a mechanical life expectancy rated at 1,000,000 cycles, ensuring long-term usability.
The contact DC voltage rating for this model is 50 V.
It can handle a maximum contact current of 400 mA.
This switch uses solder terminal types for connections.
The required panel cutout size for this switch is 13.6 mm.
The operating temperature range for this model is from -30°C to 85°C.
The soldering conditions allow a maximum temperature of 350°C for 5 seconds.
Typical applications include test equipment, telecommunications, networking, and handheld appliances.
This model complies with Lead-Free and RoHS standards, ensuring environmental safety.
