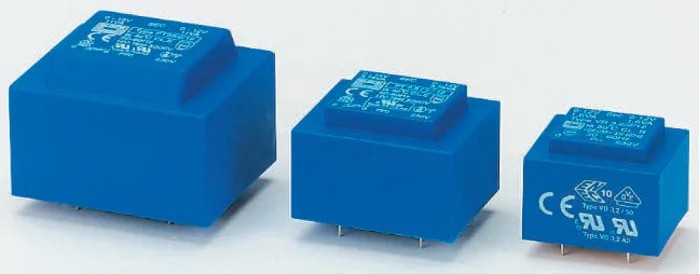

Block PCB Transformer 24 V ac 1 Output Pin, 230 V ac Primary, 1.2 VA Power, ENEC 10 (VDE), C-UL-US Certified VB 1,2/1/24

Block VB 1,2/1/24 PCB Transformer is a high-quality component engineered for industrial and electronic applications requiring reliable AC voltage transformation. This PCB-mounted transformer outputs 24 V ac from a 230 V ac primary input with a single output pin and a power rating of 1.2 VA.

The transformer features robust construction including vacuum epoxy resin moulding with UL94-V0 flammability rating and double-section glass fibre reinforced polyamide bobbins. It is inherently short-circuit proof conforming to VB series standards and complies with EN 61558 safety standards.

Its compact size of 32.3 mm by 27.3 mm by 23.8 mm allows for efficient PCB layout without compromising performance. The device supports an isolation voltage of 5000 V, guaranteeing enhanced electrical safety and low inter-winding capacitance for noise reduction.

Operating within a temperature range up to 70°C and frequency range of 50 to 60 Hz, the transformer maintains consistent efficiency at 57%, suitable for various industrial, laboratory, and commercial electronic systems.

This transformer conforms to ENEC 10 (VDE) and holds C-UL-US approvals, ensuring adherence to international quality and safety standards. Its pin mount type enables secure PCB installation, making it ideal for power supply and distribution system designs.

Primary voltage: 230 V ac. Secondary voltage: 24 V ac. Power rating: 1.2 VA. Isolation voltage: 5000 V. Operating frequency: 50 - 60 Hz. Maximum operating temperature: 70°C. Efficiency: 57%. Mount type: Pin. Dimensions: 32.3 mm x 27.3 mm x 23.8 mm (LxWxD).

This PCB transformer is especially suited for use in industrial machines, power supplies, control equipment, and electronics manufacturing sectors requiring safe and reliable voltage transformation. Explore the full range of PCB Transformers at EnvMart for optimized electronic component sourcing.
