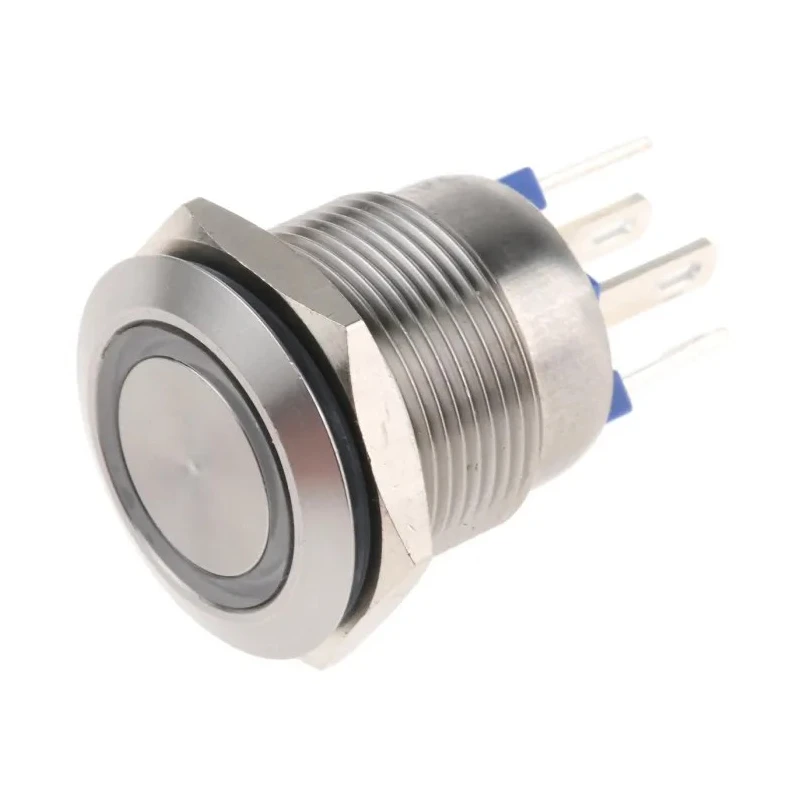

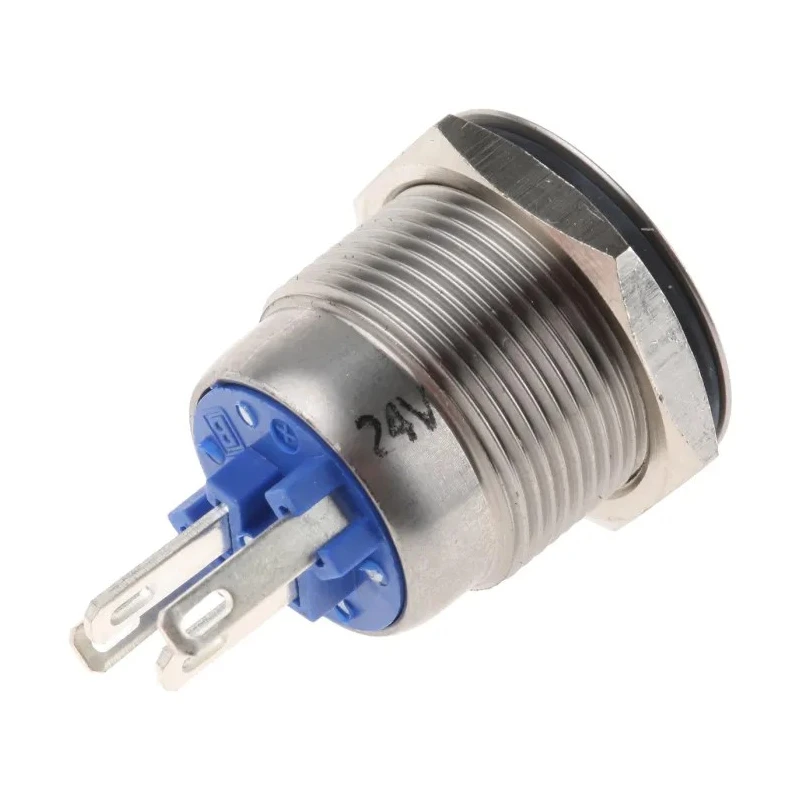

Bulgin Illuminated Push Button Switch, Momentary, Panel Mount, 19.2 mm Cutout, SPST, Blue LED, IP66, 24 V dc MPI002

Bulgin MPI002 Illuminated Push Button Switch is a panel mount, momentary actuator switch designed for demanding industrial and automation applications. It features a 19.2 mm panel cutout diameter and a single-pole single-throw (SPST) contact configuration. The actuator is silver colored and illuminated with a blue LED operating at 24 V dc, providing clear visible status indication.

Manufactured with stainless steel materials, MPI002 series switches are vandal resistant and built for longevity in harsh environments. The IP66 rating certifies the switch is fully protected against dust ingress and powerful water jets, making it suitable for both indoor and outdoor installations requiring robust environmental protection.

The switch supports a contact DC voltage of 24 V and a switch contact current of 50 mA, suitable for control signal circuits in automation panels. It operates effectively over a wide temperature range from -30°C to 70°C, accommodating extreme conditions.

Termination options include flying leads (35 mm length + 300 mm leads) and 2.8 mm solder tag terminals (32.7 mm length), allowing flexible connectivity depending on installation preferences. Internal transient voltage suppression (TVS) provides protection against electrostatic discharge and voltage spikes, enhancing reliability.

This switch is supplied with integral supply resistors for 6 V, 12 V, and 24 V variants to accommodate different LED illumination requirements without external components. The momentary switch operation ensures the circuit is only closed while the button is pressed.

Durable stainless steel construction for vandal resistance. IP66 sealed against dust and water jets for demanding environments. Blue LED illumination with integral supply resistor options. Multiple termination options including flying leads and solder tags.

Wide operating temperature range from -30°C to 70°C. Internal TVS protection for enhanced durability. Compliant with RoHS environmental standards. Overall lengths: 35 mm + 300 mm flying leads, 32.7 mm with solder tags.

The Bulgin MPI002 series push button switch is commonly used in industrial control panels, automation equipment, machinery operator interfaces, and electrical enclosures requiring reliable user input devices with visual feedback. Its ruggedness and environmental sealing make it ideal for manufacturing, HVAC systems, water treatment, and laboratory instrumentation applications.
