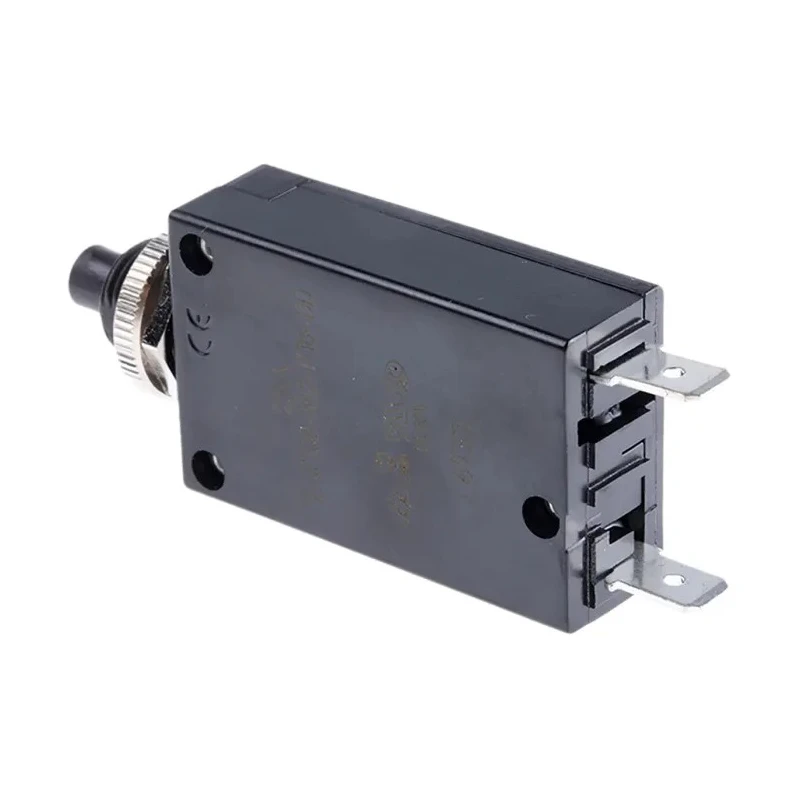

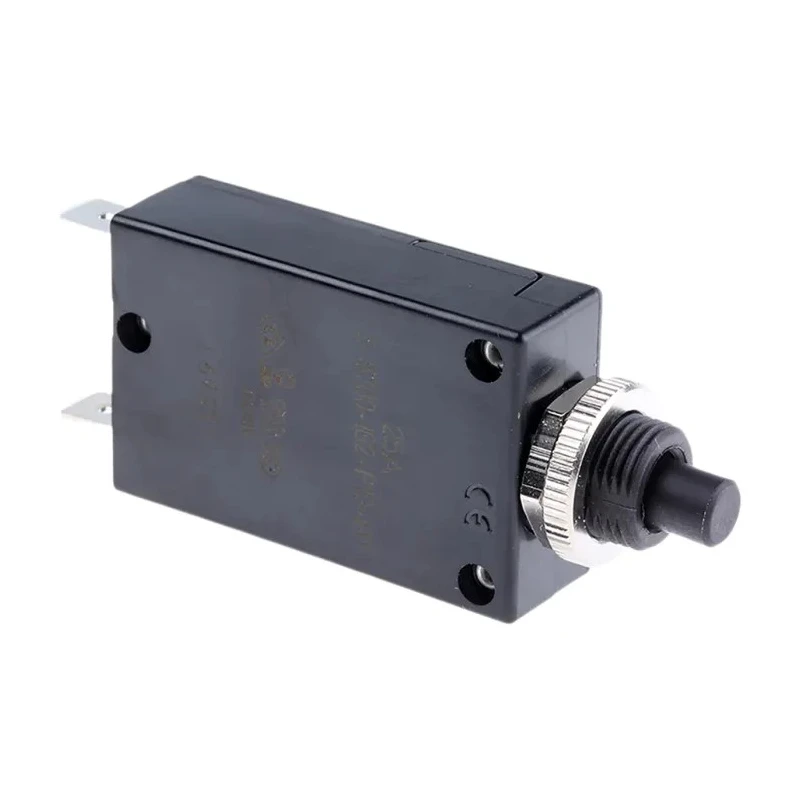

ETA Thermal Circuit Breaker 25A Current Rating 1-Pole Panel Mount 2-5700-IG2-P10-DD-000040-25A

ETA 2-5700-IG2-P10-DD-000040-25A Thermal Circuit Breaker is a high-quality panel mount device designed primarily for overload and short circuit protection in electrical systems.

This 1-pole breaker features a 25A current rating and a rated AC voltage of 250V with a DC voltage rating of 50V, suitable for many low voltage applications including motor protection, power supplies, and transformers.

The compact 15.7 mm width and 44 mm height allow easy integration into panels via a 3/8 inch or M12 moulded thread-neck single-hole mounting. The blade terminals (6.3-0.8 mm) ensure secure wiring connections.

It incorporates a thermal tripping mechanism with Type R characteristics, providing reliable overload detection. The push-to-release/reset button actuator simplifies manual resetting after a trip event, and the tease free, trip free mechanism guarantees long operational life and safety.

The breaker offers a breaking capacity of 25A with a medium breaking time, meeting the IEC Classification S/TO for usage in motor circuits and extra low voltage systems. Compliance with RoHS and CE ensures environmental and safety standards. The unit is UL, CSA, and VDE (EN60934) approved, indicating broad international certifications.

The breaker is engineered for industrial, commercial, and manufacturing environments where motor protection and electrical safety are critical. Its robust construction supports typical life cycles of 5000 operations at twice the nominal current, ensuring durability.

This breaker offers a rated AC voltage of 250V and DC voltage of 50V. It features a thermal tripping mechanism with Type R characteristics for consistent performance. Compact design with a width of 15.7 mm and height of 44 mm suits panel mounting.

Push-to-release and push-to-reset button actuator for easy manual control. Blade type terminals measuring 6.3 to 0.8 mm provide secure electrical connections. Tease free and trip free mechanism ensures long operational life and safety.

Breaking capacity is rated at 25A with medium break time to handle overloads. Compliant with RoHS and CE standards, ensuring regulatory adherence. Typical mechanical life of 5000 operations at twice nominal current rating.

Made in Tunisia for international quality assurance. Explore more in the Thermal Circuit Breaker category at EnvMart for industrial-grade circuit protection solutions.
