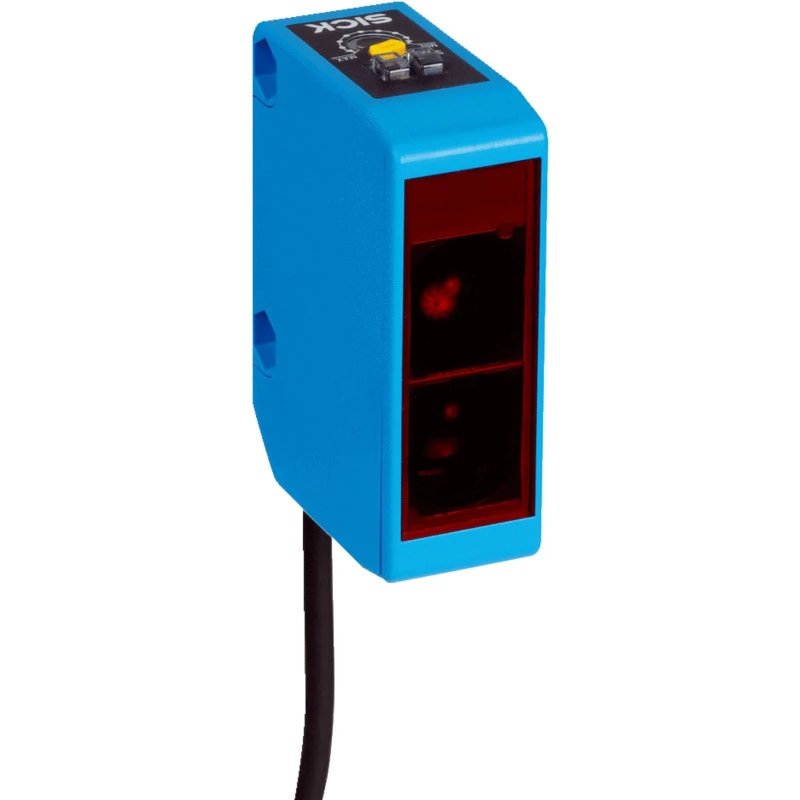

SICK Retroreflective Photoelectric Sensor Block Style, 12 m Detection Range, NPN Output, IP67, Plastic Housing WL250-2N1131
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 12 m |
| Model | WL250-2N1131 |
| IP Rating | IP67 |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W250-2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | EN 60947-5-2 |
| Sensor Style | Block |
Key Features
- Offers high sensitivity with an easily adjustable potentiometer and positioning indicator.
- Equipped with bright red LED for simple alignment and detection.
- Durable plastic housing with IP67 rating provides robust protection against dust and water.
- Includes BEF-W250 stainless steel mounting bracket for secure installation.
- Light/dark switching mode selectable via control cable to reduce variants.
- Supports supply voltage of 10 to 30 V DC with maximum current of 100mA.
- Fast response time of 500 microseconds suitable for dynamic sensing tasks.
- Operating temperature range from -25°C to 55°C ensures reliable performance in harsh environments.
Product Description
The SICK WL250-2N1131 is a highly versatile retroreflective photoelectric sensor designed for industrial automation and control applications. Featuring a block style sensor with a sensing range of up to 12 meters, it offers reliable detection capabilities using an LED light source and NPN output configuration. The sensor housing is made of durable plastic and rated IP67, ensuring protection against dust and water ingress.
This sensor model includes a BEF-W250 stainless steel mounting bracket to facilitate secure and easy installation. The bright red LED BrightLight indicator provides clear visibility to aid sensor alignment and sensitivity adjustments through an integrated potentiometer with a positioning indicator.
Powering the sensor requires a DC voltage supply between 10 and 30 V, with a maximum current rating of 100 mA. The device supports selectable light/dark switching via a control cable, which helps in reducing the number of variants needed for different applications. Its compact design offers options for either a cable variant or a rotatable M12 connector, enhancing flexibility in system integration.
With fast response time of 500 microseconds and an operating temperature range from -25°C to 55°C, the WL250-2N1131 is suitable for use in demanding industrial environments including manufacturing, automation lines, packaging, and process control.
Standards compliance includes EN 60947-5-2, and the product is manufactured in China ensuring industrial quality. This photoelectric sensor is an excellent choice for applications requiring precise object detection, distance sensing, and automated process monitoring in laboratory, manufacturing, and HVAC systems.
Offers high sensitivity with an easily adjustable potentiometer and positioning indicator. Equipped with bright red LED for simple alignment and detection. Durable plastic housing with IP67 rating provides robust protection against dust and water.
Includes BEF-W250 stainless steel mounting bracket for secure installation. Light/dark switching mode selectable via control cable to reduce variants. Supports supply voltage of 10 to 30 V DC with maximum current of 100mA.
Fast response time of 500 microseconds suitable for dynamic sensing tasks. Operating temperature range from -25°C to 55°C ensures reliable performance in harsh environments. Compact design with rotatable M12 connector or cable variants enhances installation flexibility.
Explore more in the Photoelectric Sensors category on EnvMart for compatible automation and sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is up to 12 meters.
It features an NPN output configuration.
The response time is 500 microseconds, making it suitable for dynamic sensing tasks.
The operating temperature range is from -25°C to 55°C.
The sensor has an IP67 rating, providing protection against dust and water ingress.
It requires a DC voltage supply between 10 and 30 V, with a maximum current of 100 mA.
The housing is made of durable plastic.
Yes, it includes a BEF-W250 stainless steel mounting bracket for secure installation.
It uses an LED light source for detection.
It complies with the EN 60947-5-2 standard.
It offers a compact design with options for either a cable variant or a rotatable M12 connector.
It performs retroreflective detection.
