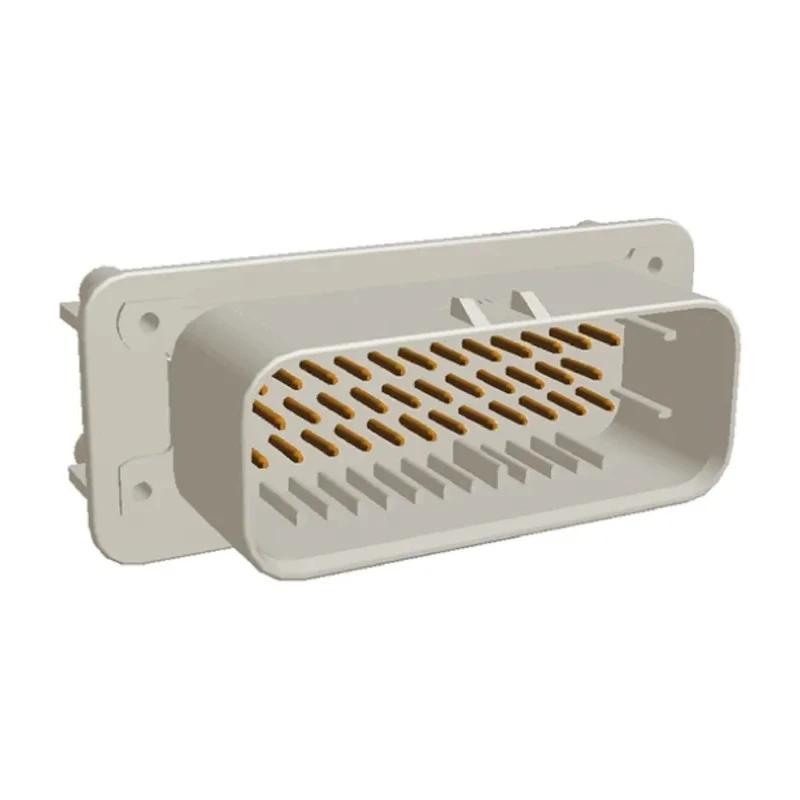

TE Connectivity Ampseal Automotive Connector Male Natural Panel Mount 35 Way Solder Termination 1-776230-2
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Natural |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP67, IP69K |
| Width | 76.9mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- Panel mount connector with 35 contacts suitable for automotive use.
- PCB connector subtype with solder termination ensures reliable electrical connection.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- Brass contacts plated with gold provide excellent conductivity and corrosion resistance.
- Meets IP67 and IP69K ratings for protection against dust and water ingress.
- Operates within a temperature range from -40°C to 125°C for varied environments.
- Designed with three rows of contacts, each 1.3mm diameter for secure fitting.
- This series belongs to the Ampseal line known for robust automotive connectors.
Product Description
TE Connectivity 1-776230-2 Ampseal automotive connector male natural panel mount offers a 35 way solder termination solution designed primarily for automotive PCB mounting applications.
Manufactured with a fibreglass reinforced polybutylene terephthalate housing, this connector provides excellent mechanical strength and thermal stability. The brass contacts with gold plating ensure efficient signal transmission while protecting against corrosion in demanding environments.
This panel mount connector supports three rows of contacts with a contact diameter of 1.3mm, making it suitable for medium density automotive circuitry. It carries an IP67 and IP69K ingress protection rating, safeguarding against dust and ingress of high-pressure water jets, suitable for harsh operating conditions.
The connector is rated to operate across a temperature range from -40°C to 125°C, suitable for typical automotive environments. The natural-colored housing aids in visual identification and integration into vehicle panels without affecting design aesthetics.
The Ampseal series connectors are recognized for their robustness and reliable performance in automotive electrical systems. This model does not include a cord, as it is designed for panel mounting and direct solder termination to PCB boards.
Panel mount with 35 reliable contacts for automotive electrical systems. High-quality materials including fibreglass reinforced housing and gold-plated brass contacts. IP67 and IP69K rated for superior environmental protection.
Wide operating temperature range supports diverse automotive climate conditions. Solder termination type secures strong connection to PCB. Compact with three rows of contacts and natural housing color. This automotive connector suits industrial, automotive manufacturing, and electronic assembly applications requiring durable and reliable electrical interconnections.
Explore more Automotive Connectors and related components in the Electronics & Electricals category at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 125°C.
This connector features 35 contacts, arranged in three rows.
It has an IP67 and IP69K rating, providing protection against dust and high-pressure water ingress.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are brass plated with gold for improved conductivity and corrosion resistance.
The contacts in this connector have a diameter of 1.3mm.
This model uses solder termination, which ensures a reliable electrical connection to PCB boards.
The minimum operating temperature for this connector is -40°C.
The dimensions of the connector are 76.9mm in width, 34.3mm in depth, and 32.1mm in height.
Yes, this connector is specifically designed for automotive use and is suitable for medium density automotive circuitry.
The natural color of the housing aids in visual identification and integration into vehicle panels without affecting design aesthetics.
This connector is male gendered, designed for panel mounting applications.
This connector belongs to the Ampseal series, known for its robust performance in automotive electrical systems.
