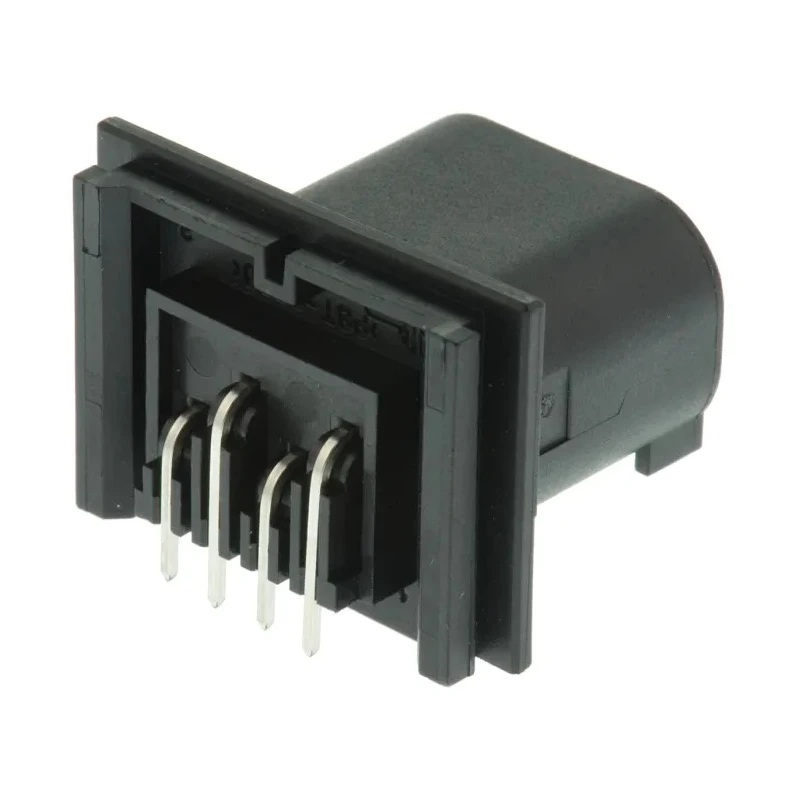

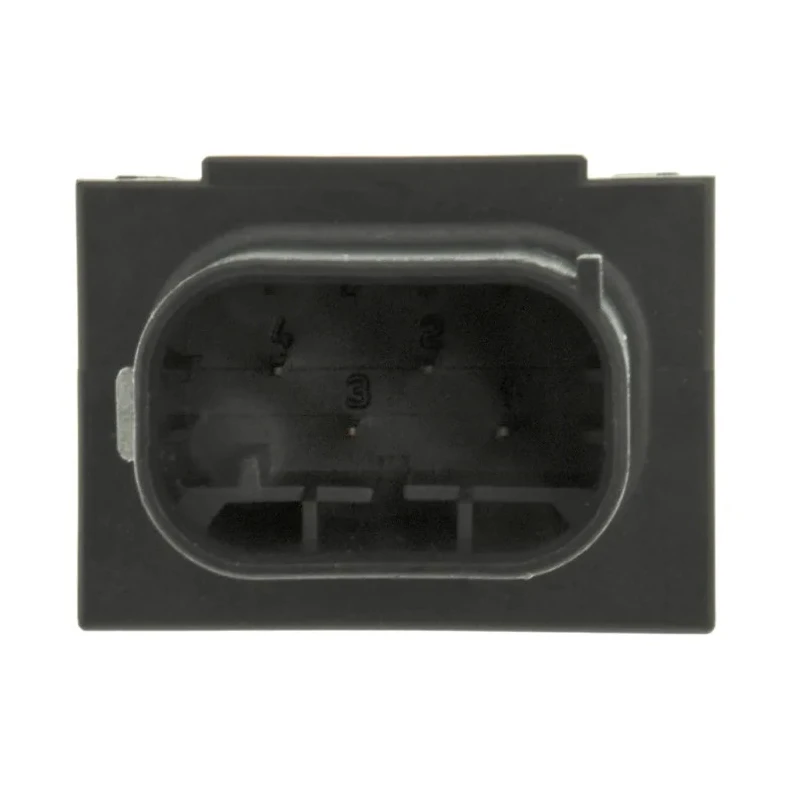

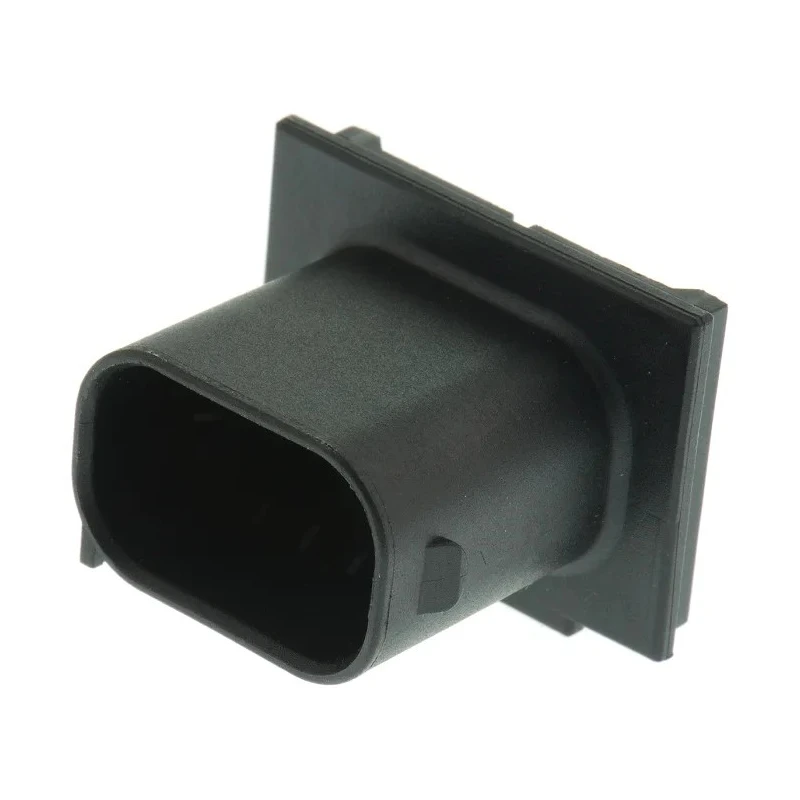

TE Connectivity Micro Quadlok System Automotive Connector Male Black Through Hole 4 Way Solder Termination 1-967657-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 19.7mm |
| Depth | 26.5mm |
| IP Rating | IPx9K |
| Width | 26.8mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | Micro Quadlok System |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Sub Type | Micro Quadlok Interconnection |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 4 |
Key Features
- It features 4 contacts arranged in 2 rows for reliable electrical connection.
- The connector utilizes Micro Quadlok interconnection technology for secure mating.
- Constructed with a polybutylene terephthalate housing and copper alloy contacts plated with tin for durability.
- Rated for IPx9K ingress protection and operating temperature range from -40°C to 120°C.
- Compact dimensions of 26.8mm width, 26.5mm depth, and 19.7mm height allow space-efficient integration.
- It is compliant with EU ELV and EU RoHS standards ensuring environmental safety.
- Designed for through hole mounting with solder termination style for strong mechanical and electrical performance.
- Ideal for automotive electrical connector applications requiring high reliability and durability.
Product Description
TE Connectivity 1-967657-1 Micro Quadlok System Automotive Connector is a male connector in black color that provides a through hole mounting style with solder termination. It has 4 contacts arranged in 2 rows using Micro Quadlok interconnection technology, ensuring secure and reliable electrical connections for automotive applications.
The housing is made from polybutylene terephthalate, a robust thermoplastic material that provides excellent durability and thermal resistance. Copper alloy contacts with tin plating ensure optimal conductivity and corrosion resistance, making it suitable for harsh automotive environments.
This connector is rated with an IPx9K ingress protection rating, which certifies it against high-pressure, high-temperature water jets, enhancing its suitability for rugged industrial and automotive use cases. It operates effectively within a temperature range of -40°C to +120°C, supporting demanding automotive electrical system requirements.
Its compact dimensions of 26.8mm width, 26.5mm depth, and 19.7mm height facilitate easy integration into tight spaces. The connector complies with EU ELV and EU RoHS standards which assure compliance with environmental and safety regulations.
TE Connectivity's Micro Quadlok System connectors are designed for automotive, industrial, and commercial electrical connector applications where performance and reliability are critical. Their solder termination and through hole mount provide enhanced mechanical stability on printed circuit boards.
4 contacts in 2 rows providing suitable current carrying capacity and connectivity. Polybutylene terephthalate housing for mechanical strength and thermal resistance. Copper alloy contacts with tin plating provide excellent conductivity and corrosion resistance.
Rated for IPx9K protection, suitable for harsh environment use. Operating temperature range from -40°C to 120°C allows wide application use. Compliant with EU ELV and EU RoHS for environmental safety. Through hole mounting with solder termination ensures reliable assembly.
This connector is ideal for use in automotive electrical systems requiring robust interconnect solutions. Browse EnvMart's extensive range of Automotive Connectors for related components and TE Connectivity products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 120°C.
This automotive connector has an IPx9K ingress protection rating, making it suitable for high-pressure, high-temperature water jet applications.
The housing is made from polybutylene terephthalate, and the contacts are copper alloy plated with tin for optimal conductivity and corrosion resistance.
This connector features 4 contacts arranged in 2 rows.
This model is designed for through hole mounting with a solder termination style.
The dimensions are 26.8mm in width, 26.5mm in depth, and 19.7mm in height.
Yes, it complies with EU ELV and EU RoHS standards, ensuring environmental safety.
It is ideal for automotive electrical systems requiring high reliability and durability.
The minimum operating temperature for this connector is -40°C.
This connector utilizes Micro Quadlok interconnection technology for secure mating.
This connector is a male type.
The contacts of this connector are plated with tin.
