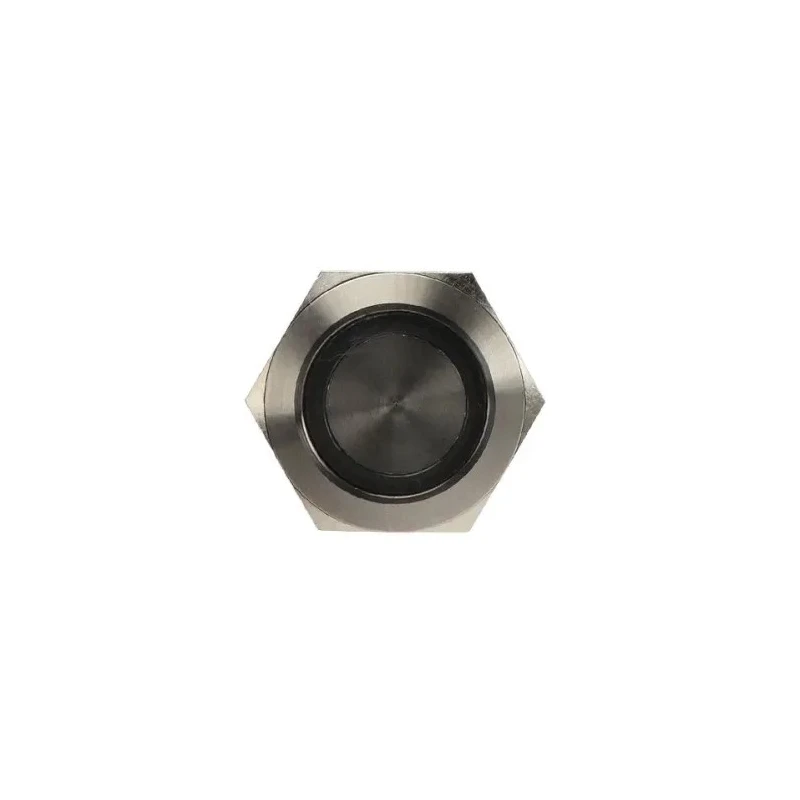

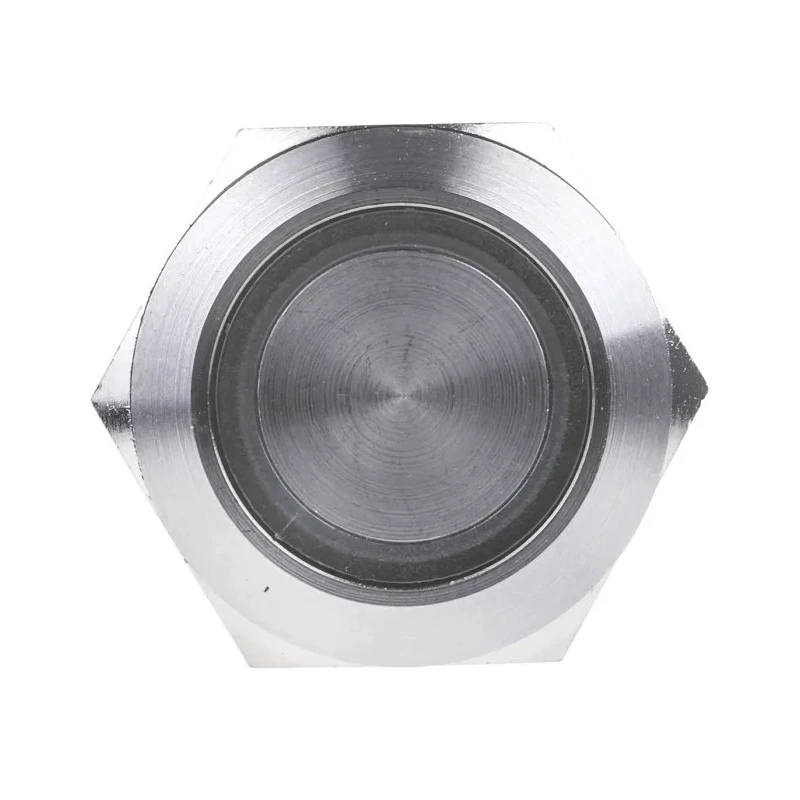

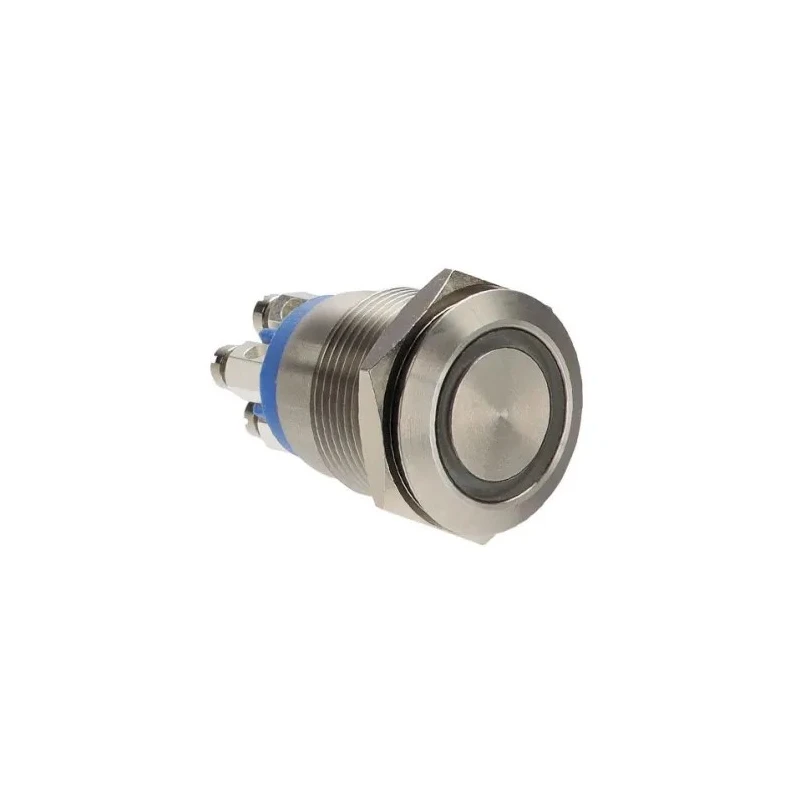

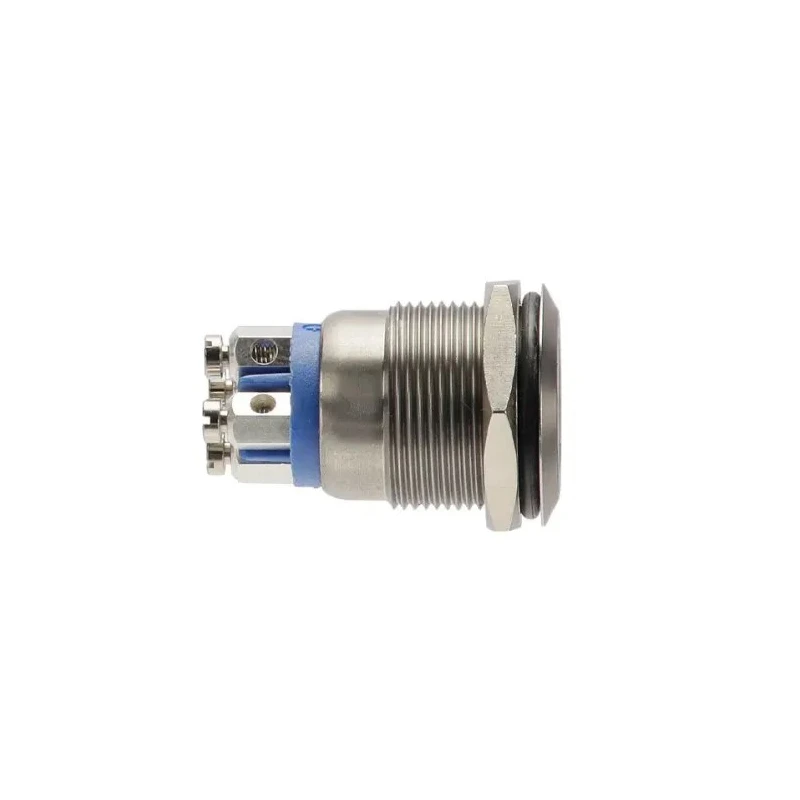

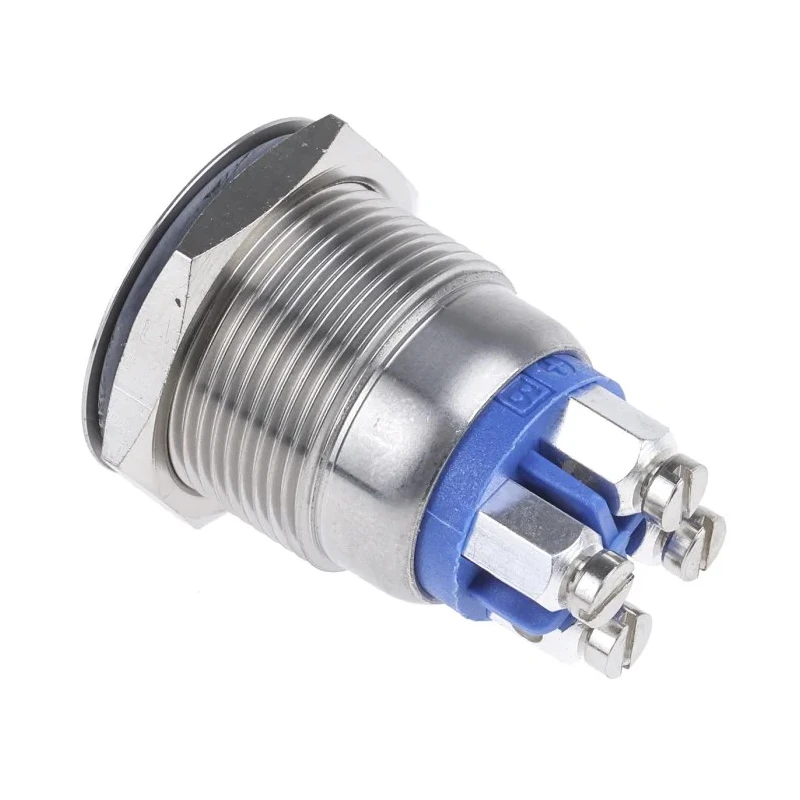

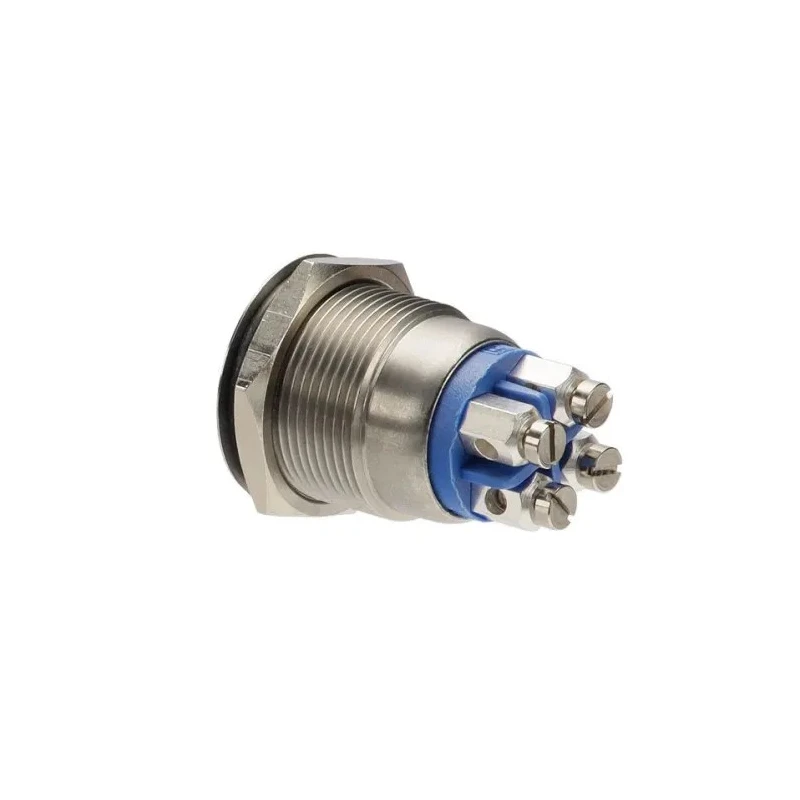

Bulgin Illuminated Push Button Switch Panel Mount 19.2 mm Cutout SPST Momentary Blue LED IP66 24 V DC MPI002

Bulgin MPI002 is an illuminated push button switch designed for panel mounting applications requiring reliable momentary operation. It features a stainless steel body offering durability and vandal resistance, complemented by a blue LED for clear indication of the switch status in low light environments. The switch is configured as SPST (single pole single throw) and supports a 19.2 mm diameter cutout for mounting.

Operating at 24 V DC with a maximum contact current of 50mA, MPI002 ensures consistent performance within a wide temperature range of -30°C to +70°C. The momentary action makes it ideal for temporary control functions such as machinery start and stop.

The switch is rated IP66, providing full protection against dust ingress and powerful water jets, making it suitable for demanding industrial, automation, electrical equipment, and outdoor environments.

Installation is straightforward thanks to the panel mount design and screw terminal connections which secure wiring effectively. The robust construction minimizes maintenance requirements, ensuring long-term reliability in harsh conditions.

Stainless steel construction for durability and vandal resistance. Blue LED illumination enhances operator feedback in low light. Momentary push to make operation for temporary control. Rated IP66 for dust tightness and water resistance.

Single pole single throw (SPST) switch configuration. Operates between -30°C and 70°C for versatile application. 24 V DC contact voltage, max 50mA current rating. Panel mount type with 19.2 mm cutout diameter. Screw terminals for secure electrical connections.

Compliant with RoHS environmental standards.

This switch is well suited for industrial automation control panels, machinery emergency stop buttons, and equipment requiring reliable momentary operation with enhanced environmental protection. Its stainless steel body and illuminated feedback provide both strength and usability in challenging settings.
