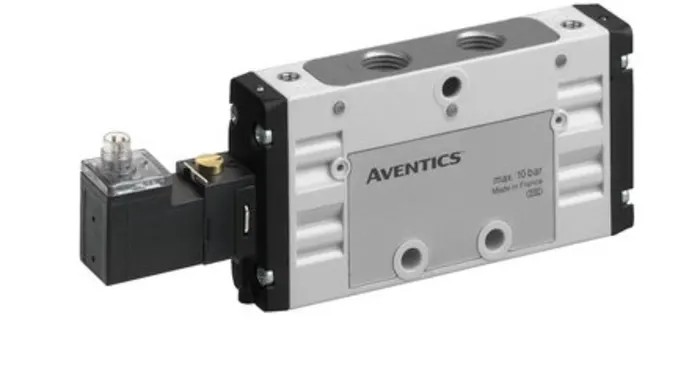

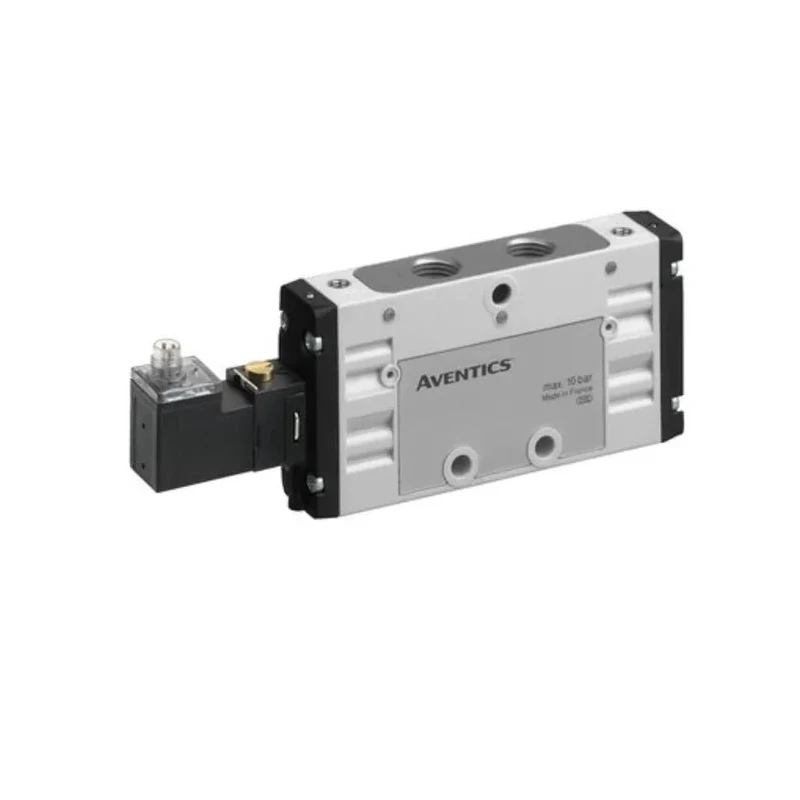

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot/Spring G TC15 Series 1/4 in G Port, 24V DC, 10 bar Max Pressure TC15

EMERSON ? AVENTICS TC15 Pneumatic Solenoid Valve Pilot/Spring G Series is engineered for precise and reliable pneumatic control in industrial applications. Featuring a pilot/spring actuation type and 24V DC voltage, this valve series supports 5/2 spool valve functions with non-overlapping design for efficient air flow management.

The valve body is constructed from fiberglass reinforced polyamide, making it robust and lightweight for manifold strip mounting or standalone installations. With a compact 21 mm wide design, it manages massive flow rates up to 1500 L/min, ideal for high-performance pneumatic systems.

This valve includes 5 ports and 2 positions, ensuring versatile directional control and flexibility for various manufacturing, HVAC, automation, and laboratory pneumatic systems. The seal materials used - Acrylonitrile Butadiene Rubber and Hydrogenated Nitrile Butadiene Rubber - deliver secure sealing and chemical resistance.

Designed to operate within -10°C to 50°C and withstand maximum operating pressures up to 10 bar, the TC15 series ensures durability and reliable service in diverse industrial environments. An M8 3-pin electrical connector with IP65 protection guarantees secure and safe electrical operation.

Additional features include manual override with detent for emergency control and external pilot options supporting vacuum applications. The valve supports a maximum particle size of 5 μm and oil content in compressed air from 0 to 5 mg/m3, making it suitable for clean and precise pneumatic systems.

Compact, durable polyamide glass-fibre reinforced valve body. Supports up to 1500 L/min maximum flow for 5/2 valve function. Manifold strip mount or standalone installation capability. Manual override with detent and M8 3-pin connection.

IP65 protected for harsh industrial conditions. Seal materials suited for chemical resistance and reliability. Wide operating temperature range from -10°C to 50°C. External pilot for vacuum applications and high pilot pressure tolerance.

Designed for maximum air cleanliness and duty cycle 100%.

The EMERSON ? AVENTICS TC15 Pneumatic Solenoid Valve series is ideal for industrial, manufacturing, HVAC, laboratory, and water treatment pneumatic control applications. Its versatile features and robust build quality ensure long-term reliability and performance. Explore more pneumatic valves and accessories in the EnvMart catalog for your industrial needs.
