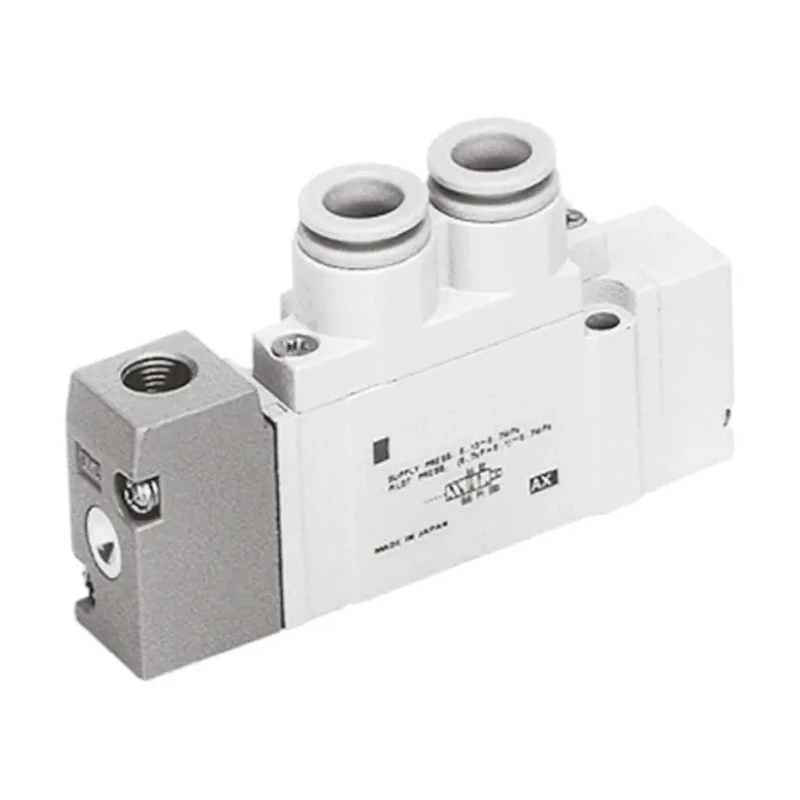

SMC Pneumatic Solenoid Valve Pilot G 1/4 Port Size Aluminium Body Nitrile Rubber Seal SYA7000 Series
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 80mm |
| Length | 97mm |
| Model | SYA7000 |
| Width | 40mm |
| Mount Type | Base |
| Series | SYA7000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Thread Size | 1/4 in |
| Number of Positions | 2 |
| Port Size | G 1/4 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 657NL/min |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0.1MPa |
| Valve Function | NC |
| Port Gender | Female |
Key Features
- Operates with a pilot type actuation ensuring efficient control of pneumatic flow.
- Features a 5-port configuration with female G 1/4 connection thread standard.
- Constructed with high-quality Aluminium body for durability and lightweight performance.
- Capable of withstanding maximum operating pressure of 0.7 MPa and pilot pressure ranging from 0.1 to 0.7 MPa.
- Designed for operating temperatures from -10°C up to 60°C, suitable for various industrial environments.
- Maximum flow rate of 657 NL/min supports high efficiency pneumatic applications.
- Includes a base mount type and non-locking manual override push type for unrestricted mounting orientation.
- Valve function is normally closed (NC) with 2 positions enabling reliable operation.
Product Description
SMC SYA7320-02F Pneumatic Solenoid Valve Pilot G 1/4 Port Size from the SYA7000 Series is designed for advanced pneumatic control applications requiring high flow rates and reduced power consumption.
This valve features a robust Aluminium body combined with Nitrile Rubber (NBR) seals, providing excellent durability and resistance under demanding conditions. The valve supports a maximum operating pressure of 0.7 MPa and a maximum pilot pressure of 0.7 MPa, with a minimum pilot pressure of 0.1 MPa, making it suitable for precise pneumatic control.
Its pilot-operated actuation type ensures smooth operation, with a valve function configured as normally closed (NC). The valve includes a base mount for stable installation and is designed with unrestricted mounting orientation options to meet diverse industrial installation requirements.
The unit is compact and lightweight with dimensions of 80mm height, 97mm length, and 40mm width, making it adaptable to various systems. It operates efficiently within a temperature range from -10°C to 60°C and achieves a maximum flow rate of 657 NL/min, supporting high-throughput pneumatic systems.
Additional features include a non-locking manual override push type for manual control and the use of a G 1/4 female port size with a thread standard of G, ensuring compatibility with standard pneumatic fittings.
This product is manufactured in Japan to high-quality standards and is ideal for industrial pneumatic, manufacturing, automation, and fluid power applications requiring reliable and precise control valves.
Operates with pilot type actuation for efficient flow control. 5-port aluminium body with nitrile rubber seals for durability. Non-locking manual override allows manual operation. Compact size with unrestricted mounting orientation.
Maximum operating pressure of 0.7 MPa and temperature up to 60°C. Designed for industrial pneumatic and automation use cases. Manufactured in Japan ensuring quality and precision. Explore the SMC pneumatic valve series and related industrial valves at EnvMart for all your fluid power and industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 0.7 MPa.
It has a maximum flow rate of 657 NL/min, making it suitable for high-efficiency pneumatic applications.
This model has dimensions of 80mm in height, 97mm in length, and 40mm in width.
This valve uses pilot type actuation for efficient control of pneumatic flow.
It operates efficiently within a temperature range from -10°C to 60°C.
The valve features a G 1/4 female port size with a thread standard of G.
This valve has a total of 5 ports.
The valve function is normally closed (NC), providing reliable operation.
The valve is constructed with an aluminium body and nitrile rubber (NBR) seals for durability.
Yes, it includes a non-locking manual override push type for manual control.
This product is manufactured in Japan, ensuring high-quality standards.
