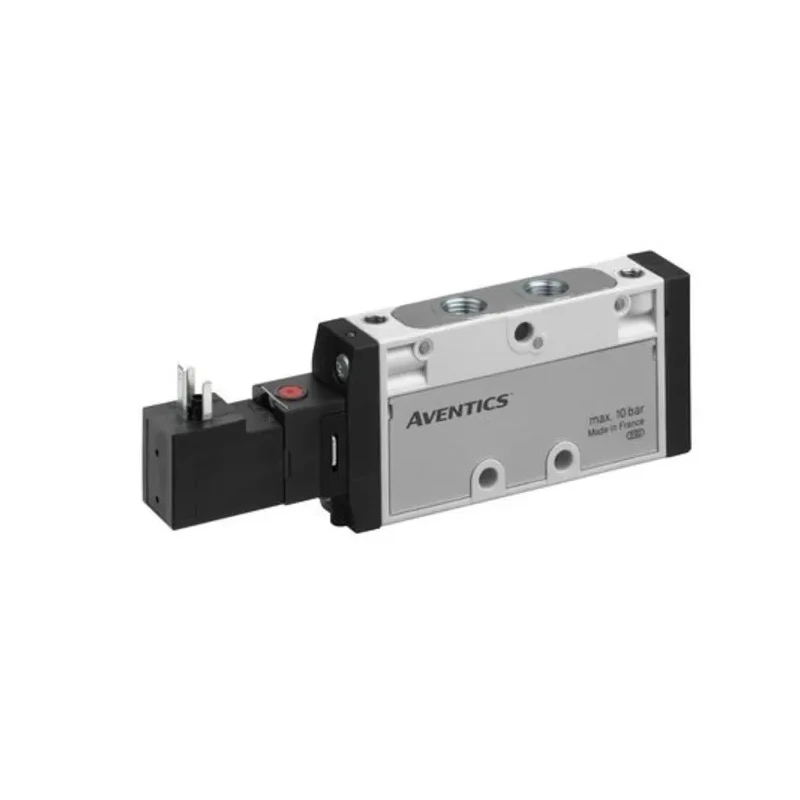

EMERSON ? AVENTICS EMERSON AVENTICS Pneumatic Solenoid Valve 5/2 Port Directional Manifold Strip Mount G 1/8, 24V 0820060026
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? AVENTICS |
| Body Material | Fibreglass, Polyamide |
| Maximum Operating Pressure | 10 bar |
| Mount Type | Manifold Strip |
| Series | TC08 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/8 in |
| Number of Positions | 2 |
| Port Size | 1/8 in G |
| Seal Material | Polyurethane, Acrylonitrile Butadiene Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 800L/min |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 2bar |
| Valve Function | 5/2 |
| ISO 15217 | 2000 |
Key Features
- The valve features pilot actuation suitable for precise control.
- Constructed with fibreglass reinforced polyamide body for durability.
- Seal materials include polyurethane and acrylonitrile butadiene rubber for reliable sealing.
- Operates at a maximum pressure of 10 bar and flow rate up to 800 L/min.
- Designed to function within temperature ranges of -10°C to 50°C.
- Provides a spool valve with non-overlapping 5/2 function and 2 positions.
- Includes manifold strip mount and external pilot options to enable vacuum applications.
- Equipped with manual override with detent for operational flexibility.
Product Description
EMERSON ? AVENTICS 0820060026 Pneumatic Solenoid Valve from the TC08 series is a 5/2 port directional valve designed for manifold strip mounting. It features a durable fibreglass reinforced polyamide body, ensuring robust performance in demanding industrial environments. This valve uses reliable polyurethane and acrylonitrile butadiene rubber seals for optimal sealing capability.
Operating with a solenoid voltage of 24V DC and consuming 2W power, it offers precise pilot actuation. The valve supports a maximum operating pressure of 10 bar and a maximum flow rate of 800 L/min, suitable for varied pneumatic systems requiring efficient flow control.
Engineered with a minimum operating temperature of -10°C and maximum of 50°C, the valve maintains performance across a broad temperature range. The 5/2 spool valve design provides two positions with a non-overlapping function ensuring accurate direction control of compressed air. Manual override with detent functionality adds operational flexibility during maintenance or testing.
The valve also supports an external pilot option, making it adaptable for vacuum applications. It is manifold mount compatible, facilitating compact and modular pneumatic system assemblies. The valve complies with standards for pneumatic valves and is manufactured in France, reflecting quality engineering.
Durable fibreglass reinforced polyamide body for long-lasting service. Polyurethane and acrylonitrile butadiene rubber seals improve seal integrity. Operates at pressures up to 10 bar and flows up to 800 L/min. Pilot actuation with 24V DC and 2W power consumption.
Manual override with detent feature for controlled manual operation. Manifold strip mount design allowing compact pneumatic systems. Suitable for industrial, laboratory, construction, and HVAC pneumatic applications.
This Pneumatic Solenoid Valve is ideal for industrial automation requiring precise air flow management, maintenance of system pressure, and energy-efficient operation. Explore more pneumatic valve options and industrial components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 10 bar.
It has a maximum flow rate of 800 L/min.
This valve uses pilot actuation for precise control.
The valve operates at a voltage of 24V DC.
The body is constructed from fibreglass reinforced polyamide.
It operates within a temperature range of -10°C to 50°C.
This model is designed for manifold strip mounting.
The connection thread size is 1/8 in G.
Yes, it is equipped with a manual override with detent for operational flexibility.
It features a 5/2 spool valve design with two positions and a non-overlapping function.
The seals are made from polyurethane and acrylonitrile butadiene rubber.
Yes, it includes options for external pilot, making it adaptable for vacuum applications.
