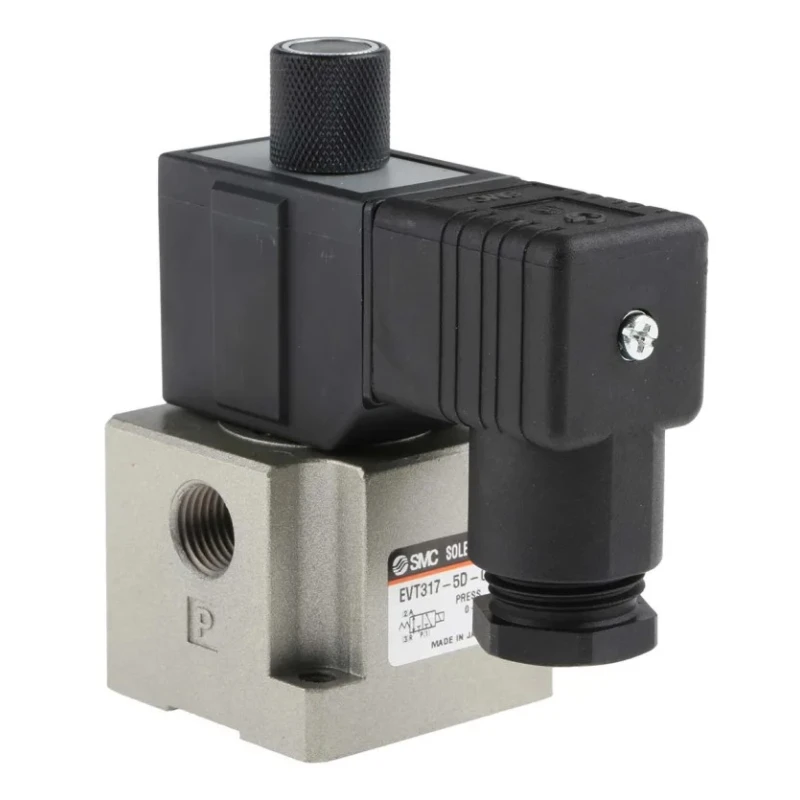

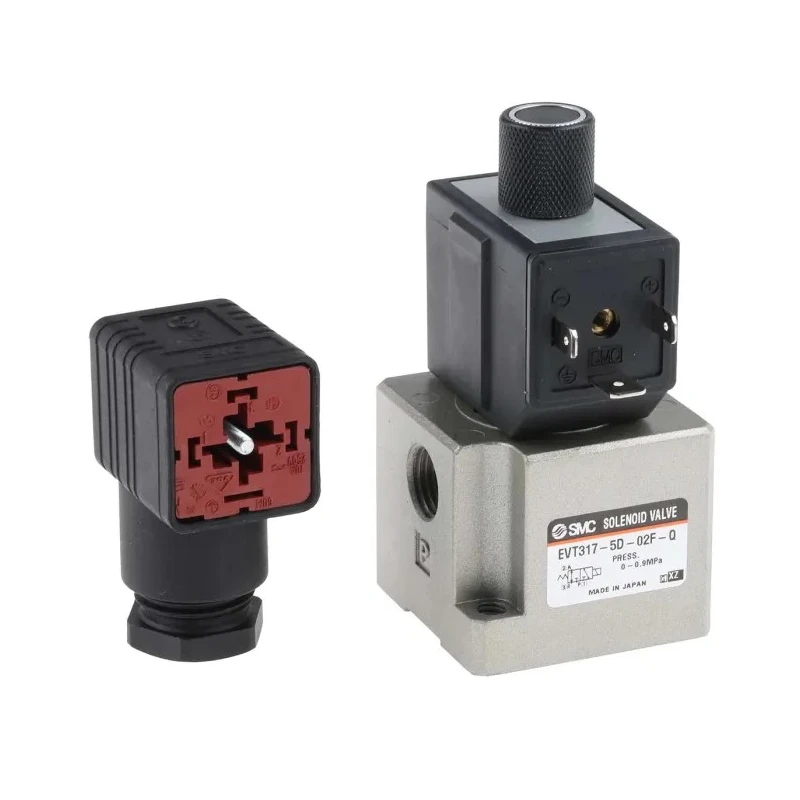

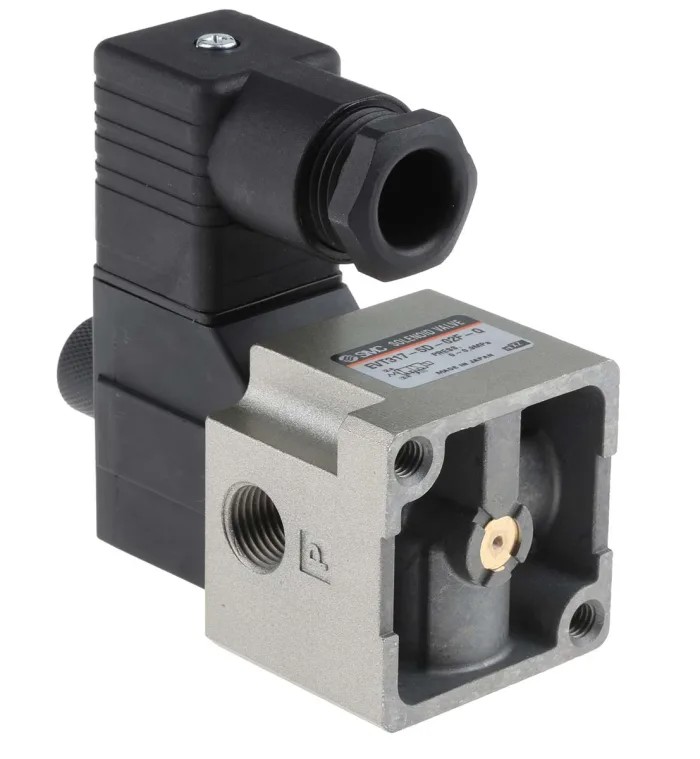

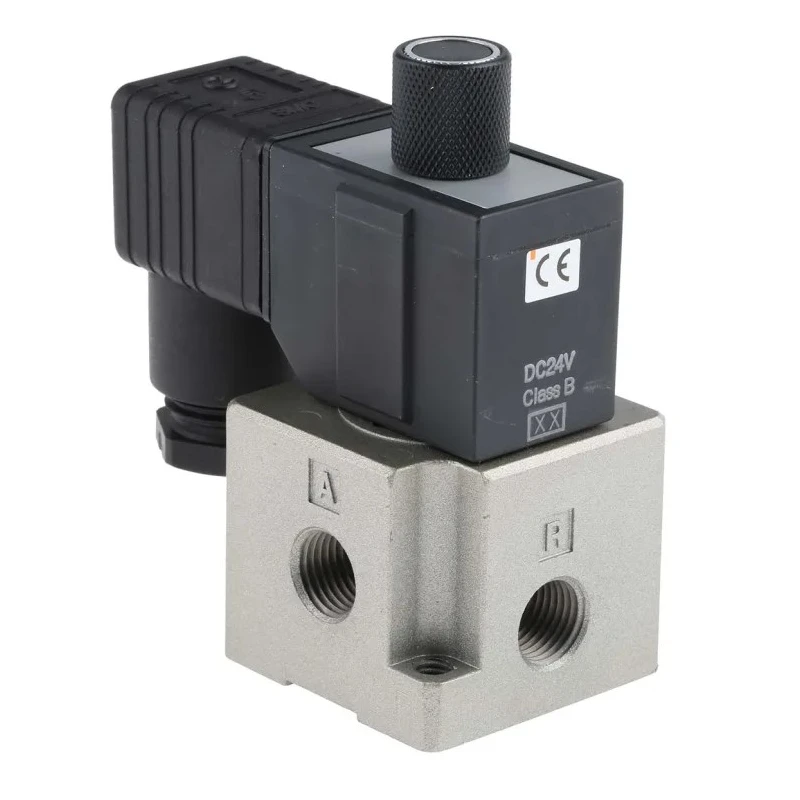

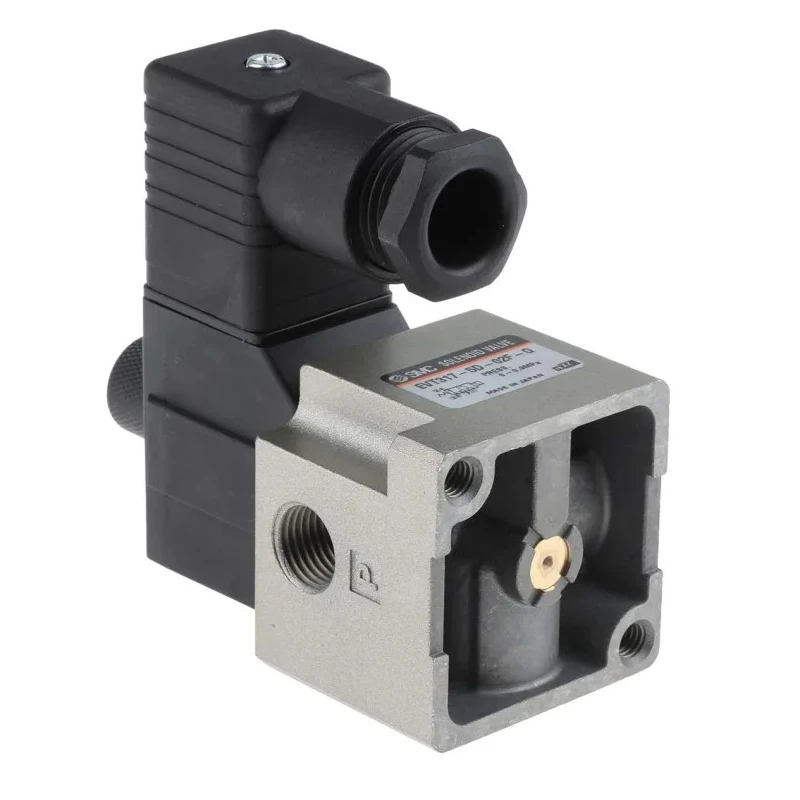

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G VT317 Series 24V DC 6W Die Cast Aluminium Body
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.9 Mpa |
| Height | 89.5mm |
| Length | 45mm |
| Model | VT317 |
| Width | 45mm |
| Mount Type | Stand Alone |
| Series | VT317 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Rubber |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 687.05NL/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0MPa |

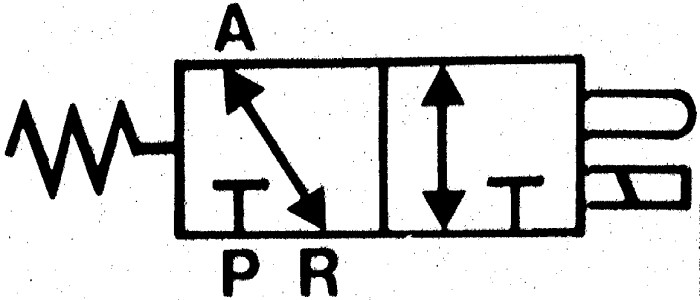

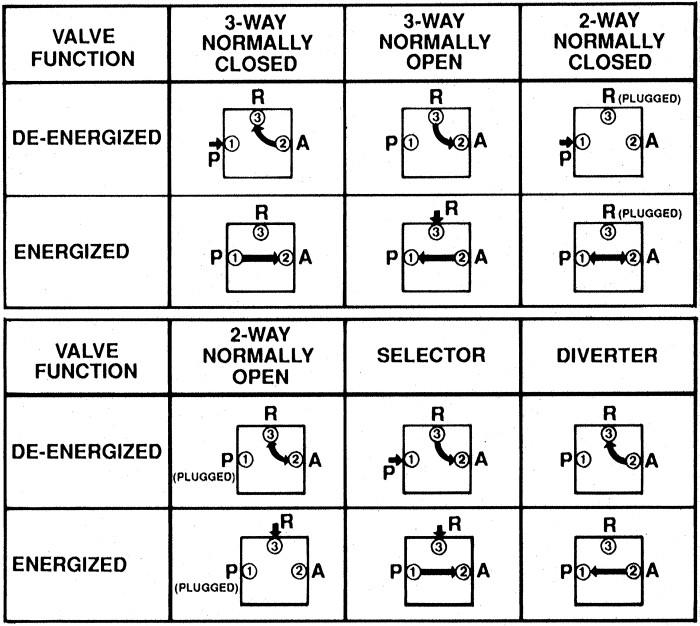

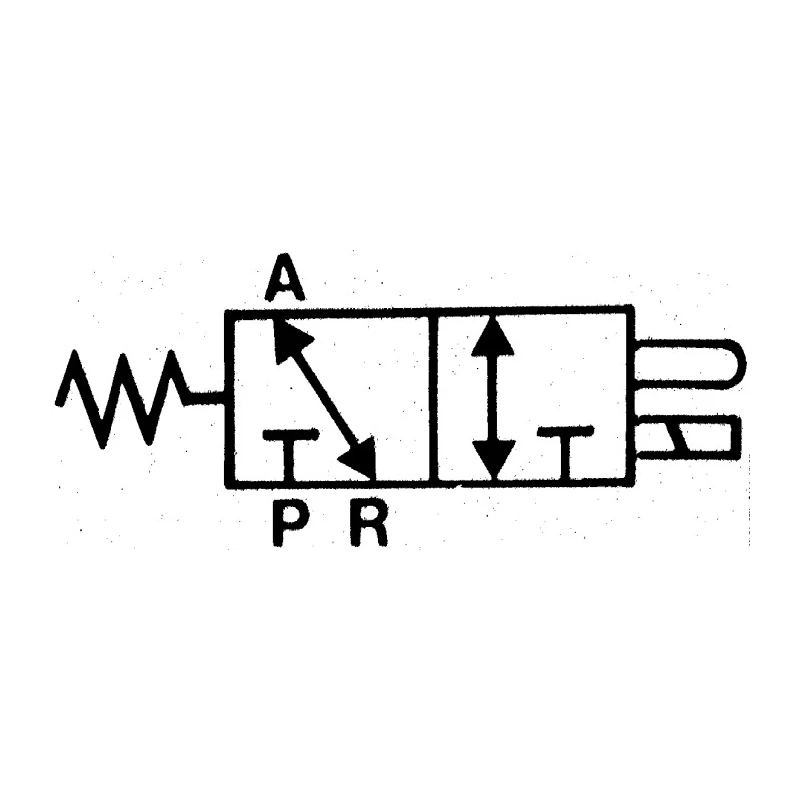

| Valve Function | 3/2 NC |
| Electrical Connection Type | DIN Connector |
| Solenoid Type | Single |
| Solenoid Power Consumption | 6W |
| SMC Pneumatic Control Valve - 3/2 NC Solenoid G VT317 Series 24V dcBrand | SMC |
Key Features

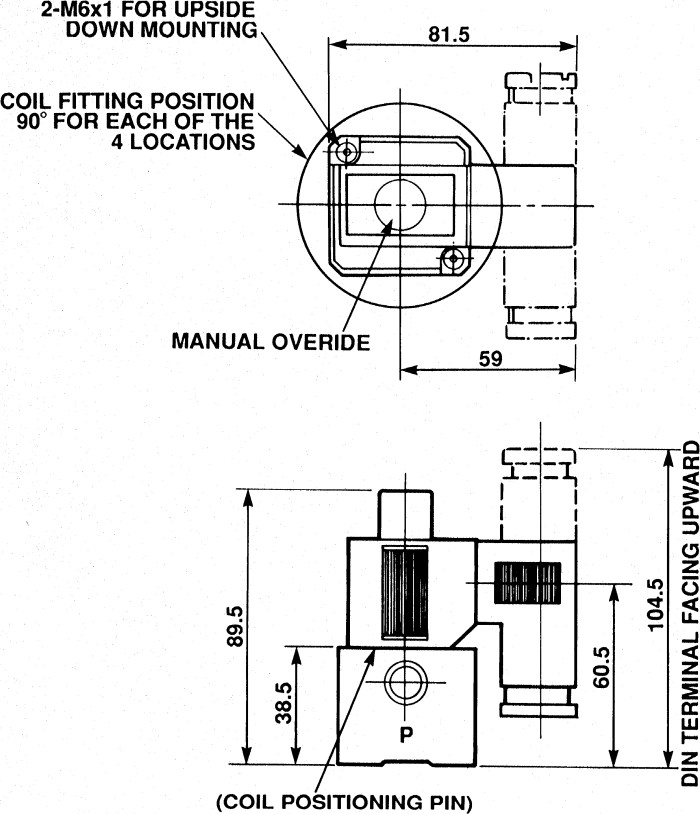

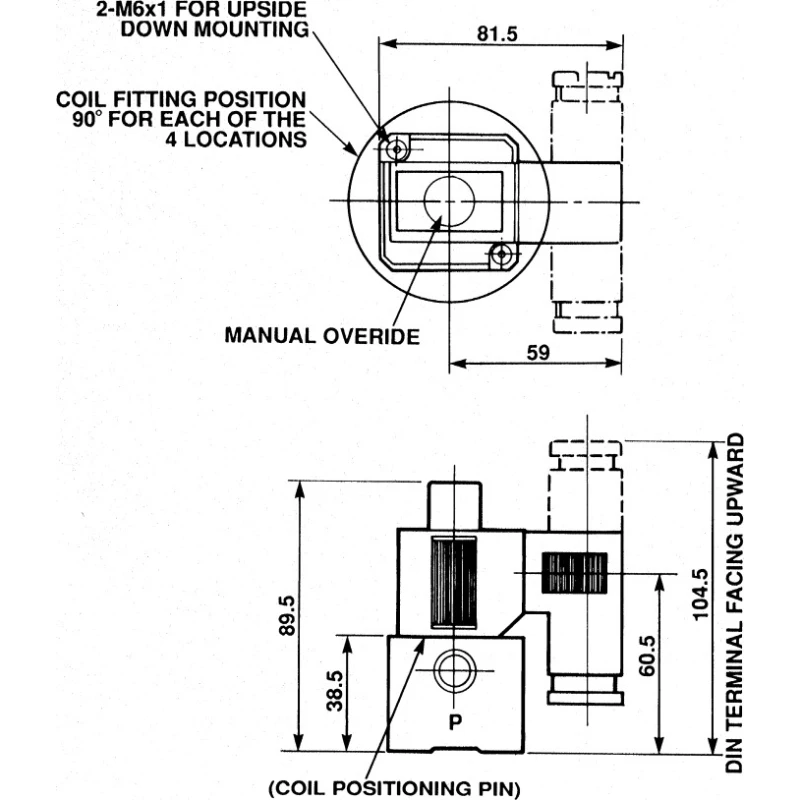

- Compact dimensions of 45 x 89.5 x 45 mm ensure easy installation.

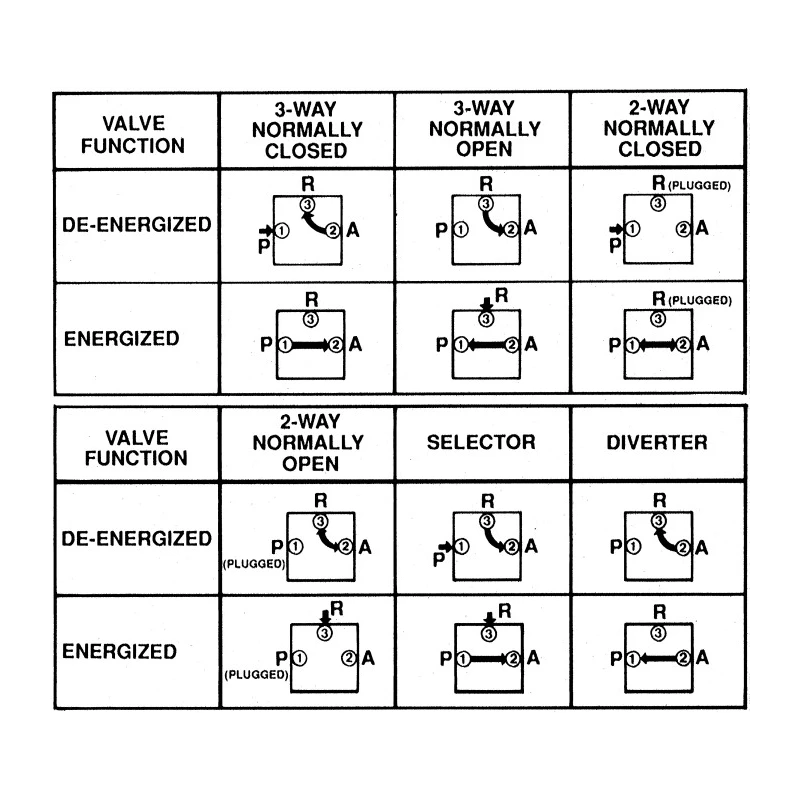

- Designed for 3/2 valve function with normally closed operation.
- Operates safely between 0 to 0.9 MPa pressure range.
- Maximum flow rate of 687.05 NL/min enables efficient pneumatic control.
- Supports ambient operating temperatures from 0 to 50°C ensuring versatile use.
- Equipped with rubber sealing material for leak resistance.
- Single solenoid actuation offers fast switching and reliable control.
- Standard G 1/4 connection thread facilitates compatibility with common pneumatic systems.
Product Description
SMC Pneumatic Solenoid Valve VT317 Series model EVT317-5D-02F-Q is engineered for precise 3/2 normally closed pneumatic control applications. Operating on 24V DC with 6W solenoid power consumption, this valve features a robust die cast aluminium body designed for industrial durability.
The valve offers a compact form factor of 45 mm length, 89.5 mm height, and 45 mm width, optimizing space in automated systems. It supports a maximum operating pressure of up to 0.9 MPa and delivers a high maximum flow rate of 687.05 NL/min, ensuring efficient fluid power operation.
The valve's rubber seal ensures leak-proof functionality while the single solenoid type actuator provides responsive control with quick actuation. Its G 1/4 standard connection thread and DIN electrical connector enable seamless integration into existing pneumatic systems.
Suitable for use in automation and industrial fluid control, the VT317 series valve operates effectively within an ambient temperature range from 0°C to +50°C and a pilot pressure starting at 0 MPa. It complies with RoHS standards and provides reliable performance without hazardous area certification.
Compact dimensions enable installation in confined spaces. 3/2 normally closed valve function suitable for flow control applications. Durable die cast aluminium body construction for long service life. High flow capacity allows efficient pneumatic system performance.
Rubber seal provides secure leak resistance. Standard G port size and DIN electrical connection ensure compatibility. Single solenoid actuation for rapid switching and control responsiveness. RoHS compliant materials maintain environmental safety standards.
This Pneumatic Solenoid Valve is ideal for precise flow control in automated manufacturing, industrial machinery, HVAC systems, and other pneumatic applications where reliable valve actuation and durability are essential. Manufactured in France, it meets high-quality standards for industrial use.
Explore more industrial valves and pneumatic components in the Industrial Supplies category on EnvMart for comprehensive fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.9 MPa.
It has a maximum flow rate of 687.05 NL/min, ensuring efficient pneumatic control.
The valve has compact dimensions of 45 mm in length, 89.5 mm in height, and 45 mm in width.
This unit features a DIN connector for its electrical connection type.
It operates on a voltage of 24V DC with a solenoid power consumption of 6W.
It can operate effectively in ambient temperatures ranging from 0°C to 50°C.
This model functions as a 3/2 normally closed (NC) valve.
The body of this valve is constructed from die cast aluminium.
This valve features three ports.
It is equipped with rubber sealing material for leak resistance.
The minimum pilot pressure required for operation is 0 MPa.
This model is manufactured in France.
