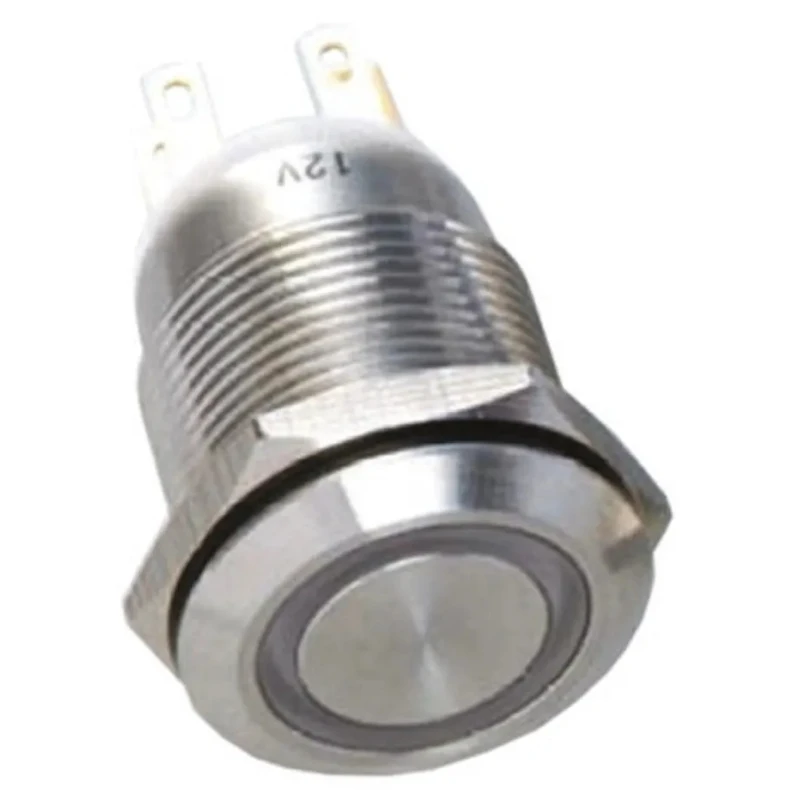

EOZ R Series Illuminated Push Button Switch Panel Mount, Momentary, 19 mm Cutout, DPDT, Green LED, IP65, 250 R19FFSSPAGRG12
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGRG12 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Vandal resistant design with impact resistance to IK09 level.
- IP65 rated for dust tight and protection against water jets.
- Dual pole double throw (DPDT) contact configuration for versatile switching.
- Green LED illumination for clear status indication.
- Operates reliably between -20°C to 55°C temperature range.
- Designed for panel mounting with solder terminal type.
- Switch rated for 5A contact current at 250 V ac.
- Complies with RoHS environmental standards for safe use.
Product Description
The EOZ R19FFSSPAGRG12 R Series Illuminated Push Button Switch is a high-quality panel-mount push button designed for momentary operation in industrial and commercial settings. This switch features a durable silver-colored actuator button with green LED illumination, making it easy to identify its status even in low light conditions. Built for rugged environments, the switch offers vandal resistance compliant with IK09 impact standards, protecting against impacts equivalent to a 5 kg mass dropped from 200 mm.
With a 19 mm panel cutout size, this DPDT (double pole double throw) push button switch is suitable for various control tasks, providing versatile switching capabilities. The solder terminal type ensures reliable electrical connections. The switch is sealed to IP65 standards, offering complete protection against dust ingress and resistance to low-pressure water jets from any direction, thus suitable for exposed or aggressive industrial environments.
This push button switch operates reliably in environments ranging from -20°C to 55°C, with a contact current rating of 5A at 250 V ac. It is RoHS compliant, ensuring reduced environmental impact and adherence to safety standards.
Commonly used in access control systems, machinery and factory equipment, ticket machines, kiosks, vending machines, and other exposed public installations, the EOZ R19FFSSPAGRG12 offers long service life and consistent performance.
Vandal resistant design with IK09 impact protection. IP65 sealing for dust and water jet resistance. Momentary switch operation with DPDT contact configuration. Green LED illumination for visual feedback. Operates within -20°C to 55°C temperature range.
Solder terminal type for secure connections. Rated for 5A contact current at 250 V ac. Complies with RoHS environmental standards. Ideal for industrial, public, and access control applications. Manufactured in France with quality assurance.
Explore more Push Button Switches and components in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a dual pole double throw (DPDT) contact configuration, allowing for versatile switching capabilities.
This model has an IP65 rating, providing complete protection against dust ingress and resistance to low-pressure water jets from any direction.
It operates reliably within a temperature range of -20°C to 55°C.
The switch is rated for a contact current of 5A at 250V AC.
This model is designed for panel mounting, making it suitable for various control applications.
It features solder terminals, ensuring secure and reliable electrical connections.
The switch is equipped with green LED illumination for clear status indication, even in low light conditions.
The actuator is a silver-colored button, designed for easy identification and use.
Yes, it complies with RoHS environmental standards, ensuring reduced environmental impact and adherence to safety regulations.
It is commonly used in access control systems, machinery and factory equipment, ticket machines, kiosks, vending machines, and other exposed public installations.
The switch has an IK09 impact protection rating, which indicates its resistance to impacts equivalent to a 5 kg mass dropped from 200 mm.
This model is manufactured in France, ensuring quality assurance in its production.
