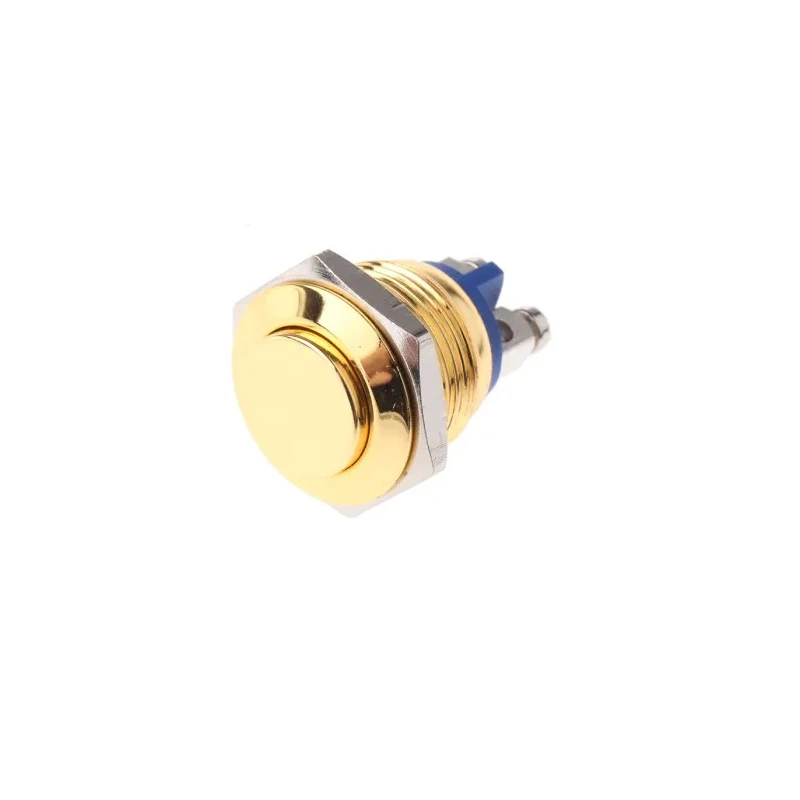

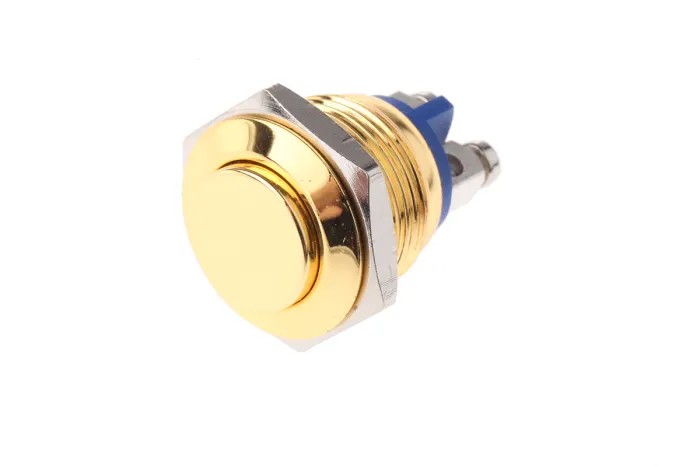

EOZ R Series Panel Mount Momentary Push Button Switch 16.2 mm Cutout, SPST, IP65, 48 V dc 250 V ac R16FRGSTAG



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Model	R16FRGSTAG
IP Rating	IP65
Mount Type	Panel
Series	R
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Switch Configuration	Momentary
Minimum Operating Temperature	-20°C
Panel Cutout Size	16.2 mm
Terminal type	Screw
Standards/Approvals	RoHS
Switch Operation	Momentary
Contact DC Voltage	48V dc
Actuator Style	Button
Switch Contact Current	2A
Contact AC Voltage	250V ac

Key Features

This push button switch is designed for momentary operation.
It has a panel cutout size of 16.2 mm suitable for secure mounting.
The switch provides a single pole single throw (SPST) contact configuration.
It supports contact voltages of 48 V dc and 250 V ac.
The terminal type is screw for reliable electrical connections.
The switch is sealed to IP65, providing protection against dust and low-pressure water jets.
It is constructed to resist vandalism with IK08 impact resistance compliant to 5 joules.
Operates within a temperature range of -20°C to 55°C.

Product Description

The EOZ R16FRGSTAG is a high-quality momentary push button switch from the R Series designed for panel mounting with a 16.2 mm cutout diameter. It is designed to provide robust and reliable switching performance in industrial, automation, and public use environments.

This push button switch features a single pole single throw (SPST) configuration with momentary operation mode, suitable for control panels requiring temporary contact activation. The switch terminals use screws for secure wiring connections, ensuring durability and easy installation.

It offers excellent electrical ratings up to 48 V dc and 250 V ac, supporting various control voltages commonly used in industrial and machinery applications. The IP65 rating makes it dust-tight and protected against water jets, making it ideal for exposed or harsh environmental conditions including outdoor public kiosks, access control systems, and factory equipment.

The R Series push button is vandal resistant with an impact protection rating of IK08 against impacts equivalent to a 1.7 kg mass dropped from 300 mm height. This robust construction ensures longevity in public and industrial areas prone to mechanical abuse.

Designed to operate within a temperature range from -20°C to +55°C, this switch provides reliable performance across varying climates and industrial environments. It is RoHS certified, supporting environmental compliance standards.

This push button switch is designed for momentary operation. It supports a panel cutout size of 16.2 mm for easy mounting. SPST contact configuration ensures simplicity and reliability. Screw terminal type offers dependable wire termination.

IP65 rating guarantees protection against dust ingress and water jets. IK08 rated vandal resistance safeguards against mechanical impact. RoHS compliance assures environmentally friendly materials and production. Wide operating temperature range from -20°C to 55°C.

Suitable for access control, machinery, kiosks, vending machines, and public environments. Compact design with high durability for industrial use.

This EOZ push button switch is a reliable choice for industries requiring robust, vandal-resistant momentary switches with protective sealing and solid electrical performance. Browse EnvMart's extensive range of Push Button Switches and electrical components to find compatible accessories and complementary products.
