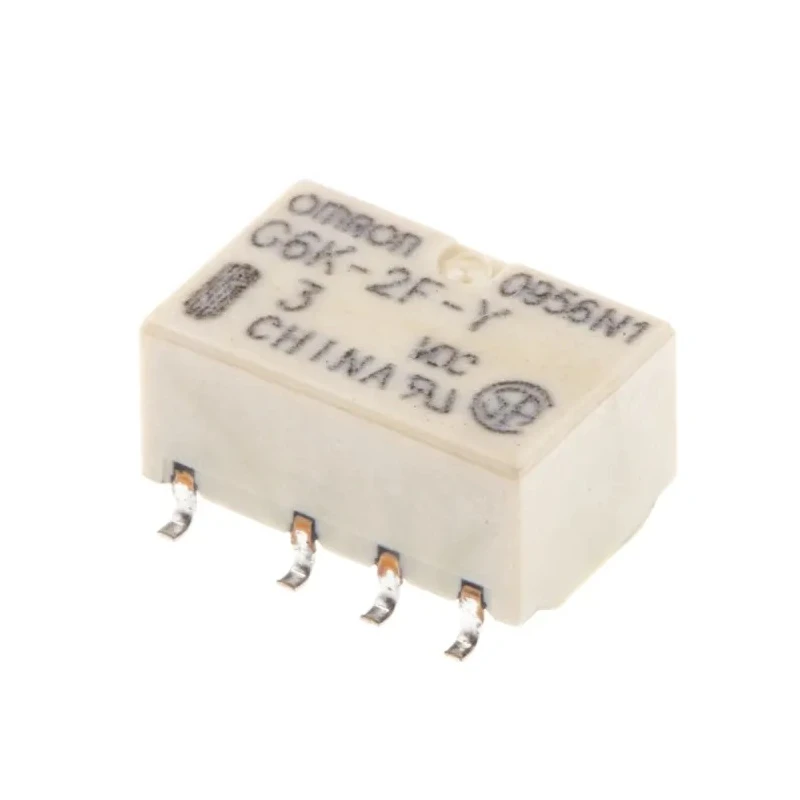

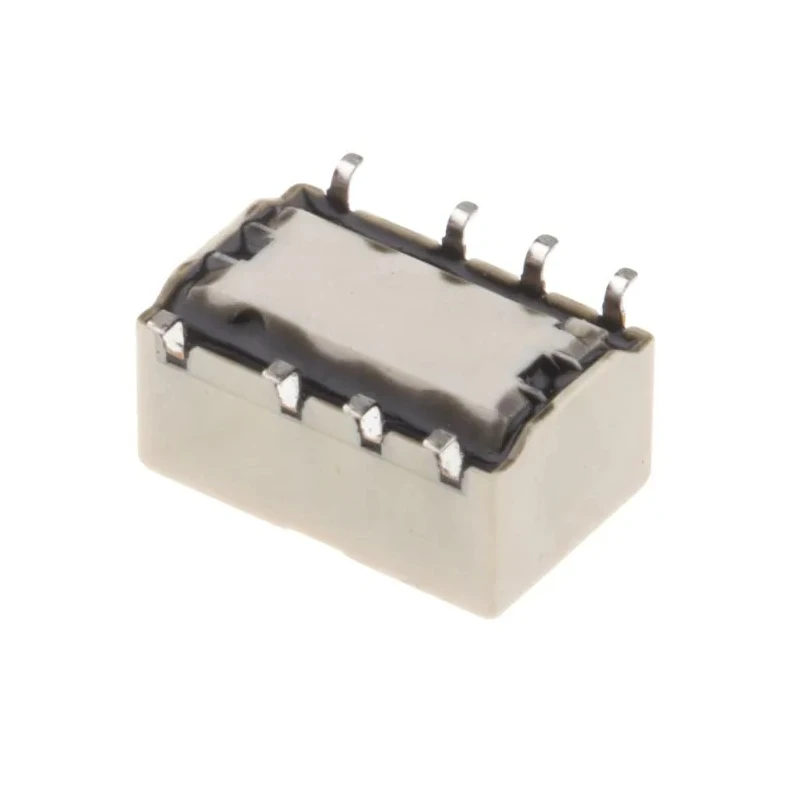

Omron Surface Mount Signal Relay, 3V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2F-Y DC3

Omron G6K-2F-Y DC3 surface mount signal relay is engineered for precise control in electronic and automation systems. Featuring a 3V DC coil, this relay employs a DPDT contact configuration, allowing it to switch multiple circuit paths efficiently with a switching current rating of 1 ampere.

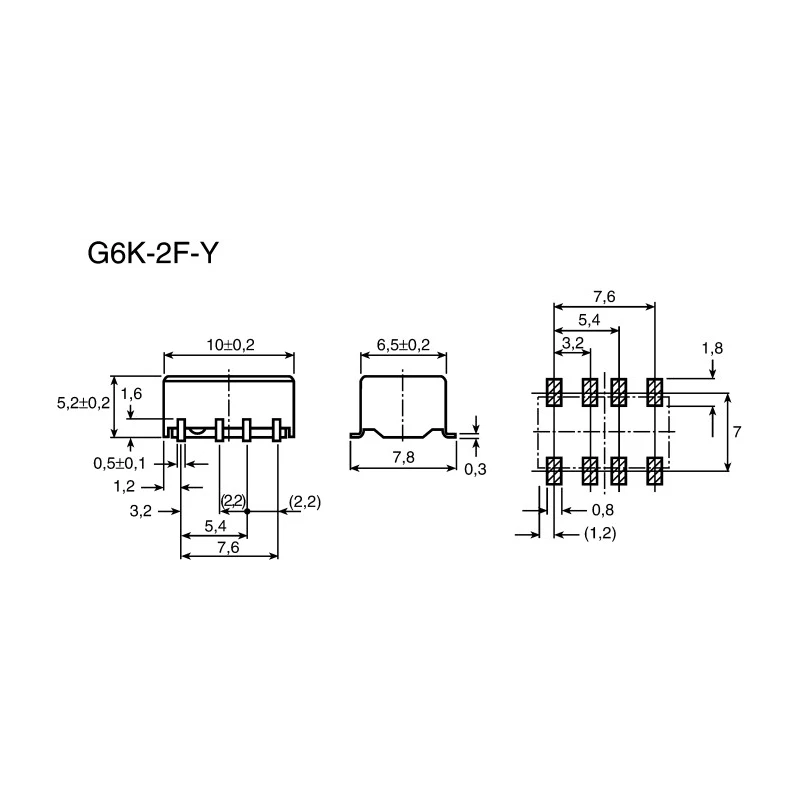

Its low profile subminiature design with dimensions of 5.2 mm height, 6.5 mm width, and 10 mm length allows integration in compact PCB layouts. The relay is fully sealed, offering protection against environmental factors, and operates reliably between -40°C and 70°C.

Gold plated contact materials ensure excellent conductivity and durability, reducing contact resistance and improving long-term performance. The coil power consumption is minimized to 100mW, which supports energy-efficient circuit designs.

The surface mount terminal type incorporates a unique structure that optimizes infrared irradiation during soldering, resulting in strong and reliable joints. The G6K-2F-Y DC3 model conforms to industry standards including RoHS compliance, FCC Part 68, and Bellcore specifications, ensuring safe and interference-free operation.

This relay is ideal for use in industrial controls, laboratory instrumentation, HVAC equipment, manufacturing automation, and other commercial electrical signal conditioning applications requiring dependable signal switching in a small footprint.

The relay supports a switching current of 1 ampere for controlling devices. It operates within a temperature range from -40°C to 70°C ensuring reliability in various environments. The compact relay measures 5.2mm in height, 6.5mm in width, and 10mm in length for space-saving installations.

Gold plated contacts enhance corrosion resistance and ensure long-term signal integrity. Low coil power consumption of approximately 100mW reduces energy usage in electronic circuits. The surface mount design facilitates high infrared irradiation efficiency for excellent solderability.

It complies with RoHS standards and meets FCC and Bellcore specifications for electrical safety and interference. Suitable for industrial, automation, and electrical applications requiring compact, efficient Signal Relays.
