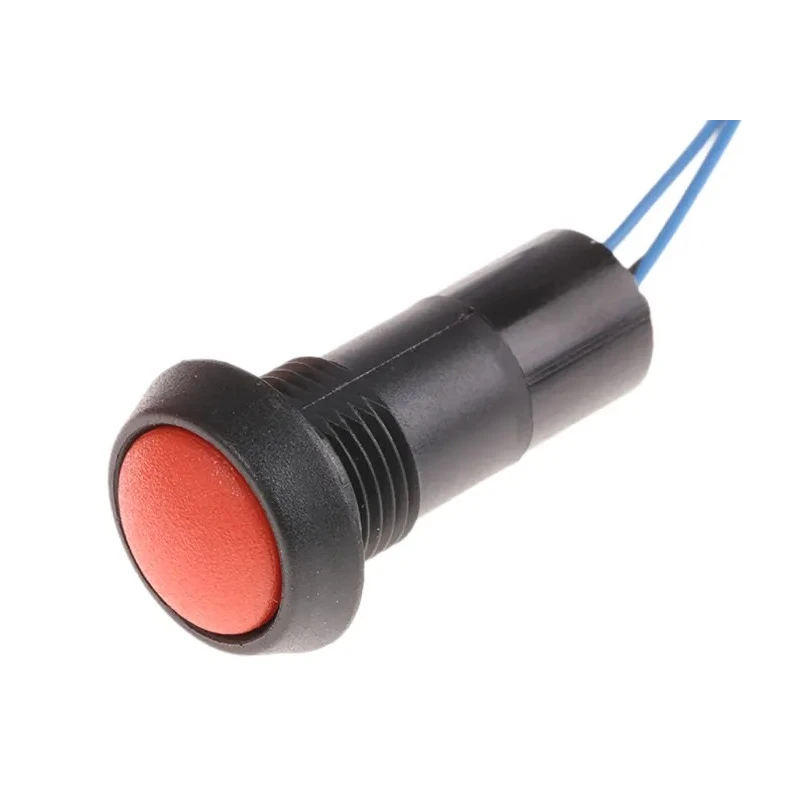

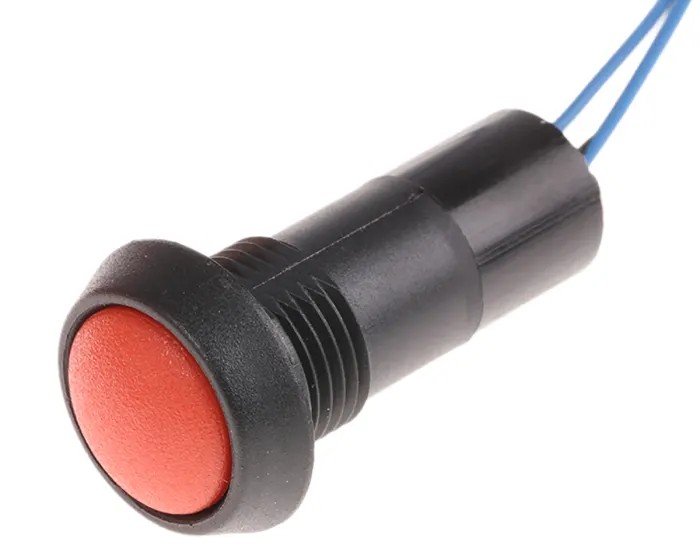

ITW Switches 59 Series Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-532

ITW Switches 59-532 is a miniature sealed pushbutton switch designed for panel mounting with a compact 13.6 mm cutout. It operates momentarily with a single-pole, single-throw (SPST) on-off configuration, making it suitable for precise control tasks across various industrial sectors.

This switch is panel sealed to IP67, providing total protection against dust ingress and resistance to temporary immersion in water at depths between 15 cm and 1 meter for up to 30 minutes. Its rugged design ensures high impact resistance, suitable for harsh and environmentally demanding applications such as communications equipment, military hardware, instrumentation, and mass transport control systems.

The actuator is a red button with clear LED illumination, delivering clear status indication without colored LEDs. The switch accommodates wire terminal connections and operates safely under both AC and DC voltages up to 125V at currents up to 400mA.

With an operating temperature range from -40°C to 105°C, the switch ensures reliable functionality in extreme thermal environments. The gold contacts guarantee low contact resistance and corrosion resistance, while the choice of non-spark zinc alloy or durable polybutylene terephthalate (PBT) body material makes this product suitable for environments requiring non-sparking materials.

This miniature push button switch's compact size and robust specification make it ideal for industrial, laboratory, HVAC, military, and transportation use cases where reliable momentary switches are required.

Compact miniature switch with a 13.6 mm panel cutout for easy installation. Momentary on-off switch operation ensures precise control in demanding applications. Clear LED illumination enhances visibility without color illumination.

Robust construction offers high impact resistance and IP67 protection against dust and water immersion. Compatible with 125 V AC/DC voltage and supports up to 400mA contact current. Operates reliably within a wide temperature range from -40°C to 105°C.

Gold contacts and non-spark zinc alloy or PBT body material ensure durability and safety. Ideal for rugged industrial, military, communications, instrumentation, and mass transport control environments. Explore more products in the Push Button Switch category for demanding electrical and automation applications on EnvMart.
