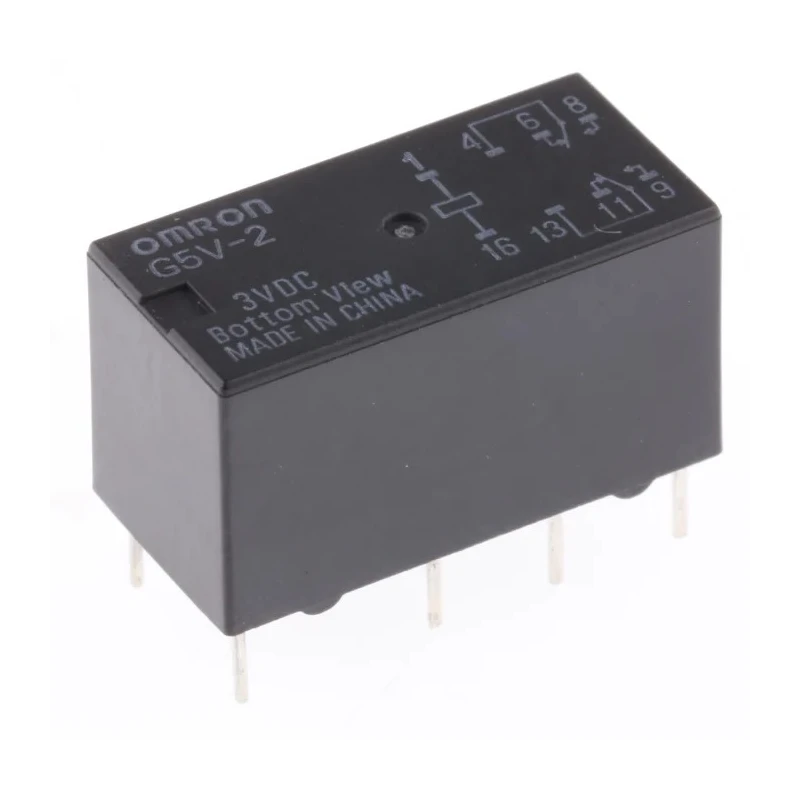

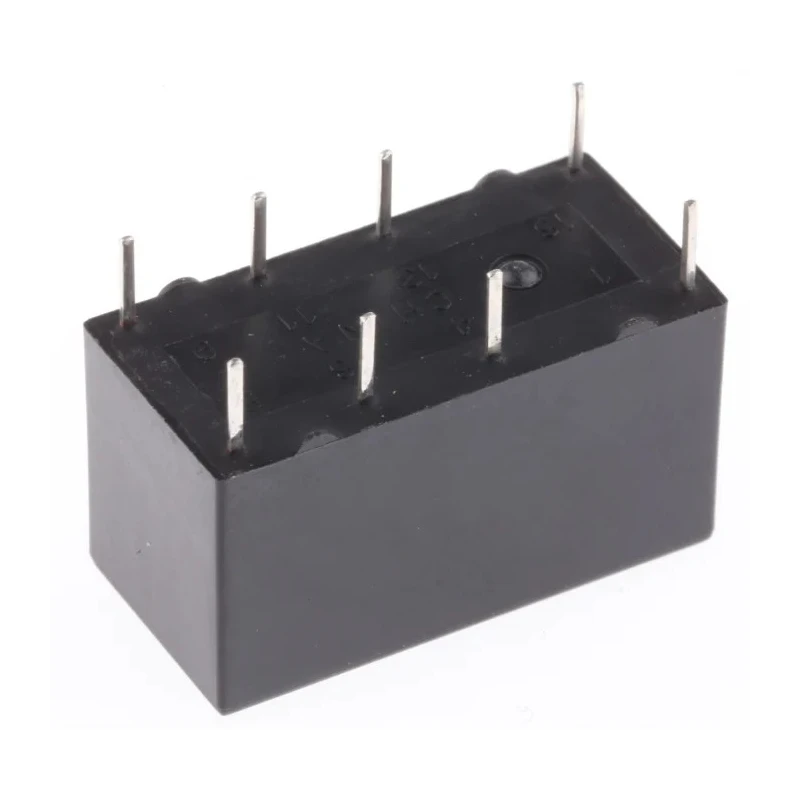

Omron PCB Signal Relay 3V dc Coil 2A DPDT G5V-2 3DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20.2mm |
| Model | G5V-2 3DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | MT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 60Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 500mW |
Key Features
- Fully sealed relay designed for PCB mounting with through-hole terminals.
- Coil resistance of 60Ω and coil power consumption of 500mW.
- Contact material is gold plated for reliable electrical performance.
- Operates within temperature range of -25°C to 70°C suitable for various industrial environments.

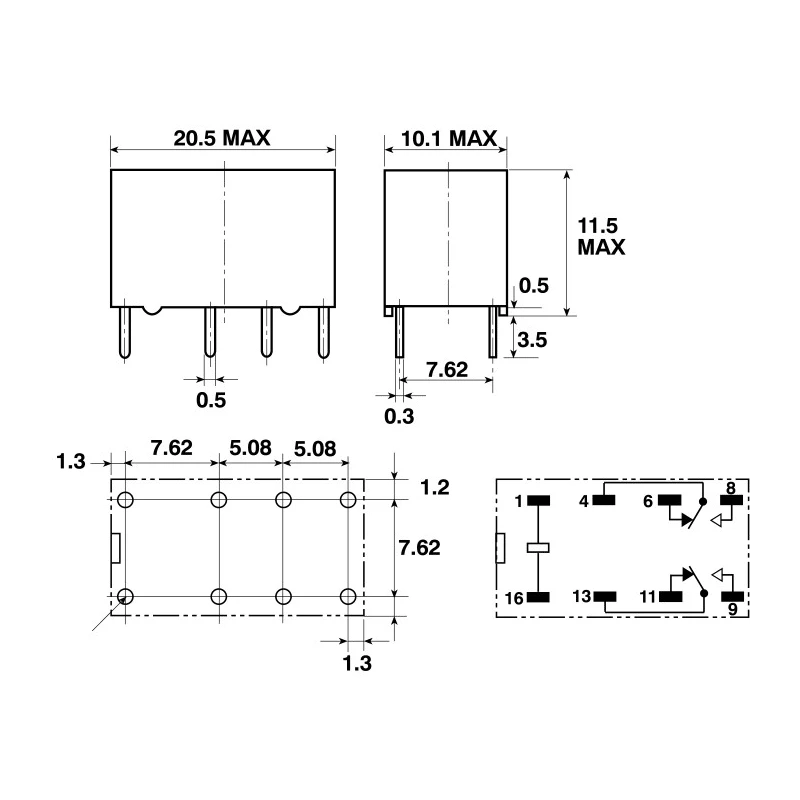

- Compact dimensions of 20.2mm length, 10mm width, and 11mm height allow easy integration.
- Meets RoHS compliance and international standards including UL and CSA.
- Ideal for immersion cleaning due to being fully sealed per BT Type 47 requirements.
- Switching AC and DC voltage rated up to 125V.
Product Description
Omron G5V-2 3DC PCB Signal Relay is a high-quality Signal Relay designed for precise switching in electronic applications. Featuring a 3V DC coil voltage and a switching current of 2A, this relay provides double-pole double-throw (DPDT) contact configuration which allows effective control of multiple circuits.
Constructed to be fully sealed for immersion cleaning, it conformsto BT Type 47 requirements and BT specification 4597, making it suitable for demanding industrial environments including automation, instrumentation, and signal conditioning systems.
The relay's compact size (20.2mm length x 10mm width x 11mm height) and through-hole PCB mount type terminals ensure easy integration on printed circuit boards. Its coil resistance is 60Ω, consuming only 500mW coil power, making it energy efficient.
Gold plated contacts provide excellent conductivity and durability. The relay supports switching voltages up to 125V AC and DC, and its operating temperature range from -25°C to 70°C enables reliable performance across diverse conditions.
Certified for standards including RoHS, UL, and CSA and compliant with FCC part 68, this relay guarantees safety and regulatory adherence. Fully sealed for immersion cleaning and industrial use. DPDT contact configuration for dual circuit control.
Compact PCB mounting with through-hole terminals. Gold plated contacts for superior conductivity. Wide operating temperature range from -25°C to 70°C. Low coil power consumption of 500mW with 60Ω coil resistance. Switching voltage rated at 125V AC and DC.
RoHS compliant and internationally certified. Manufactured in China ensuring quality production. Ideal for automation, electronics, and signal conditioning applications. Explore our Electronics & Electricals category for a wide range of relays and contactors from top brands like Omron on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 3V DC.
It supports a maximum switching current of 2A.
The relay has compact dimensions of 20.2mm in length, 10mm in width, and 11mm in height.
It features a double-pole double-throw (DPDT) contact configuration.
The operating temperature range is from -25°C to 70°C.
The coil resistance is 60Ω.
The coil power consumption is 500mW.
This model is designed for PCB mounting with through-hole terminals.
It can switch voltages up to 125V AC and 125V DC.
Yes, it is RoHS compliant and meets international standards including UL and CSA.
The contacts are made from gold plated material for reliable electrical performance.
It is suitable for various applications including automation, instrumentation, and signal conditioning systems.
