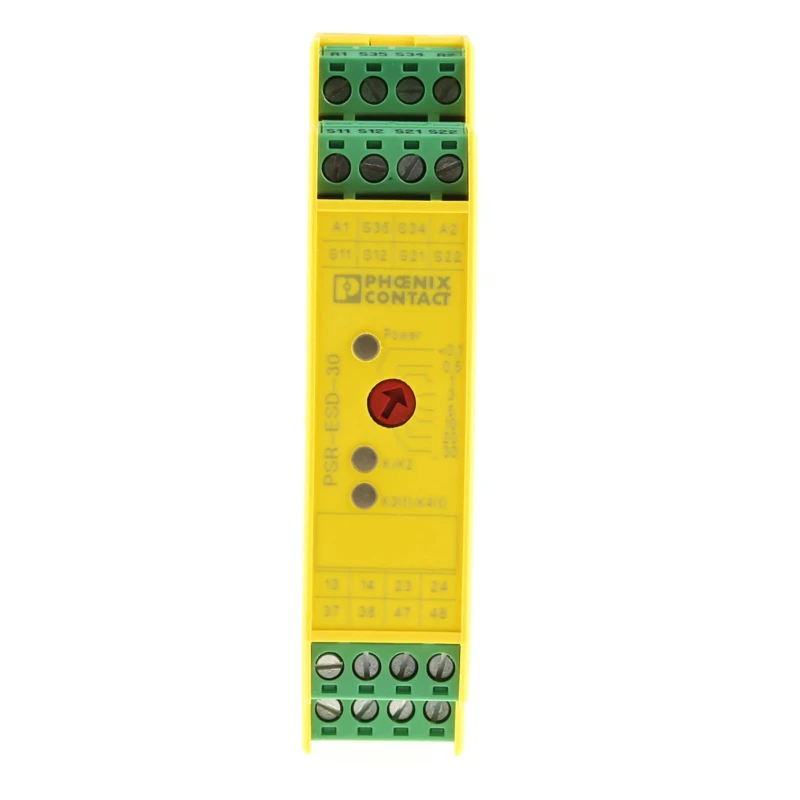

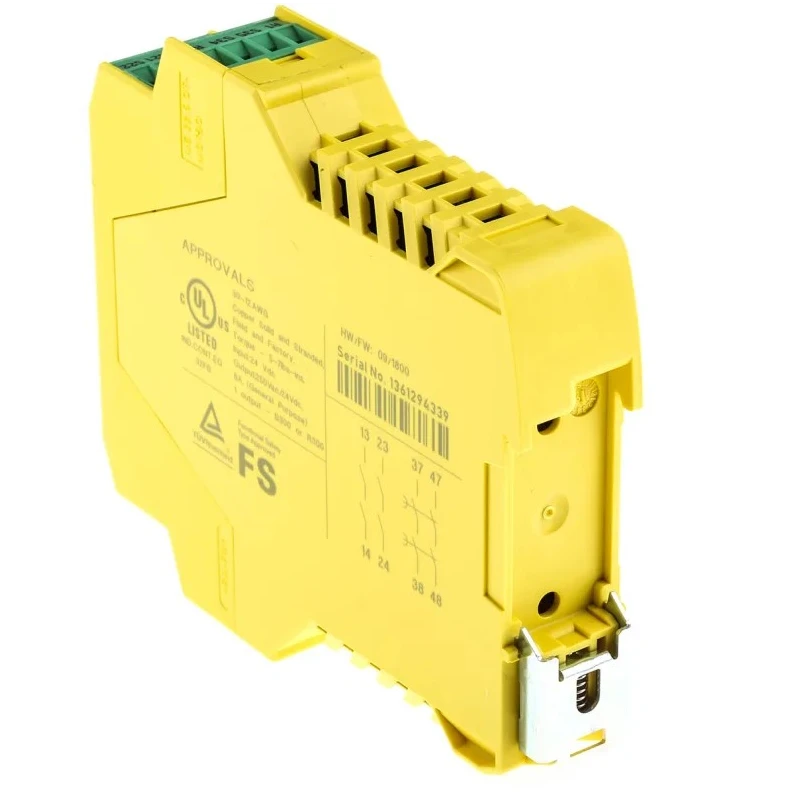

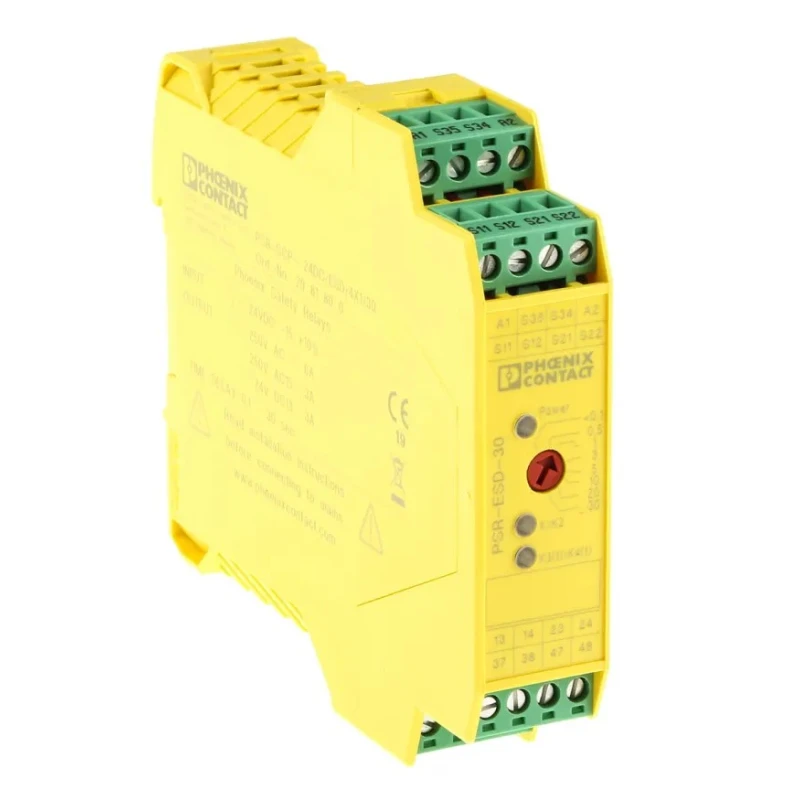

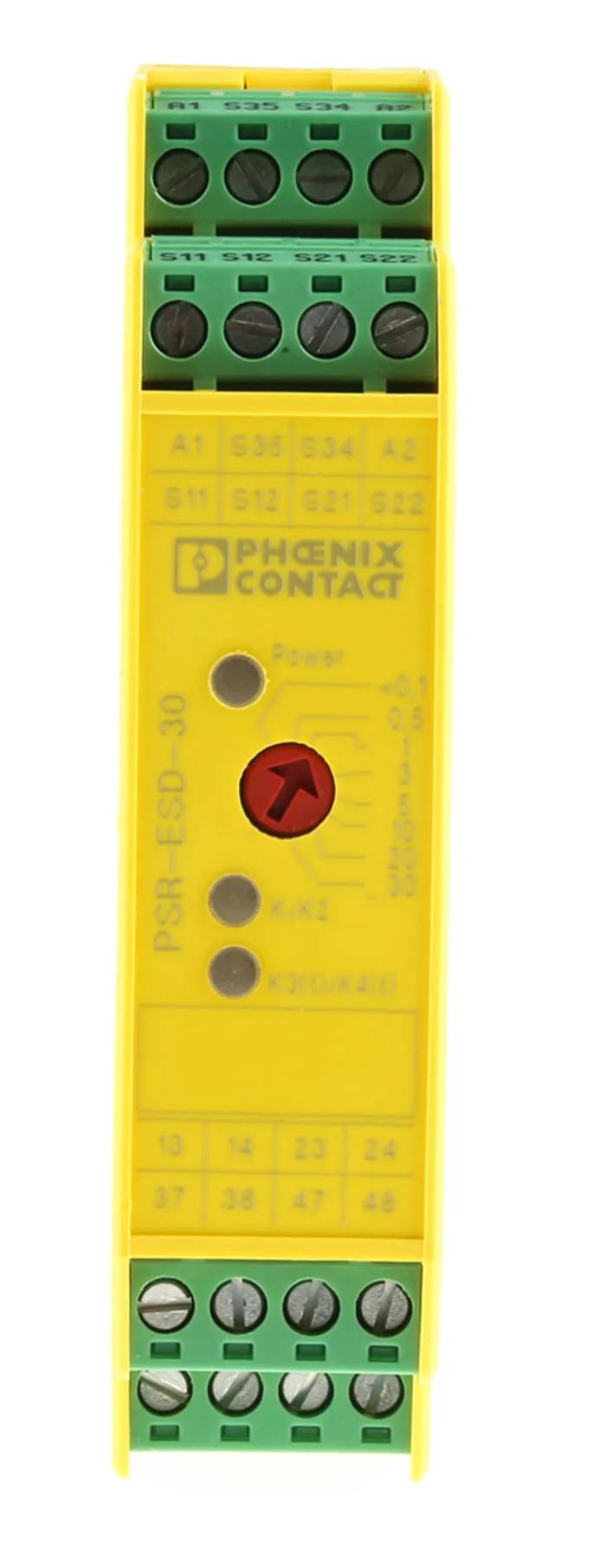

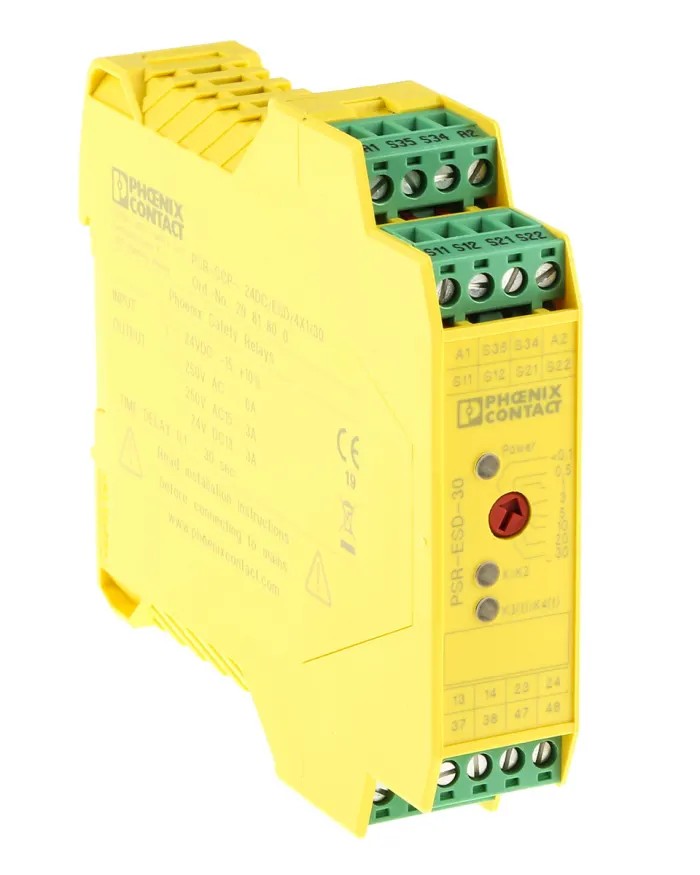

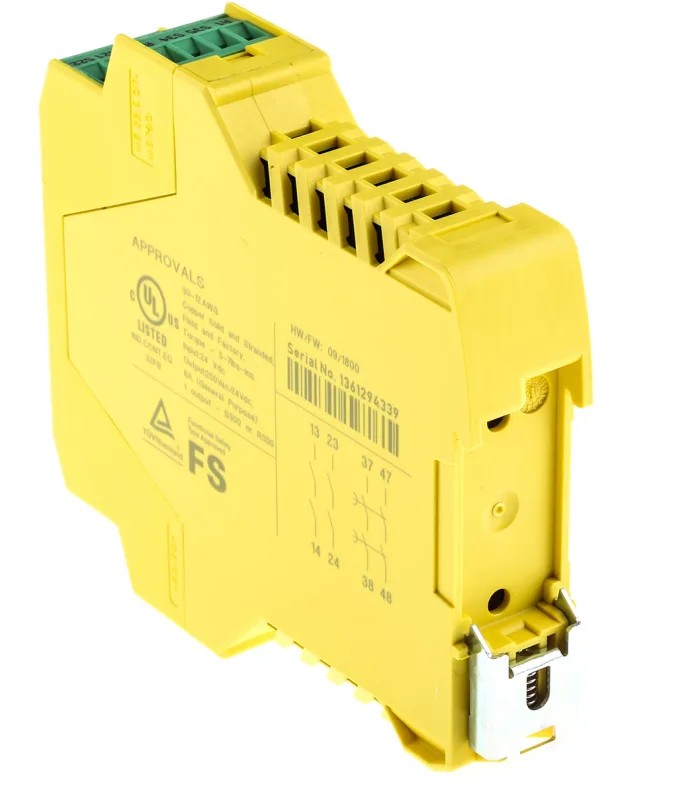

Phoenix Contact 24V DC Safety Relay with 2 Safety Contacts and 2 Auxiliary Contacts PSR-SCP- 24DC/ESD/4X1/30 2981800

Phoenix Contact 2981800 Safety Relay PSR-SCP- 24DC/ESD/4X1/30 is a high-performance 24V DC safety relay engineered for industrial automation and control systems. Designed to monitor safety-relevant circuits, it offers a fast response time that enhances operational safety by quickly shutting down machinery during hazardous conditions.

The relay features 2 safety contacts and 2 auxiliary contacts, facilitating simultaneous monitoring and control functions. Its foot mounting design allows easy DIN rail installation, reducing setup time and effort. Screw-type terminals provide secure and stable wire connections, vital for reliable operation in industrial environments.

Rated for IP67 ingress protection, this device is dust-tight and protected against water immersion, making it suitable for tough environments such as manufacturing, processing, and packaging industries. It operates efficiently within a temperature range of -20°C to 55°C, ensuring performance stability under varying conditions.

The silver tin oxide contacts ensure excellent conductivity and corrosion resistance, promoting longevity and reliable switching performance. It supports AC and DC switching voltages up to 250V, accommodating a wide range of industrial equipment requirements.

Compact dimensions of 114.5mm by 99mm by 22.5mm contribute to space-saving panel designs. Certifications including IECEx and ATEX enable safe usage in hazardous zones with explosive atmospheres. The relay meets rigorous international safety standards including ISO13849-1, ISO13850, EN60947-5-5, and EN60947-5-1, guaranteeing compliance and operational safety.

This safety relay is an ideal choice for industrial, manufacturing, process control, and packaging automation applications. It offers robust protection, reliable performance, and compliance with critical international standards. Its durable PA housing protects against impact and wear, ensuring long-term operation in demanding environments.

Equipped with 2 safety contacts and 2 auxiliary contacts for reliable circuit monitoring. Mount type is foot mounting, enabling secure installation on DIN rails. Terminal connections are screw type for durable and secure wiring.

Offers IP67 rating, providing excellent protection against dust and water ingress. Operating temperature range from -20°C to 55°C suits harsh industrial environments. Contact current rated at 75mA ensures efficient signal switching.

Complies with safety standards ISO13849-1, ISO13850, EN60947-5-5, and EN60947-5-1. Capable of switching voltages up to 250V AC/DC for varied applications. Compact dimensions of 114.5mm height, 99mm length, and 22.5mm width save space in control panels.

Certified for hazardous areas under IECEx and ATEX for use in explosive environments. Explore our comprehensive range of industrial Safety Relays at EnvMart to find products matching your technical and compliance needs.
