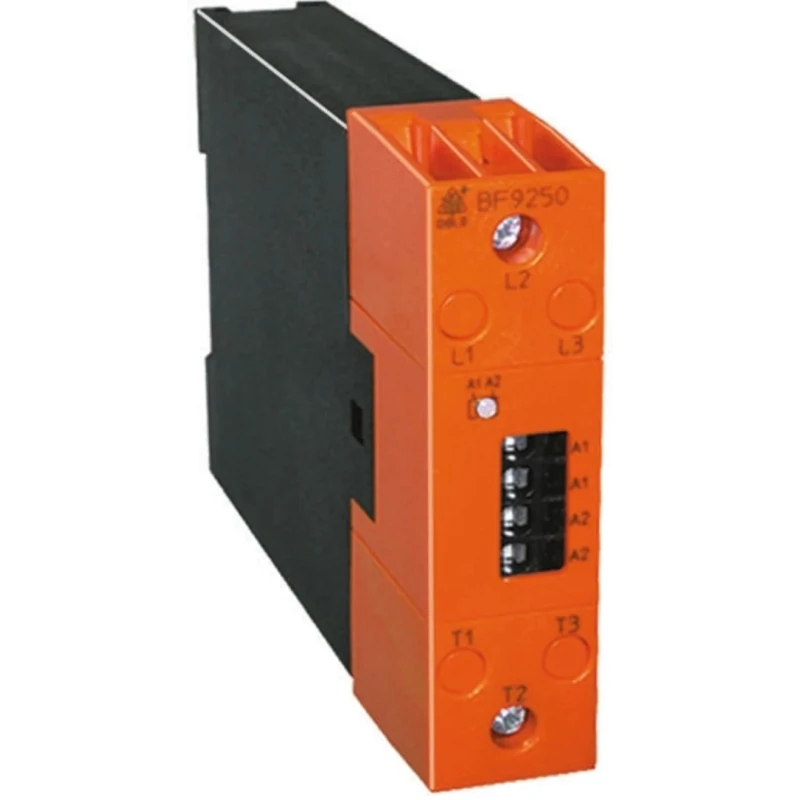

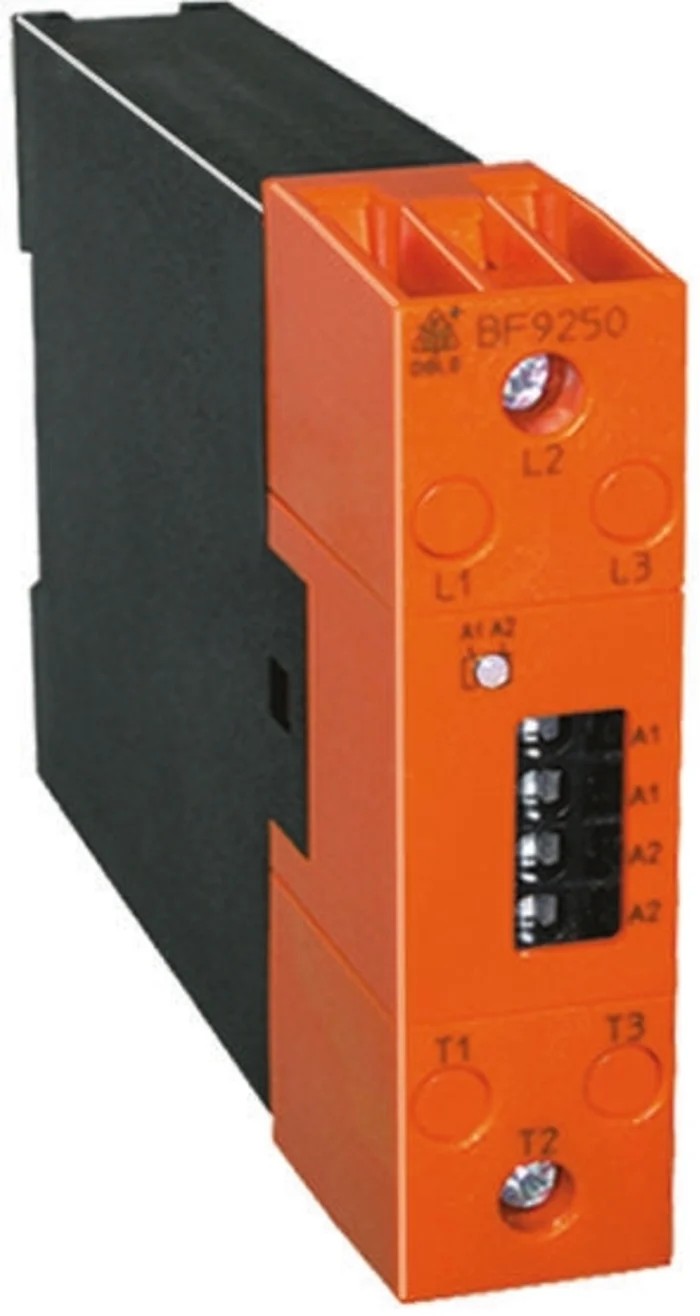

Dold BF9250 Series Solid State Relay, 10 A Load Current, Top Hat Rail Mount, 280 V Load Voltage, 48V Control BF9250
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dold |
| Height | 22.5mm |
| Length | 85mm |
| Model | BF9250 |
| IP Rating | IP20, IP40 |
| Width | 120mm |
| Mount Type | Top Hat Rail |
| Series | BF9250 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Terminal type | Cage Clamp |
| Maximum Load Current | 10A |
| Maximum Load Voltage | 280V |
| Minimum Load Voltage | 24V dc |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 48V |
| Off State Leakage Current | 1mA |
Key Features
- Supports a maximum load current of 10 amperes for reliable operation.
- Mount type is Top Hat Rail allowing easy DIN rail installation.
- Operates with maximum load voltage of 280 volts for varied circuit applications.
- Equipped with LED status display and varistor protection for enhanced safety.
- Features zero voltage switching and burst firing control suited for heating systems.
- Uses analogue input for accurate temperature control in industrial automation.
- Robust construction with cage clamp terminal type and IP20, IP40 ratings for protection.
- Compact dimensions of 22.5mm height, 120mm width, and 85mm length to fit control panels.
Product Description
Dold BF9250 Series Solid State Relay, model BF9250, is engineered for industrial and automation use where precise temperature management and reliable switching of heating elements are required. It supports a maximum load current of 10 A and can handle load voltages up to 280 V, making it suitable for diverse electronic and electrical control applications.
This relay features Top Hat Rail mounting compatible with DIN rail installations, simplifying integration into control panels. Its solid state design includes analogue input for precise control, zero voltage switching for reduced electrical noise, and burst firing control for heating systems.
Safety features include varistor protection and an LED status display for easy monitoring. The relay employs cage clamp terminals for secure wiring and carries IP20 and IP40 IP ratings, ensuring suitable ingress protection. Its operational temperature range from 0°C to 40°C allows stable function in typical industrial environments.
The compact size of 22.5 mm height, 120 mm width, and 85 mm length supports space-efficient panel assembly. Off state leakage current is minimal at 1 mA, optimizing energy efficiency. Typical applications include semiconductor contactors and heating element controllers in industrial automation, HVAC, and manufacturing systems.
Supports maximum load current of 10 A for reliable device operation. Top Hat Rail mount type for secure and standardized mounting. Handles maximum load voltage of 280 V and minimum load voltage of 24 V DC. Maximum control voltage of 48 V with minimum control voltage of 3 V.
Includes varistor protection circuit and LED status indicators for enhanced reliability. Zero voltage switching and burst firing control optimize heating element performance. Compact size and robust terminal clamping ensure ease of installation.
Suitable for precise analogue temperature and process control applications. Explore more industrial and electrical control products to enhance your automation and system performance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 10 amperes, ensuring reliable operation in various applications.
It can handle a maximum load voltage of 280 volts and a minimum load voltage of 24 volts DC, making it versatile for different circuit applications.
The relay has compact dimensions of 22.5 mm in height, 120 mm in width, and 85 mm in length, allowing for efficient use of space in control panels.
This unit features a Top Hat Rail mount type, which is compatible with DIN rail installations for easy integration into control systems.
It is equipped with cage clamp terminals, providing secure wiring connections for reliable performance.
The maximum control voltage is 48 volts, while the minimum control voltage is 3 volts, allowing for flexible control options.
It includes varistor protection and an LED status display, enhancing operational safety and monitoring capabilities.
The relay operates effectively within a temperature range of 0°C to 40°C, suitable for typical industrial environments.
The off state leakage current is minimal at 1 mA, optimizing energy efficiency during operation.
This relay is designed for applications such as semiconductor contactors and heating element controllers in industrial automation, HVAC, and manufacturing systems.
Yes, it features zero voltage switching and burst firing control, which are beneficial for optimizing heating element performance.
The BF9250 carries IP20 and IP40 ratings, providing suitable ingress protection for various environments.
