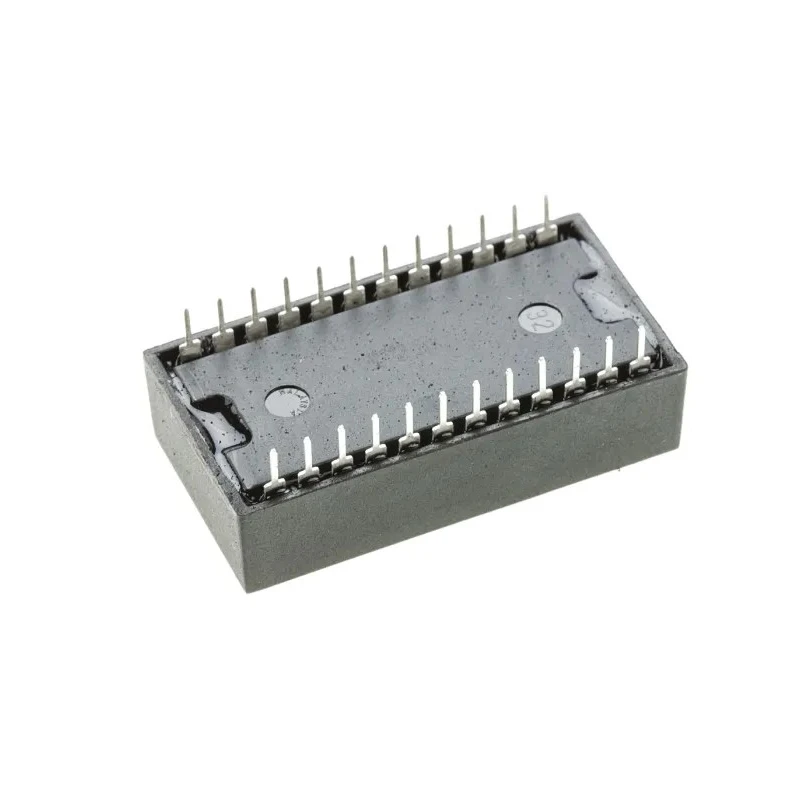

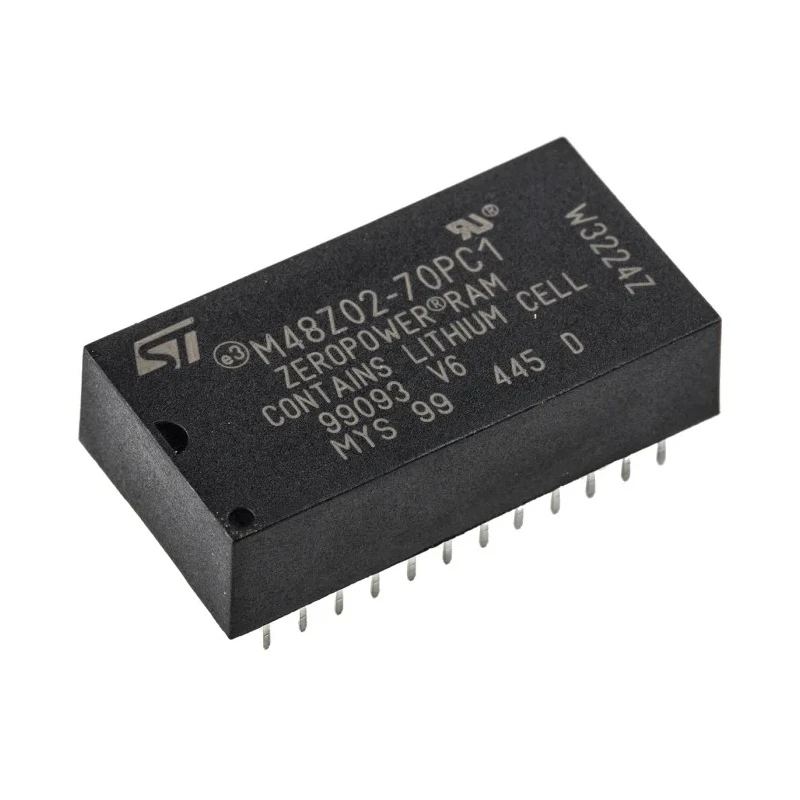

STMicroelectronics 16 kB 70 ns Non-Volatile RAM (NVRAM) 24-Pin PCDIP M48Z02-70PC1

STMicroelectronics M48Z02-70PC1 is a 16 kB 70 ns non-volatile RAM memory housed in a 24-pin Plastic DIP (PCDIP) package designed for high-reliability and fast-access industrial applications.

This memory module features a parallel interface and an 8-bit data bus width organized as 2K x 8-bit. It offers a maximum random access time of 70 ns, supporting efficient data retrieval in embedded systems requiring persistent storage.

The RAIN mounts through hole technology with standardized 24 pins facilitates easy PCB insertion, making it well suited for prototyping and industrial volume production. Operating voltage specifications range from a minimum supply voltage of 4.75 V to a maximum of 5.5 V, with a supply current draw of 80 mA, providing energy-efficient performance.

Its operational temperature range spans from 0°C to 70°C, ensuring robustness in typical electronic operating environments. The device dimensions are 34.8 mm in length, 18.34 mm in width, and 8.89 mm in height, compact form factor compatible with standard DIP sockets.

Equipped with STMicroelectronics’ ZEROPOWER® technology, this static RAM integrates low-power SRAM with a power-fail control circuit supported by a long-life lithium battery, ensuring data retention without power. This feature is essential for critical industrial control, embedded systems, and memory safety applications.

This NVRAM device is suitable for use in semiconductor and memory chip categories for industrial electronics, instrumentation, and computing applications. Memory size of 16 kB organized as 2K x 8-bit data words. Features 70 ns maximum random access time for efficient data retrieval.

Through hole mount type with 24-pin Plastic DIP package. Operates within supply voltage range of 4.75 V to 5.5 V. Supports parallel interface with an 8-bit data bus width. Supply current rated at 80 mA ensuring low power consumption.

Temperature operating range from 0°C to 70°C for reliable performance. Dimensions: length 34.8 mm, width 18.34 mm, height 8.89 mm. Includes ZEROPOWER® static RAM technology combining low-power SRAM with a power-fail control circuit and long-life lithium battery.

Ideal for industrial, electronic components, and semiconductor applications requiring persistent memory. Explore more premium semiconductor Memory Chips and components at EnvMart for your technical and industrial project requirements.
