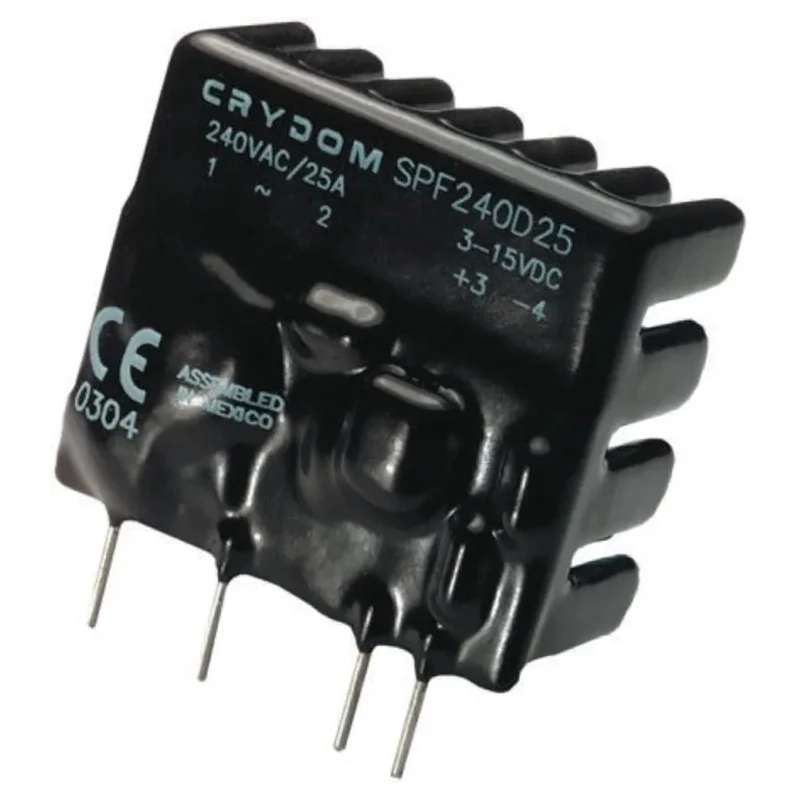

Crydom SPF Series Solid State Relay, 25 A Load, PCB Mount, 280 Vrms Load, 15V Control SPF240D25R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Dimensions | H35.6 x W22.9 x D40.6mm |
| Height | 34.3mm |
| Length | 40.6mm |
| Model | SPF240D25R |
| Width | 22.8mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | SPF |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Switching Function | Instantaneous |
| Maximum Load Current | 25A |
| Standards/Approvals | IEC 62314, E116950 |
| Minimum Load Voltage | 12V ac |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 15V |
| Off State Leakage Current | 0.1mArms |
Key Features
- This relay features a maximum load current of 25 amperes, suitable for demanding AC loads.
- Designed for PCB mounting, it has a compact SIP package for easy integration.
- It supports control voltage from 3V up to 15V for versatile control applications.
- The relay offers instantaneous switching function with SCR output type for efficient power control.
- Operating temperature ranges from -30°C to 80°C, ensuring reliable performance in varied environments.
- Off state leakage current is minimal at 0.1 mArms, reducing power waste.
- The device meets IEC 62314 and UL standards, assuring safety and compliance.
- It includes a high surge rating of 250A for transient robustness.
Product Description
Crydom SPF240D25R is a high-performance solid state relay from the SPF Series designed for electrical and automation industrial applications. This PCB mount relay supports a maximum load current of 25A and a maximum load voltage of 280 Vrms, making it suitable for controlling AC power in diverse equipment.
The relay operates with a DC input control voltage range of 3V minimum to 15V maximum, with instantaneous switching function enabled by the SCR output type. Its small footprint SIP package allows compact and reliable mounting on printed circuit boards.
Featuring an operating temperature range from -30°C up to 80°C, this relay withstands challenging environmental conditions commonly found in industrial and process control settings. The off state leakage current is only 0.1mArms, offering low standby power consumption.
The device is compliant with IEC 62314 standards and has UL approval, ensuring it meets strict quality and safety criteria. It is engineered with a high surge current rating of up to 250A, providing robustness against transient spikes.
The relay's flexible mounting capability allows it to be installed in any orientation which simplifies integration into existing systems. Typical applications include industrial automation, HVAC systems, power supplies, and process control where reliable AC switching is critical.
Maximum load current of 25 amperes for high load demands. Compact SIP package designed for PCB mounting. Instantaneous switching with SCR output. Wide operating temperature range from -30°C to 80°C. Compliance with IEC 62314 and UL standards.
High surge rating of 250 amperes to withstand transients. Low off-state leakage current to minimize power loss. Mountable in any orientation for flexible installation.
This Crydom solid state relay SPF240D25R is ideal for industrial, laboratory, manufacturing, and automated control uses requiring efficient and durable AC load management. Environmentally robust and technically advanced, it assures dependable switching performance to enhance system reliability.
Explore more Crydom Solid State Relays and power control devices in the Electronics & Electricals category at EnvMart for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 25 amperes, making it suitable for demanding AC loads.
This model supports a control voltage range from 3V to 15V, allowing for versatile control applications.
The dimensions of the relay are 35.6mm in height, 22.9mm in width, and 40.6mm in length.
The relay features an SCR output type, which enables instantaneous switching functionality.
The operating temperature range for the SPF240D25R is from -30°C to 80°C, ensuring reliable performance in various environments.
The off state leakage current is minimal at 0.1mArms, which helps reduce power waste.
Yes, this relay meets IEC 62314 standards and has UL approval, ensuring it adheres to safety and quality criteria.
The relay has a high surge current rating of up to 250A, providing robustness against transient spikes.
The relay is designed for PCB mounting and features a compact SIP package for easy integration.
Typical applications include industrial automation, HVAC systems, power supplies, and process control where reliable AC switching is critical.
The minimum load voltage for the SPF240D25R is 12V AC, which is necessary for proper operation.
Yes, the relay can be mounted in any orientation, simplifying integration into existing systems.
