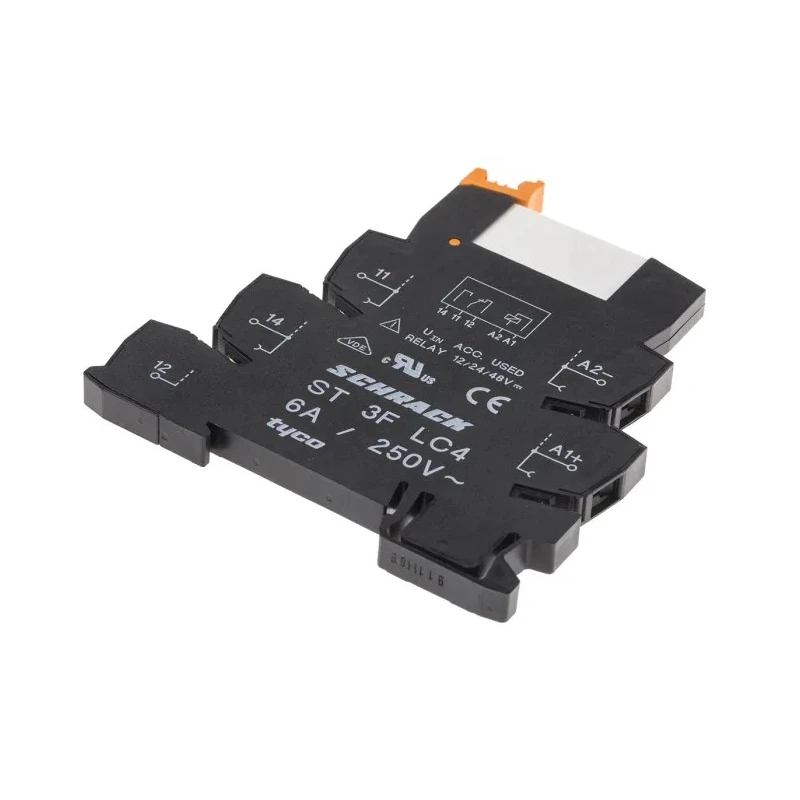

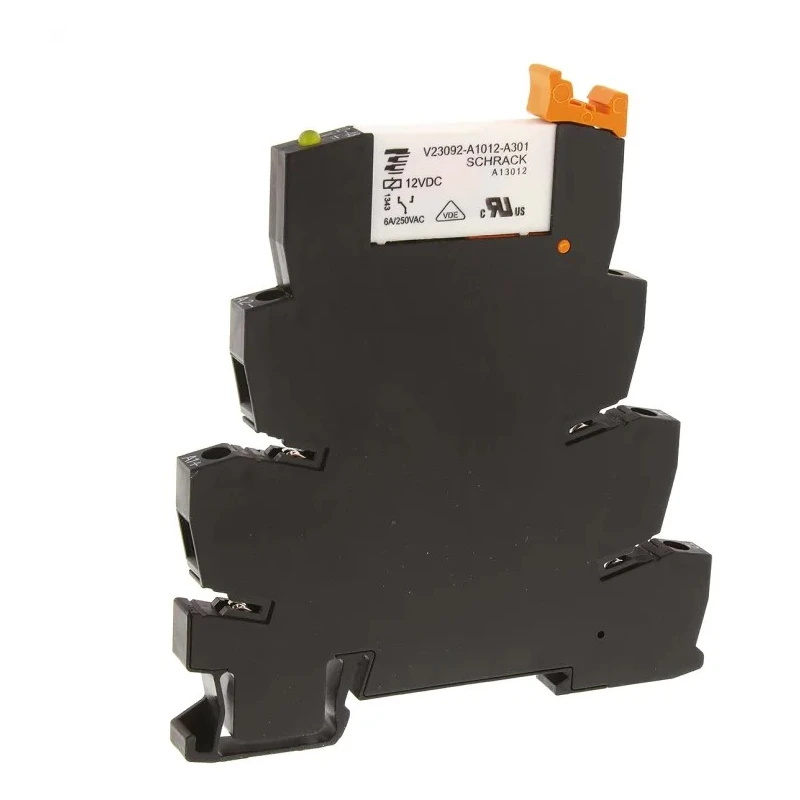

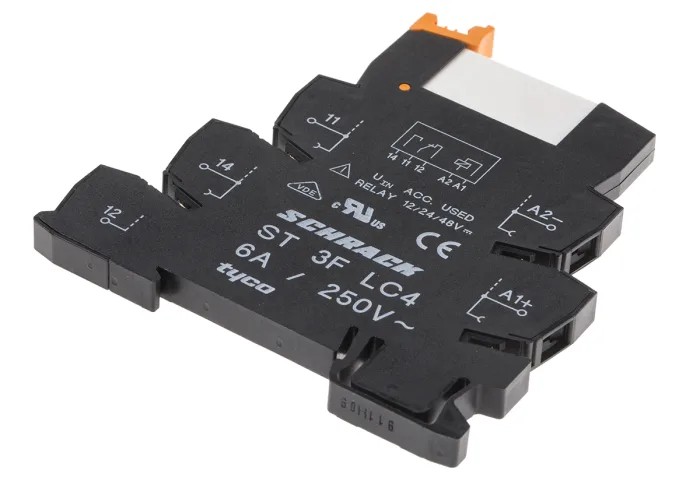

TE Connectivity SNR Series Interface Relay DIN Rail Mount 12V dc Coil 6A SPDT Contact ST3P3LB2 3-1416100-1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 94mm |
| Length | 80mm |
| Model | ST3P3LB2 3-1416100-1 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 12V dc |
| Switching AC Voltage | 240V ac |
Key Features
- The relay features a compact slim line package with a module width of 6.2mm for efficient DIN rail installation.
- It offers a coil resistance of 848 ohms and operates at a coil voltage of 12V dc.
- The switching current rating is 6A with a maximum switching voltage of 240V AC and 12V DC.
- Contacts are made from silver alloy ensuring strong conductivity and durability.
- Operating temperature ranges from -40°C to 55°C suitable for harsh industrial environments.
- Includes LED indicators and protection diodes to enhance operational reliability.
- Designed for industrial automation, electrical signal isolation, and interface applications.
- Mount type is DIN rail with screw terminal connections for secure wiring.
Product Description
TE Connectivity ST3P3LB2 3-1416100-1 Interface Relay is an electromechanical DIN rail mounted relay designed for reliable switching and signal conditioning in industrial and automation applications. Featuring a 12V dc coil and SPDT contact configuration, this relay supports up to 6A switching current and operates across a wide temperature range of -40°C to 55°C.
The slim line package with a 6.2mm module width allows for high packing density on standard DIN rails, optimizing space in control panels. The silver alloy contacts provide excellent conductivity and durable performance in demanding environments. Coil resistance is precisely 848Ω to ensure consistent coil energizing under 12V dc supply.
This relay includes built-in LED indicators and protective components such as polarity and protection diodes, enhancing operational reliability and simplifying troubleshooting. Screw terminal type connections ensure secure and simple wiring installation.
Compliant with industry requirements, this model adheres to RoHS and REACH standards and carries VDE approval, ensuring environmental and safety compliances. It is manufactured in the Czech Republic, known for quality and consistency.
Ideal for industrial automation systems, electrical control cabinets, and signal isolation circuits, this TE Connectivity SNR Series Interface Relay provides robust performance and compact design.
The relay features a compact slim line package with a module width of 6.2mm for efficient DIN rail installation. It offers a coil resistance of 848 ohms and operates at a coil voltage of 12V dc. The switching current rating is 6A with a maximum switching voltage of 240V AC and 12V DC.
Contacts are made from silver alloy ensuring strong conductivity and durability. Operating temperature ranges from -40°C to 55°C suitable for harsh industrial environments. Includes LED indicators and protection diodes to enhance operational reliability.
Designed for industrial automation, electrical signal isolation, and interface applications. Mount type is DIN rail with screw terminal connections for secure wiring. Manufactured in Czech Republic adhering to RoHS and REACH environmental standards.
Discover more products in the Interface Relay category at EnvMart for quality electrical components and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It has a maximum switching voltage of 240V AC and 12V DC.
The switching current rating for this relay is 6A.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The relay has a height of 94mm, a length of 80mm, and a width of 6.2mm.
The contacts are made from silver alloy, ensuring strong conductivity.
It operates within a temperature range of -40°C to 55°C.
This relay is designed for DIN rail mounting with screw terminal connections for secure wiring.
It complies with RoHS and REACH standards and carries VDE approval.
The coil resistance is 848 ohms.
It is designed for industrial automation, electrical signal isolation, and interface applications.
This relay is manufactured in the Czech Republic.
