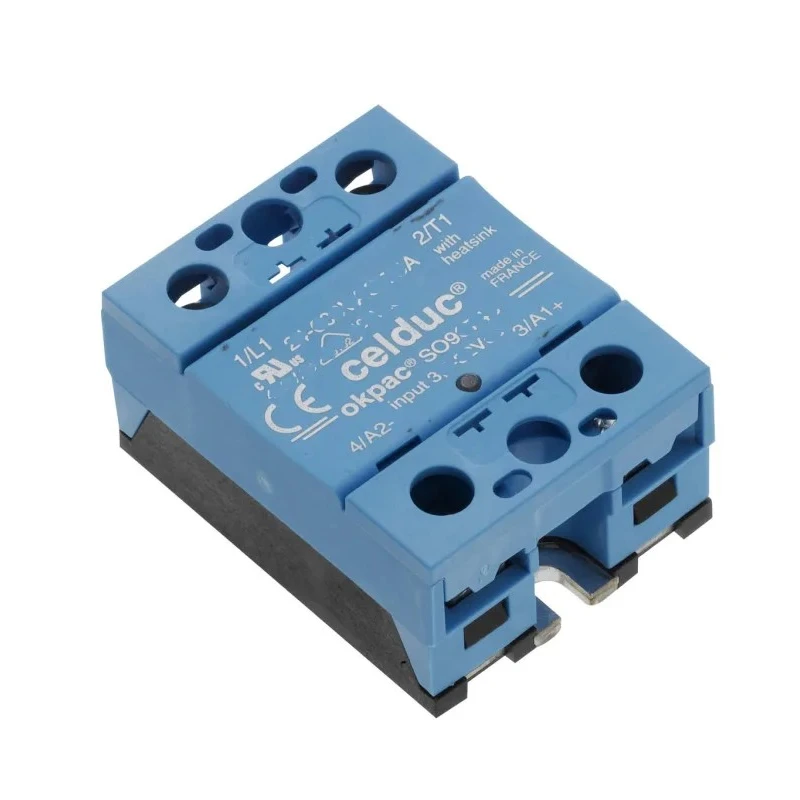

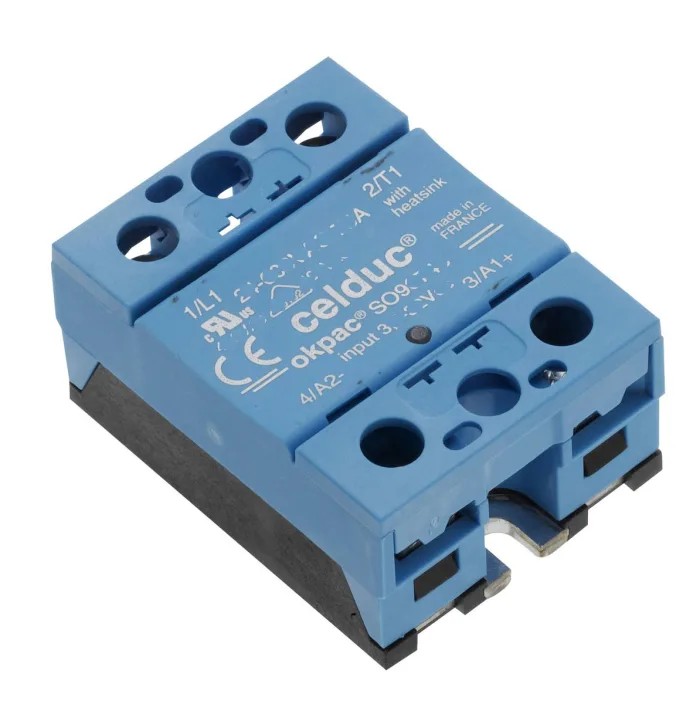

Celduc SO9 Series Solid State Relay, 90 A Load, 600 Vrms Load, DIN Rail Mount, 32V Control SO967460

Celduc SO967460 SO9 Series Solid State Relay offers reliable switching performance with a maximum load current of 90 A and load voltage rating of 600 Vrms. Designed for DIN rail mounting, this relay supports a wide control voltage range from 3 V up to 32 V, allowing flexible integration into diverse electrical and automation systems.

Constructed with advanced TMS2 thyristor technology, this single-phase synchronous solid state relay provides long operational life and high reliability. Its zero crossing switching function minimizes electrical noise, suitable for sensitive industrial applications.

Featuring screw terminal connections and a robust IP20 rating, it withstands operating temperatures from -40°C to 100°C. The device includes voltage protection via varistor (VDR) components to ensure high immunity against electrical interference.

Compactly sized at 58.5mm length, 44.8mm width, and 29mm height, it is designed to be mounted easily on standard DIN rails in electrical enclosures. The off state leakage current is minimal at 1 mA, enhancing its efficiency.

This product meets various international standards including VDE, UKCA, RoHS, EAC, cURus, CSA, and CE certifications, reflecting its compliance with rigorous industrial requirements.

Ideal for use in industrial automation, electrical distribution, and control systems, the Celduc SO967460 solid state relay delivers reliable, silent switching tailored for demanding electrical loads requiring maintenance-free and long-life solutions.

Supports a maximum load current of 90 A for demanding applications. Equipped with screw terminal type for secure electrical connections. Features zero cross switching function for reduced electrical noise. Operates within a temperature range from -40°C to 100°C with IP20 rating.

Compact dimensions of 58.5mm length, 44.8mm width, and 29mm height enable easy integration. Synchronous single-phase solid state relay with triac output type. Wide control voltage range between 3 V minimum and 32 V maximum control voltage.

Includes voltage protection (VDR) for high immunity to interference. Designed for DIN rail mounting to fit standard electrical enclosures. Complies with multiple standards including VDE, UKCA, RoHS, EAC, cURus, CSA, and CE.
