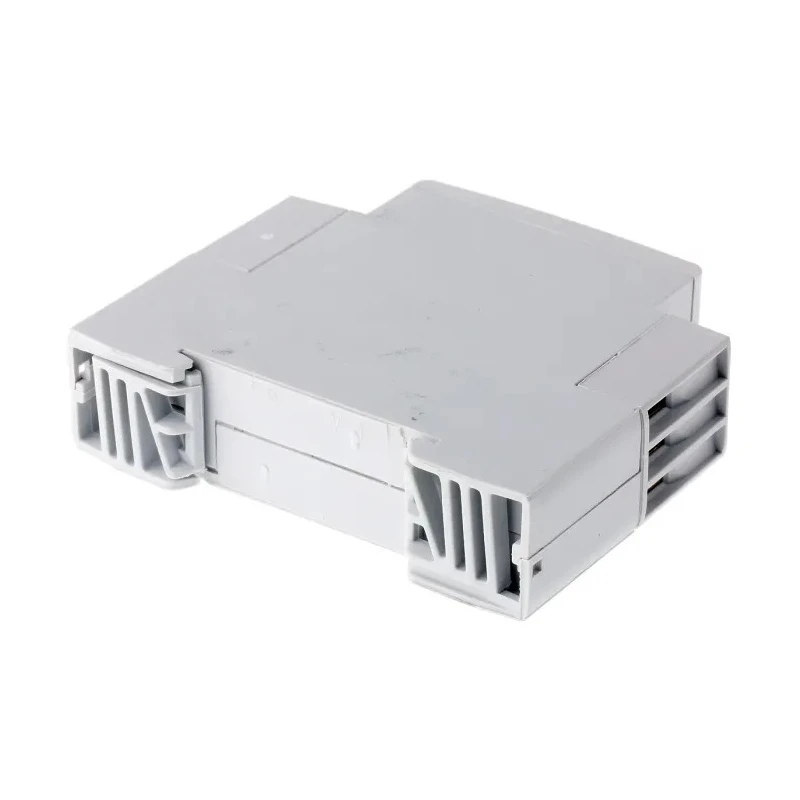

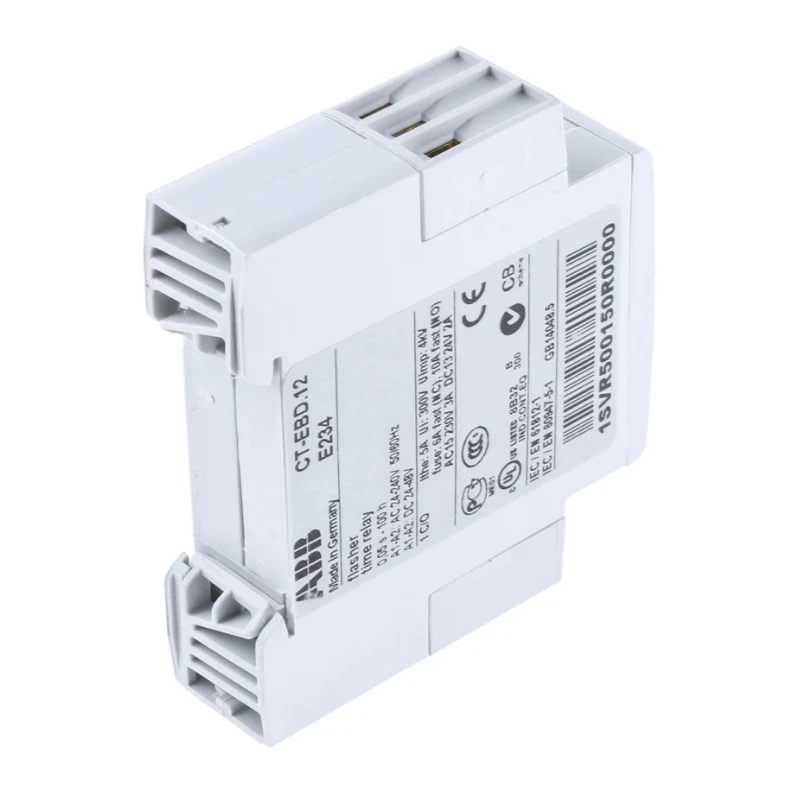

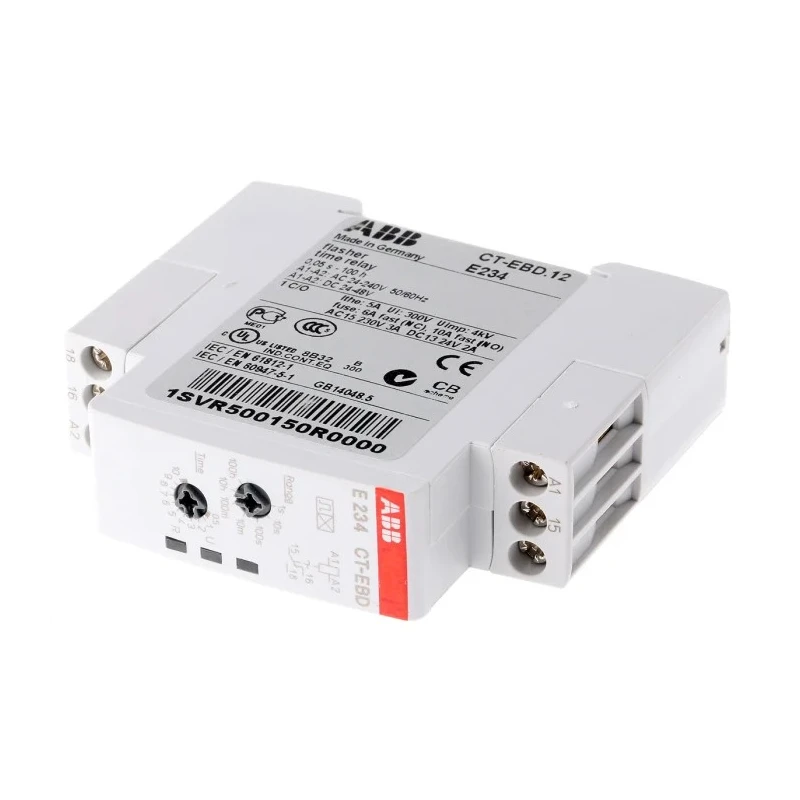

ABB DIN Rail Timer Relay, 1-Contact, 48 V DC, 24/240 V AC, 0.05 s to 100 h, 1-Function, SPDT 1SVR500150R0000 CT-EBD.12

ABB 1SVR500150R0000 CT-EBD.12 DIN Rail Timer Relay is designed for industrial and automation applications requiring precise time control. This timer relay includes a single SPDT contact rated for 6A, suitable for controlling loads in electrical circuits with supply voltages of 48 V DC and 24 to 240 V AC.

The device supports a wide time range from 0.05 seconds up to 100 hours, making it versatile for various timing functions including cycling and flashing modes. It features a robust contact material (AgSnO2) which ensures reliable switching and long operational life.

The timer relay is built to mount easily on DIN rails and includes screw terminals for secure connection. Its compact physical dimensions of 70 mm length, 17.5 mm width, and 58 mm height make it ideal for space-constrained panel installations. Operating temperature range is broad, from -20°C to +60°C, supporting demanding environments.

The product is compliant with international standards IEC/EN 61812-1 and DIN VDE 0435 pt 2021, and carries CE marking reflecting adherence to safety and performance requirements. Its IP20 and IP50 ratings offer protection against ingress of solid objects and limited dust, suitable for general industrial use.

Features such as LED status indicators enhance operational clarity by displaying timing status and relay engagement. This ABB timer relay is applicable in industrial automation, electrical control panels, manufacturing systems, and HVAC controls where precise timing and robust switching are essential.

Suitable for DIN Rail mounting with a compact design. Operates within a wide voltage range: 48 V DC and 24/240 V AC. Single timer function offering cycling/flasher mode. Contact current rated at 6A and contact material AgSnO2 for durability.

IP20 and IP50 rated for protection in varied environments. Operating temperature range from -20°C to +60°C. Screw terminal type ensures secure connections. Compact dimensions with length 70 mm, width 17.5 mm, and height 58 mm.

LED indicators provide clear status display. Complies with IEC/EN 61812-1 and DIN VDE 0435 pt 2021 standards.

This timer relay is an essential component for precision timing control in industrial, electrical automation, manufacturing, and HVAC applications. For more advanced industrial automation products and ABB relays, browse the EnvMart collection.
