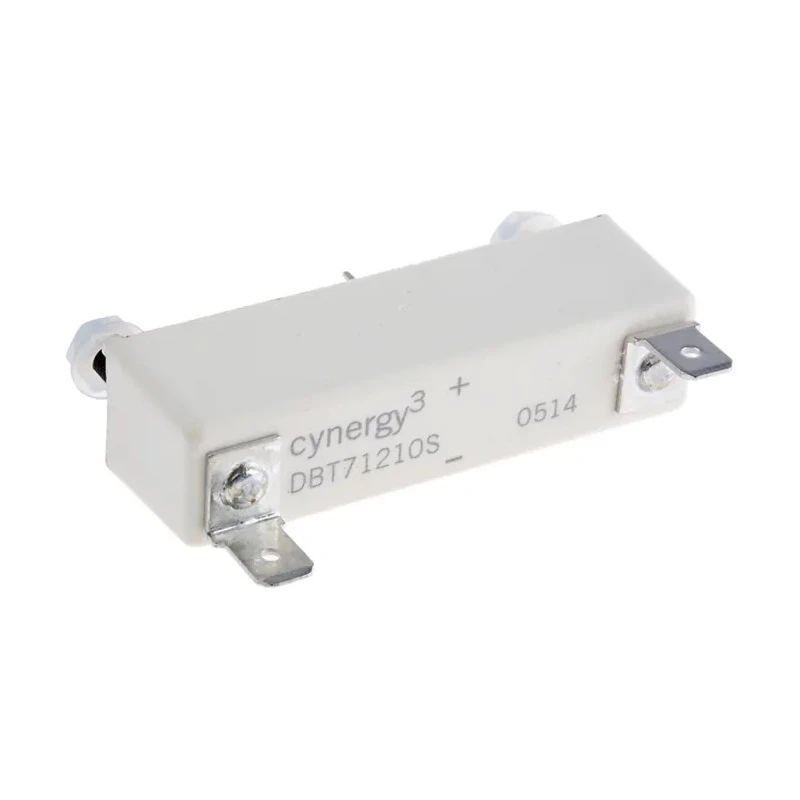

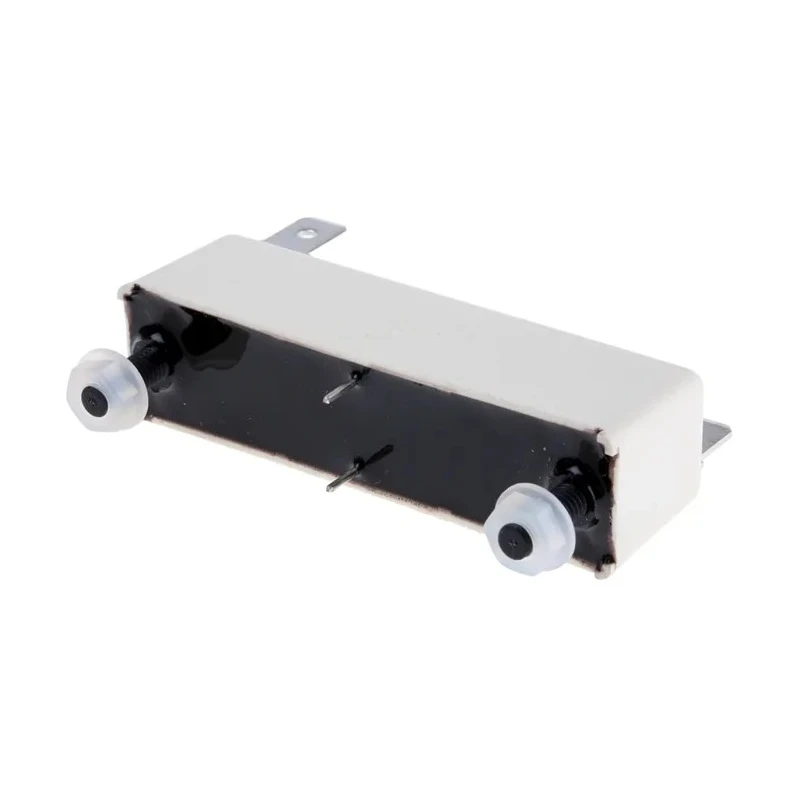

Cynergy3 PCB Reed Relay, 12V DC Coil, SPNC Contact Configuration, 7000V DC Maximum Voltage, 2A Maximum Current, 240Ω Coil
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Height | 24.8mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 2ms |
| Mount Type | PCB |
| Series | DBT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPNC |
| Minimum Operating Temperature | -20°C |
| Terminal type | Quick Connect |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UR |
| Coil Resistance | 240Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV ac/dc |
| Meder Reed RelayBrand | Meder |
| Highvoltage SPNC reedrelay,3A 12Vdc coilBrand | NEUTRAL |
Key Features
- This reed relay has a SPNC contact configuration providing reliable switching capabilities.
- It supports a maximum switching voltage of 7000V AC/DC ensuring suitability for high voltage applications.
- The coil resistance is rated at 240 ohms with a coil power of 50W for efficient electromagnetic operation.
- The relay operates with a fast response time of 2ms, enabling precise control in instrumentation and test systems.
- It features compact dimensions of 60mm length, 24.8mm height, and a PCB mount for space-efficient integration.
- Rated maximum current is 2A with contact resistance of 250mΩ ensuring minimal voltage drop and heat generation.
- Operational temperature range from -20°C to +70°C allows usage in varied environmental conditions.
- Quick connect terminals simplify installation without requiring specialized tools.
Product Description
Cynergy3 DBT71210S PCB Reed Relay, featuring a 12V DC coil voltage, is engineered to provide high voltage switching and reliable performance in electrical and automation applications. This SPNC reed relay supports a maximum switching voltage of 7000V AC/DC and a maximum current of 2A, making it ideal for test instrumentation, high voltage power supplies, and signal conditioning circuits.
With a coil resistance of 240Ω and coil power rating of 50W, this relay ensures efficient coil operation while the tungsten contacts provide superior conductivity and corrosion resistance for durable electrical connections. Its compact dimensions of 60mm length and 24.8mm height make it suitable for PCB mounting where space constraints exist.
The relay has an operating time of just 2 milliseconds, facilitating rapid switching performance necessary for modern control systems. It is designed to operate effectively within a temperature range of -20°C to +70°C, permitting usage in diverse industrial and laboratory environments.
The quick connect terminal type allows for easy and rapid installation without requiring specialized tools, saving time during assembly and maintenance. The coil-to-contact isolation voltage of 17kV AC/DC enhances safety by preventing electrical interference or damage between coil and switching contacts.
This relay offers compact size with high switching capacity up to 7000V AC/DC and 2A current rating. Tungsten contacts provide excellent conductivity and long service life over one million electrical cycles. Fast 2ms response time ensures precise operation for signal conditioning and instrumentation.
Wide temperature range operation from -20°C to 70°C supports varied environmental conditions. Quick connect terminals enable straightforward installation on PCBs. High coil-to-contact isolation voltage of 17kV AC/DC ensures superior electrical safety.
Designed for industrial, laboratory, HVAC, manufacturing, and test system applications.
Choose the Cynergy3 DBT71210S for demanding electrical circuits requiring robust, fast, and reliable Reed Relays. Explore related Cynergy3 relay products and accessories within the EnvMart portfolio for your specific needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage of this relay is 7000V AC/DC, making it suitable for high voltage applications.
The coil resistance is rated at 240 ohms, which contributes to efficient electromagnetic operation.
This relay has a rated maximum current of 2A, allowing it to handle various electrical applications.
The relay has compact dimensions of 60mm in length and 24.8mm in height, making it suitable for space-constrained environments.
The operational temperature range is from -20°C to +70°C, allowing for use in diverse environmental conditions.
This model has an operating time of just 2 milliseconds, enabling rapid switching performance.
It features a SPNC (Single Pole Normally Closed) contact configuration, providing reliable switching capabilities.
The relay is equipped with quick connect terminals, simplifying installation without the need for specialized tools.
The contact resistance is rated at 250mΩ, ensuring minimal voltage drop and heat generation during operation.
The coil-to-contact isolation voltage is 17kV AC/DC, enhancing safety by preventing electrical interference.
This relay complies with UR standards, ensuring it meets specific safety and performance criteria.
It is designed for use in electrical and automation applications, including test instrumentation and high voltage power supplies.
