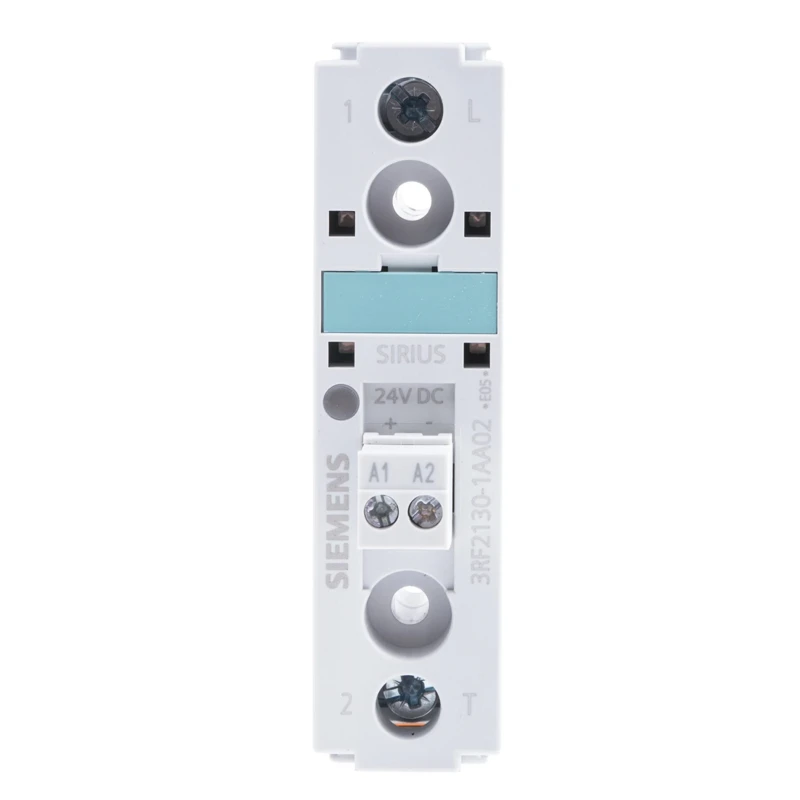

Siemens 3RF2 Series Solid State Relay DIN Rail Mount, 30 A Load Current, 230 V Load Voltage, 24V DC Control 3RF2130-1AA02

Siemens 3RF2130-1AA02 is a state-of-the-art Solid State Relay from the 3RF2 Series, designed for robust industrial and automation applications. This relay supports a maximum load current of 30 amperes with a load voltage rating of 230 volts, controlled by a DC voltage ranging between 15 V and 24 V. Its DIN rail mounting configuration with a slim 22.5 mm width allows efficient use of control cabinet space.

The relay's zero cross switching function enhances performance by reducing electrical noise and stress on the load, making it ideal for applications requiring smooth switching of AC loads. Constructed with reliable thyristor output and screw terminals, it ensures secure connections and durability in demanding environments.

Rated at IP20 for ingress protection, this product is suited for indoor electrical installations, with operating temperature flexibility from -25°C to 60°C, accommodating various industrial conditions. Its low off-state leakage current of 10 mA helps reduce power loss when switched off.

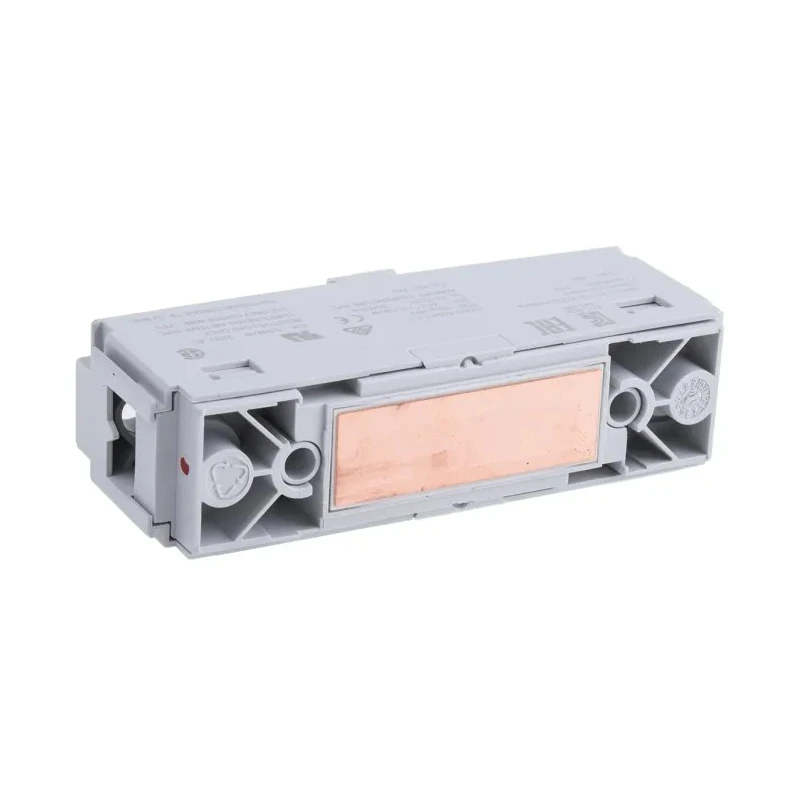

Designed for mounting on existing heatsinks, this compact device efficiently utilizes space while providing high reverse voltage endurance. It adheres to international standards including CSA, EAC, and UR, validating its safety and quality credentials. Manufactured in Germany, it reflects Siemens' commitment to engineering excellence.

Compact 22.5 mm width suitable for high-density control panels. Zero cross switching minimizes load switching interference. Thyristor output type offers reliable solid-state switching. Screw terminal connections for user convenience and robustness.

Wide operating temperature range from -25°C to 60°C. IP20 enclosure for basic protection in industrial setup. Low off-state leakage current of 10 mA conserves power. CSA, EAC, and UR approved for international compliance.

Manufactured in Germany ensuring high quality and durability.

This Siemens Solid State Relay is ideal for use in industrial automation, electrical control systems, manufacturing process equipment, HVAC installations, and other commercial applications necessitating efficient, noise-minimized switching of AC loads. The product's compact DIN rail mounting helps streamline installation and maintenance.

Explore more Siemens Solid State Relays and other high-quality components on EnvMart to support your advanced electrical and automation needs.
