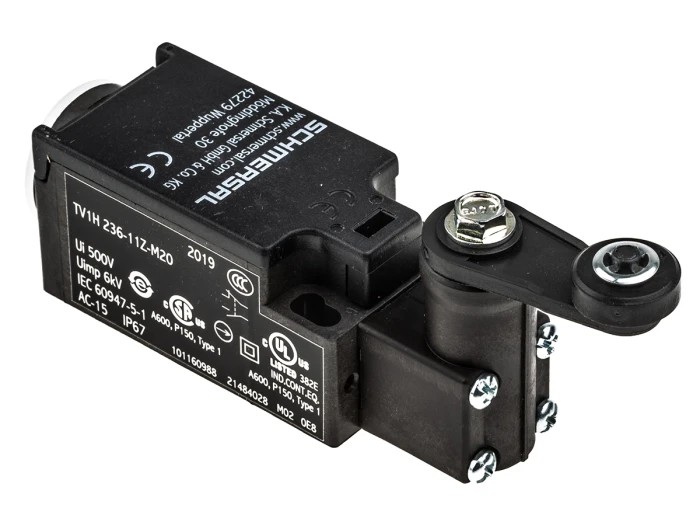

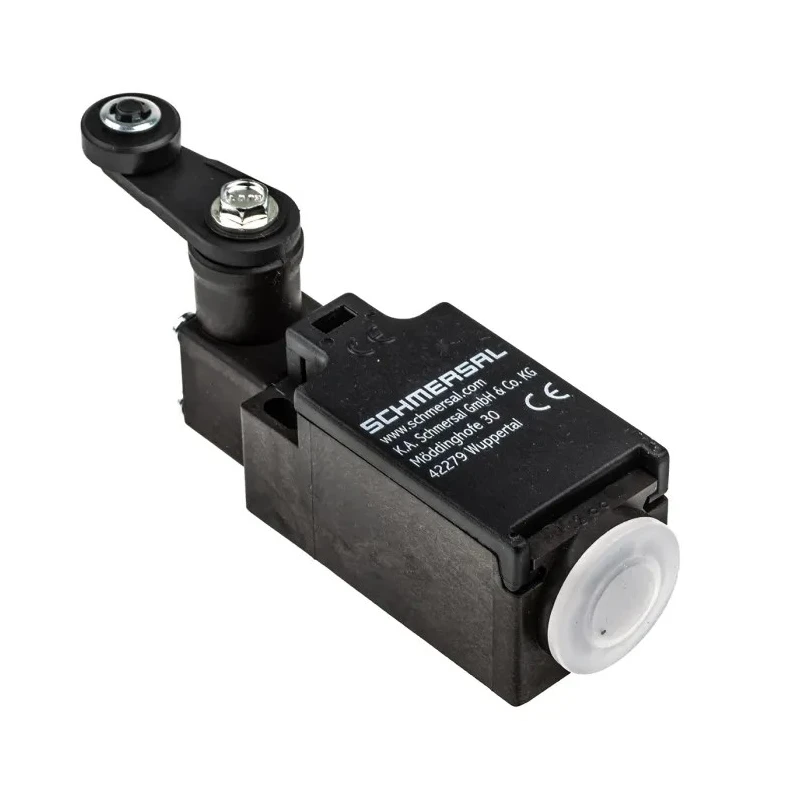

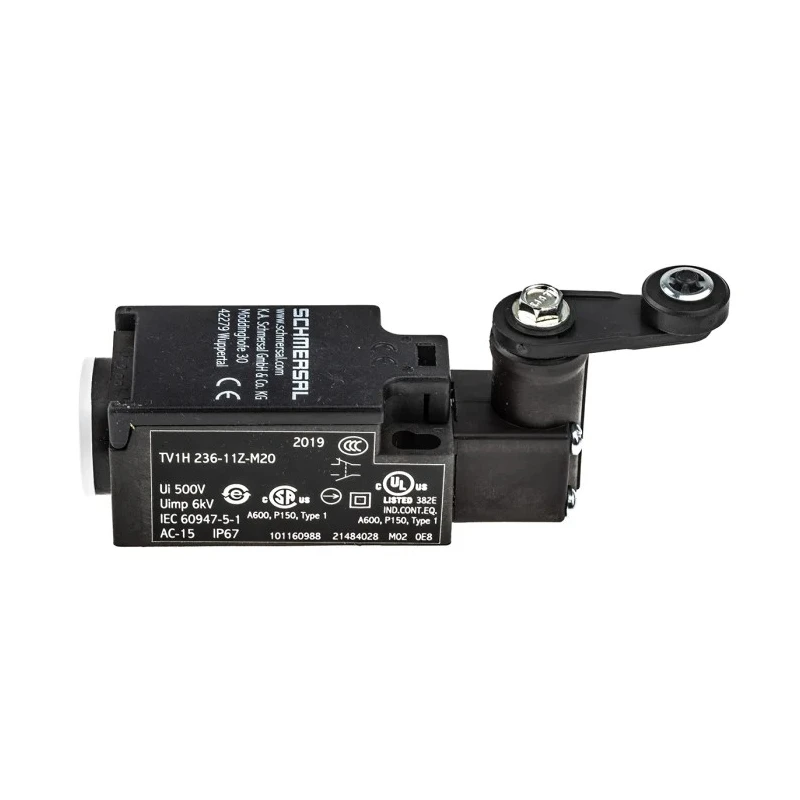

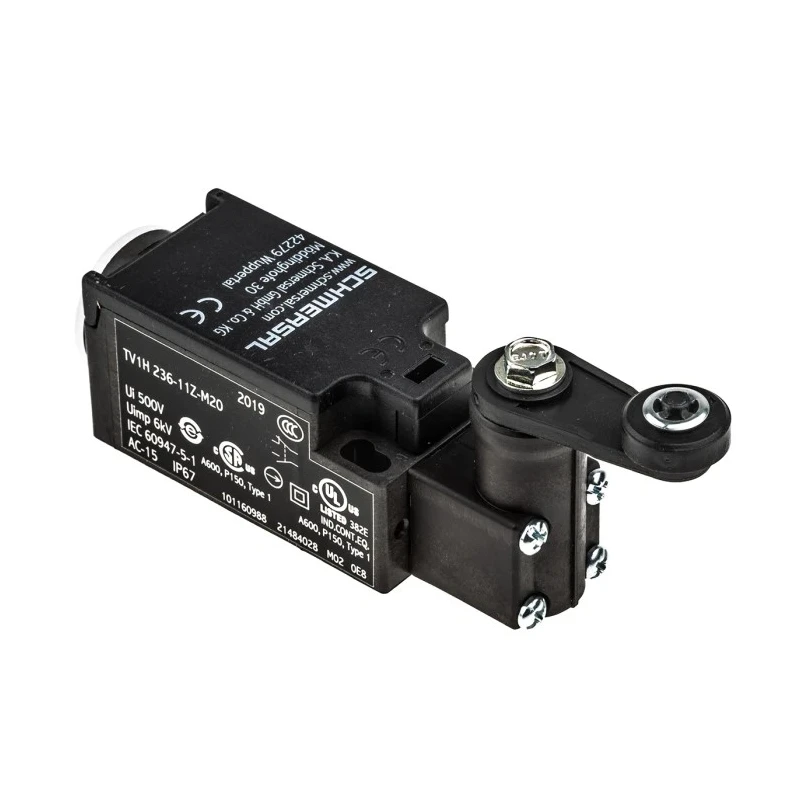

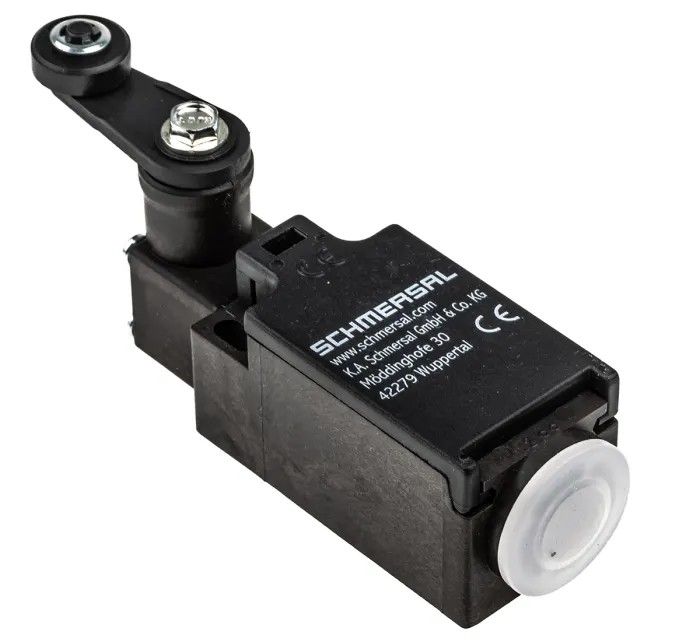

Schmersal Lever Limit Switch DPDT, IP67 Thermoplastic Housing, 230V AC, 4A TV1H 236-11z

Schmersal TV1H 236-11z lever limit switch is a precision position sensing device with DPDT (Double Pole Double Throw) contacts rated at 4 amps, operating at 230 volts AC. Housed in a robust thermoplastic enclosure rated IP67, it provides excellent protection against dust and water penetration, making it suitable for harsh industrial environments.

The device includes contacts that are galvanically isolated to prevent stray current interference, ensuring reliable and safe switching operations. The thermoplastic housing contributes not only to durability but also offers resistance to vibration, impact, oil, and petroleum, thus broadening its applicability across various industrial scenarios.

This limit switch features a lever actuator type, with the head adjustable in 90-degree increments to accommodate different mechanical setups. It operates effectively within a broad temperature range, from -30°C up to 80°C, making it adaptable to extreme conditions. The screw terminal connections afford secure wiring and installation, while the self-extinguishing enclosure increases safety against fire hazards.

With a mechanical life of up to 20 million cycles, this switch guarantees long-term performance and reliability. It is ideal for use in sectors including medical, pharmaceutical, packaging, material handling, and general industrial automation where safety and precision are critical.

The switch has a DPDT contact configuration allowing multiple circuit control. IP67 enclosure ensures dust and water protection. Thermoplastic housing provides durability against mechanical and chemical stress. Operating temperature ranges from -30°C to 80°C for extreme environmental adaptability.

Adjustable actuator head improves versatility in mounting options. Self-extinguishing housing adds fire resistance for safety compliance. Contains NO/NC contacts for reliable switching functions. Screw terminals provide firm and lasting electrical connections.

Mechanical life rated at 20 million cycles ensures extensive usage longevity. Galvanic isolation of contact bridges prevents electrical interference.

This limit switch is sourced from Germany and complies with CE, CSA, EN, and UL standards, ensuring high quality and safety benchmarks. It is a trusted component in industrial automation systems, enhancing machine and equipment safety by accurately monitoring position and initiating corrective actions when hazardous conditions are detected.
