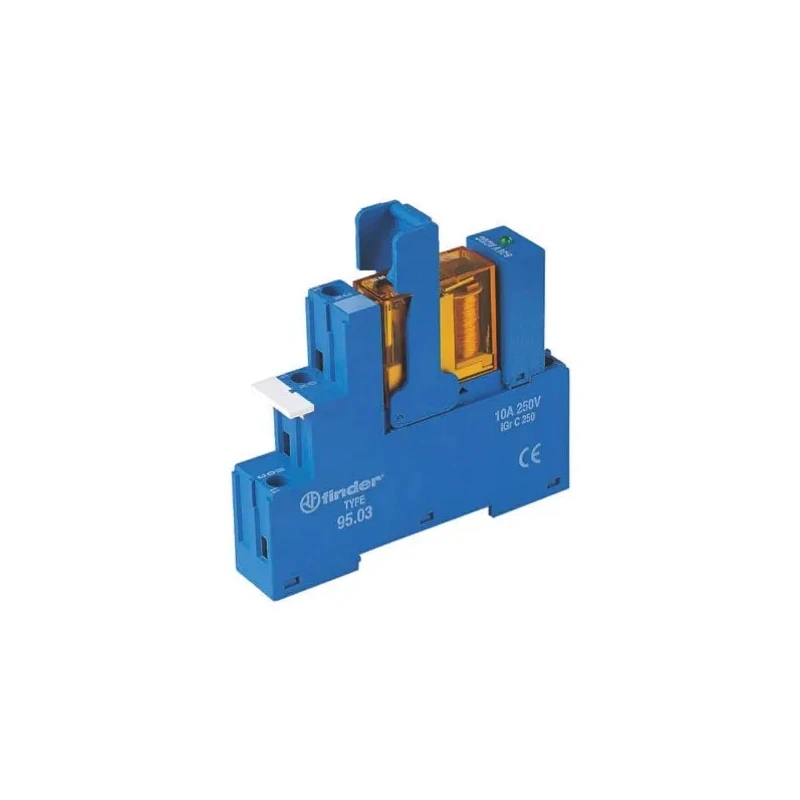

Finder 48 Series Interface Relay DIN Rail Mount 12V AC Coil SPDT Contact 10A Switching Current 48.31.8.012.0060SPA

Finder 48.31.8.012.0060SPA Interface Relay from the 48 Series offers a DIN Rail mounting solution with a 12V AC coil voltage and SPDT (Single Pole Double Throw) contact configuration. It is engineered for demanding automation and control environments requiring reliable switching of electrical loads.

This relay accommodates a coil current of 90.5mA and supports a switching current up to 10A with the ability to handle AC voltages up to 250V. The contacts are fashioned from silver alloy, enhancing conductivity and operational durability across industrial applications.

Compact in size with dimensions 15.8 mm length, 75.3 mm width, and 78.6 mm height, it fits standard 35mm DIN rails, simplifying installation inside electrical cabinets and panels. The industry-standard screw terminals ensure secure wiring connections.

Operating efficiently within a wide temperature range from -40°C to 70°C, the relay is suitable for harsh and varying environmental conditions. Its rapid switching times (4 milliseconds turn off and 7 milliseconds turn on) optimize system responsiveness.

Certified to CSA and CE standards, this device offers assured compliance with established safety and performance norms. It is widely utilized in advanced building automation systems, lift control panels, electrical distribution boards, and precision operations such as carousel warehouses.

The relay is built for robustness with a mechanical life expectancy of approximately 10 million cycles and an electrical life of 100,000 cycles at rated load, offering long-term dependability.

Its design accommodates various load types, including both inductive and resistive loads, with a rated DC inductive breaking capacity of up to 8A. The DIN rail mounting allows flexible and rapid deployment inside control cabinets and electrical boards without modifications.

Supports switching current up to 10A for reliable load control. Coil current rating of 90.5mA ensures efficient operation. Compact form factor with 15.8 x 75.3 x 78.6 mm dimensions. Silver alloy contacts provide durable, high-conductivity switching.

Wide operating temperature range: -40°C to 70°C. Quick switching reduces delay in control systems. Standard DIN rail mounting simplifies installation. CSA and CE certifications ensure regulatory compliance. Designed for inductive and resistive load switching.

Long mechanical life of ~10 million cycles. Electrical life of ~100,000 cycles at rated load. Browse other high-quality Interface Relays and automation components at EnvMart for your industrial applications.
