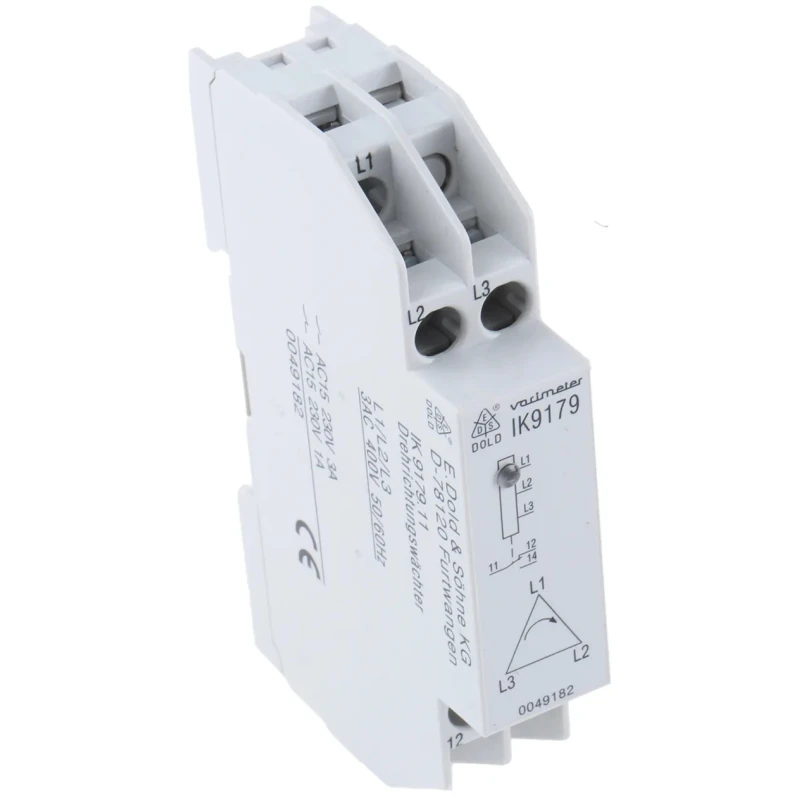

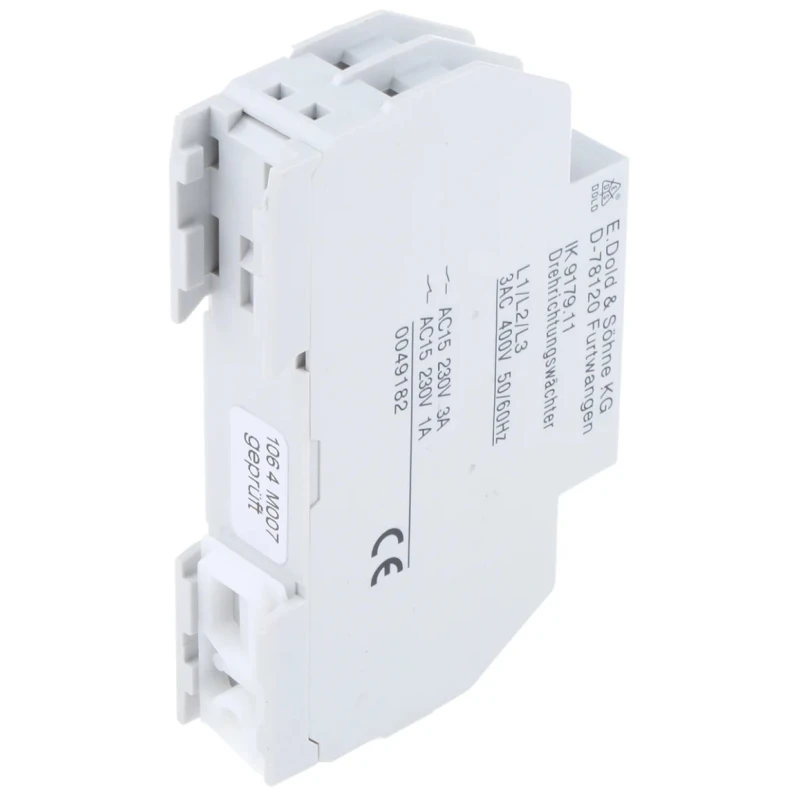

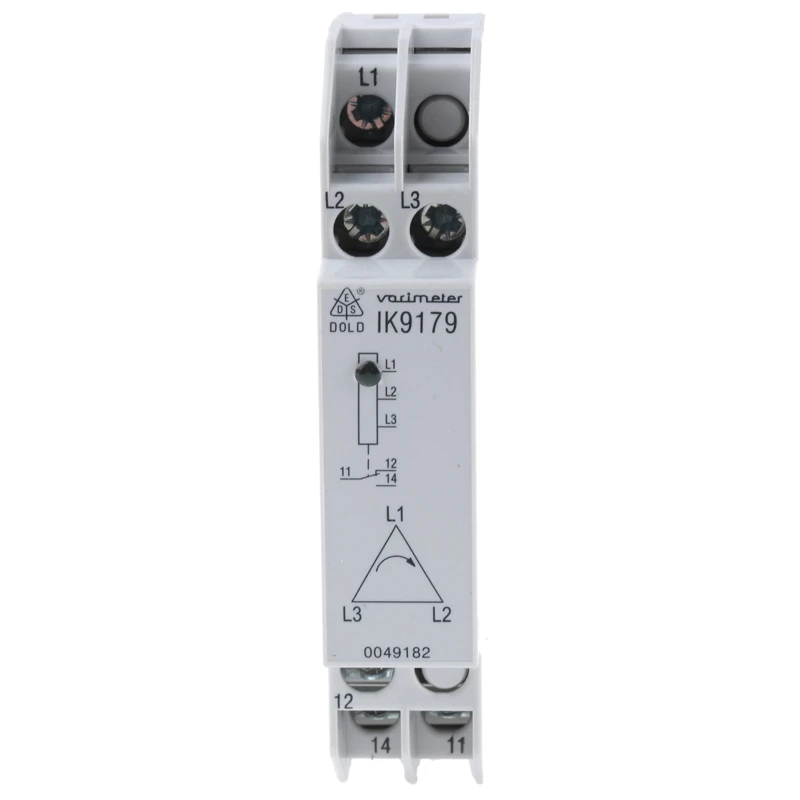

Dold Monitoring Relay 3 Phase SPDT DIN Rail Mount 400V AC IK9179.11 3AC50/60Hz 400V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 90mm |
| Length | 61mm |
| Model | IK9179.11 3AC50/60Hz 400V |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | IK 9179 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | CCC, CE |
| Contact Current | 3A |
| Supply AC Voltage | 400V ac |
Key Features
- The relay features single-pole double-throw (SPDT) contact configuration for versatile switching.
- It operates at a supply voltage of 400V AC with a contact current capacity of 3 amps.
- Mounts easily on DIN rails with robust screw terminal connections ensuring secure installation.
- Designed to comply with IEC 255 and VDE 0435 standards with certifications including CCC and CE.
- Features an LED display indicating clockwise rotation detection for phase monitoring.
- Operates reliably within an ambient temperature range of up to 60°C.
- Housing is manufactured per DIN 43 880, providing durable and standardized mechanical protection.
Product Description
Dold IK9179.11 3AC50/60Hz 400V Monitoring Relay is a high-quality, three-phase monitoring device with SPDT contact configuration and DIN rail mounting designed for industrial electrical and automation applications.
This relay effectively monitors the direction of rotation and phase sequence in three-phase systems without requiring auxiliary voltage, enhancing operational safety and control reliability.
Equipped with an LED indicator, it signals when a clockwise rotation field is detected, making it easier for users to verify correct phase operation visually. The device supports a contact current of 3 amps and operates at a supply voltage of 400V AC, suitable for a wide range of industrial power systems.
Designed in accordance with IEC 255 and VDE 0435 Section 303 standards, it meets stringent safety and performance requirements, including CCC and CE certifications. The orange housing, manufactured to DIN 43 880, is compact with dimensions of 61 mm length, 90 mm height, and 17.5 mm width, enabling efficient space utilization on DIN rails.
This monitoring relay is ideal for industrial, automation, manufacturing, and electrical system applications where precise phase monitoring and control are essential. The relay features single-pole double-throw (SPDT) contact configuration for versatile switching.
It operates at a supply voltage of 400V AC with a contact current capacity of 3 amps. Mounts easily on DIN rails with robust screw terminal connections ensuring secure installation. Designed to comply with IEC 255 and VDE 0435 standards with certifications including CCC and CE.
Features an LED display indicating clockwise rotation detection for phase monitoring. Operates reliably within an ambient temperature range of up to 60°C. Compact dimensions: 61 mm length, 90 mm height, and 17.5 mm width allow space-efficient integration.
Housing is manufactured per DIN 43 880, providing durable and standardized mechanical protection. Explore a broad selection of Monitoring Relays and DIN rail mounted control devices at EnvMart for industrial electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching applications.
It operates at a supply voltage of 400V AC, suitable for various industrial power systems.
The relay has a contact current capacity of 3 amps, making it suitable for a range of applications.
This model has dimensions of 61 mm in length, 90 mm in height, and 17.5 mm in width, allowing for efficient space utilization on DIN rails.
It operates reliably within an ambient temperature range of up to 60°C.
The relay is designed for DIN rail mounting, ensuring easy installation and secure connections.
It is designed in accordance with IEC 255 and VDE 0435 standards and holds certifications including CCC and CE.
It features robust screw terminal connections, ensuring secure installation.
The relay has an IP rating of IP20 and IP40, indicating its level of protection against solid objects and moisture.
Yes, it is equipped with an LED display that indicates clockwise rotation detection for phase monitoring.
This monitoring relay is designed for three-phase electrical systems, enhancing its application in industrial settings.
The country of origin for this relay is Germany, reflecting its manufacturing standards.
