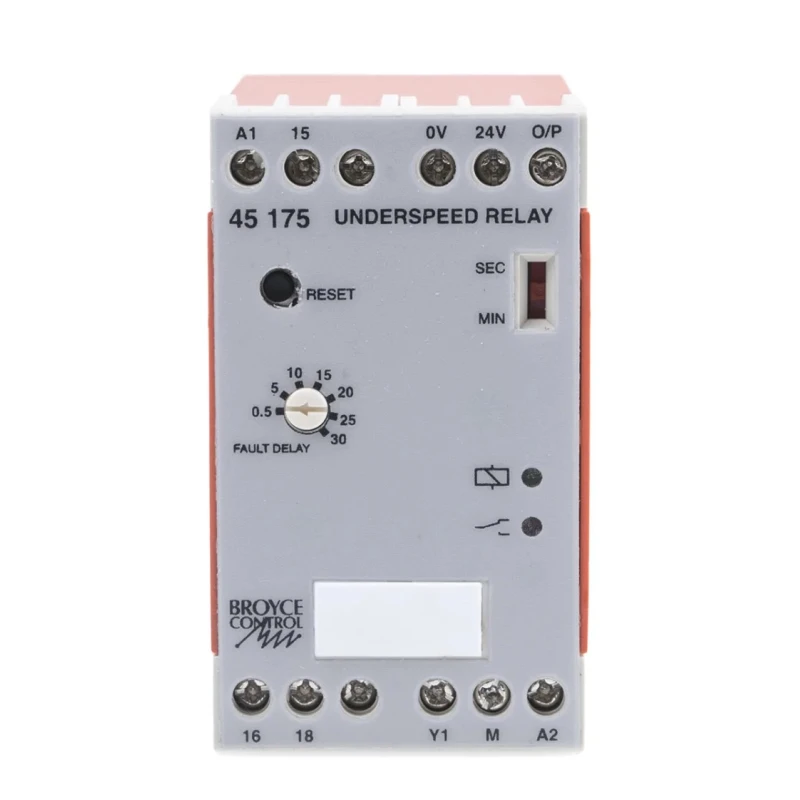

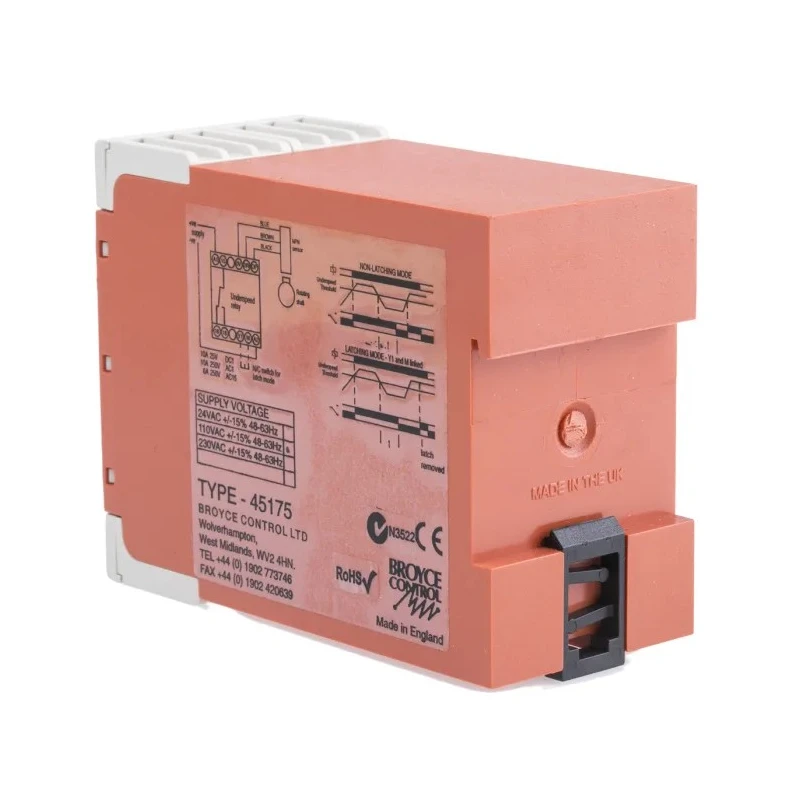

Broyce Control Monitoring Relay, DIN Rail Mount, 45175 110VAC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 78mm |
| Model | 45175 110VAC |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | 45 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | +60°C |
| Standards/Approvals | cUL, CSA, UL, IEC |
| Electrical Life | 1.5 x 105 operations at rated load |

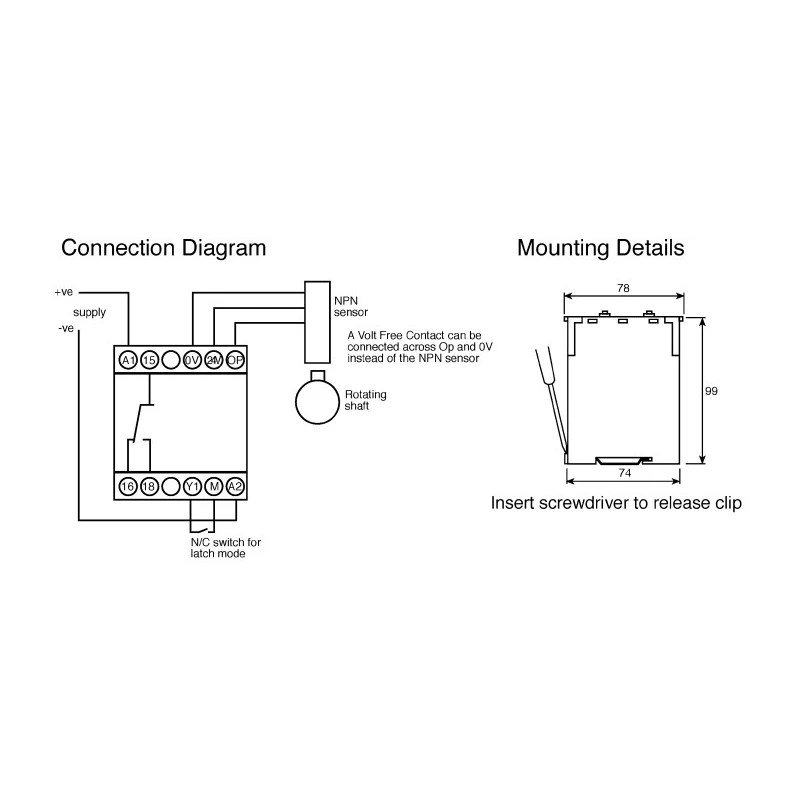

| Monitoring input | Pulse from NPN open collector proximity switch or volt-free contact |
Key Features
- The relay operates with a pulse input from NPN open collector proximity switch or volt-free contact.
- Features LED indication for operational status.
- Equipped with adjustable time delay for flexible control.
- Includes a latching facility for stable operation.
- Compact design with dimensions of 78mm height, 45mm width, and 99mm depth.
- Flame retardant construction to UL94 V0 standard enhances safety.
- Operates within a supply voltage variation range of 0.85 to 1.15 times the nominal voltage.
- Suitable for operating temperature ranges from -20°C to 60°C.
Product Description
Broyce Control 45175 110VAC Monitoring Relay is a specialized device designed for DIN Rail mounting, facilitating reliable monitoring in industrial, electrical automation, and control applications. Its compact dimensions of 78mm height and 45mm width allow efficient panel integration.
The relay accepts monitoring input pulses from NPN open collector proximity switches or volt-free contacts, ensuring versatile compatibility with various sensors and control systems. The LED indication provides clear visual feedback of the relay status, enhancing troubleshooting and maintenance processes.
Adjustable time delay and latching facility features supply additional flexibility and operational control, making it adaptable for varied automation scenarios. Built with flame retardant material conforming to UL94 V0, it ensures safety and durability in demanding environments.
This model operates reliably within a voltage range from 0.85 to 1.15 times the nominal voltage (110VAC) and supports operating temperatures from -20°C up to 60°C, making it suitable for diverse industrial settings. The device is rated for an electrical life of 150,000 operations at rated load, reflecting its robustness and long service life.
The monitoring relay is widely applied in electrical panels, manufacturing process control, automation systems, and condition monitoring, offering efficient control and protection.
The relay operates with a pulse input from NPN open collector proximity switch or volt-free contact. Features LED indication for operational status. Equipped with adjustable time delay for flexible control. Includes a latching facility for stable operation.
Compact design with dimensions of 78mm height, 45mm width, and 99mm depth. Flame retardant construction to UL94 V0 standard enhances safety. Operates within a supply voltage variation range of 0.85 to 1.15 times the nominal voltage.
Suitable for operating temperature ranges from -20°C to 60°C. Electrical life rated for 150,000 operations at rated load ensuring durability. Explore more in the Monitoring Relays category at EnvMart for efficient electronic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage variation range of 0.85 to 1.15 times the nominal voltage of 110VAC.
The relay has compact dimensions of 78mm in height, 45mm in width, and 99mm in depth.
It accepts monitoring input pulses from NPN open collector proximity switches or volt-free contacts, providing versatile compatibility.
The maximum operating temperature for this monitoring relay is 60°C.
It is built with flame retardant material conforming to UL94 V0 and is also approved by cUL, CSA, UL, and IEC standards.
The relay is rated for an electrical life of 150,000 operations at rated load, reflecting its robustness.
Yes, it features LED indication for operational status, providing clear visual feedback.
The minimum operating temperature for this model is -20°C.
This unit is designed for DIN Rail mounting, facilitating efficient panel integration.
It includes adjustable time delay and a latching facility for stable operation, allowing for flexible control.
It is widely applied in electrical panels, manufacturing process control, automation systems, and condition monitoring.
This monitoring relay belongs to the 45 series of Broyce Control products.
