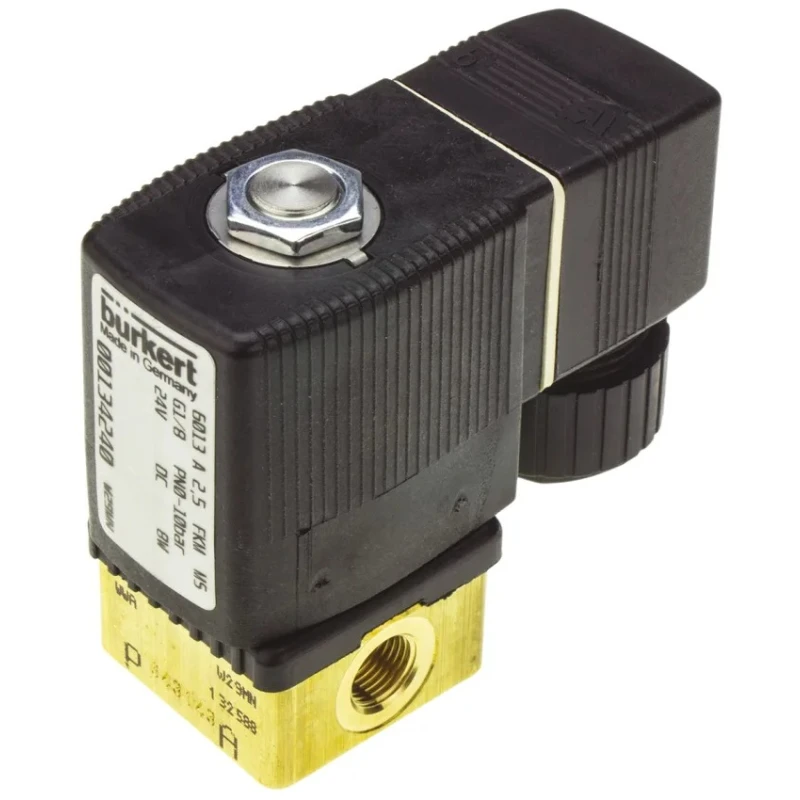

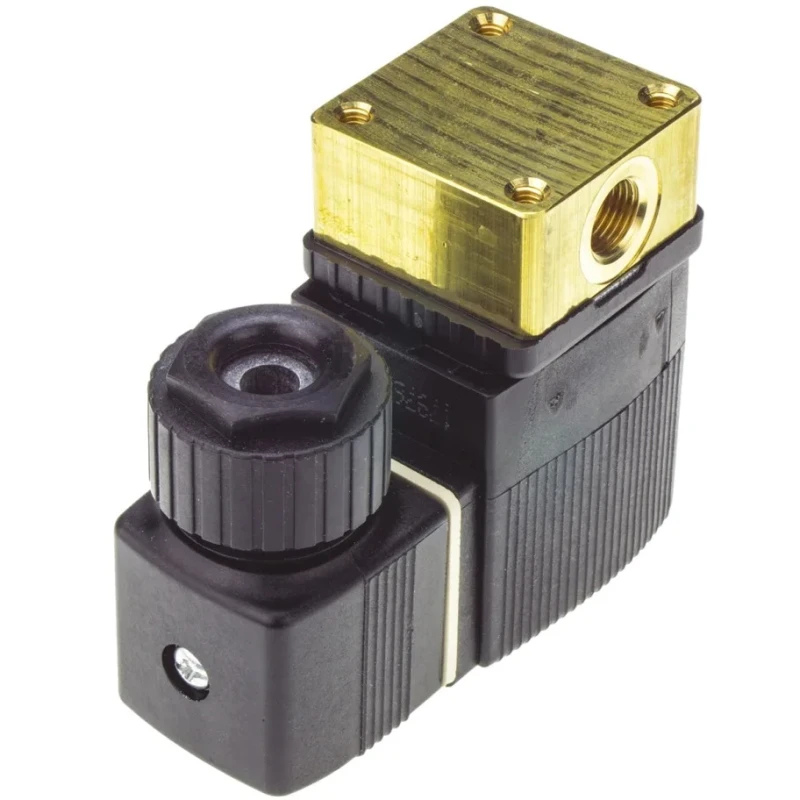

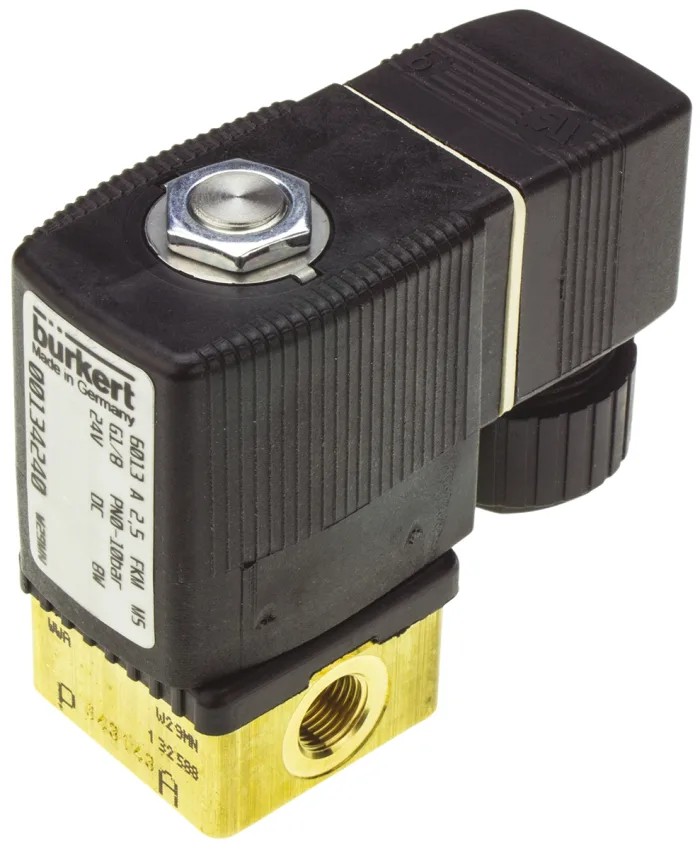

Burkert 2 Port NC Solenoid Valve, Brass Body, 24V DC, 3.18 mm Ports, 10 bar, Series 6013 134240
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 134240 |
| Series | 6013 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 2.5mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 3.18 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.16m³/h |
| Maximum Closing Time | 30ms |
| RS PRO Solenoid Valve, 2 Port, NC, 24V G1/8, G1/8RS Stock No. | 255-4147Brand: RS PRO |
Key Features
- The valve has a compact and direct-acting design suitable for industrial and fluid power applications.
- It offers a maximum operating pressure of 10 bar and operating temperatures from -10°C to 55°C.
- The valve is constructed with a brass body and uses high-quality FPM seal material for durability.

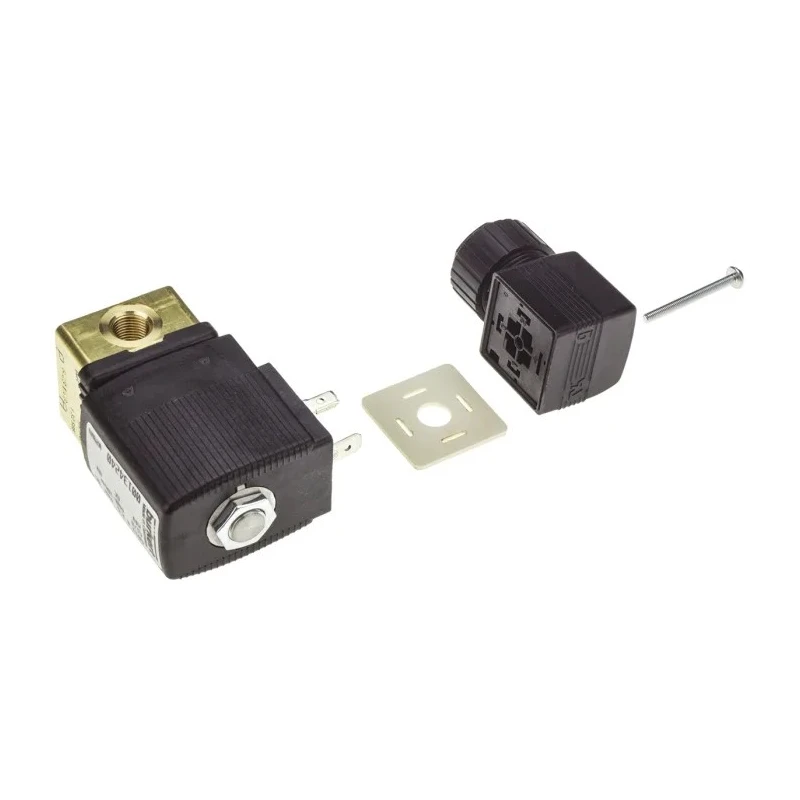

- Equipped with a modular coil system that can be locked in four 90° positions or moved freely as required.
- Power consumption is 8W (DC), with protection to IP65 using a DIN 43650C cable plug.
- Valve operation includes a spring return mechanism making it normally closed (NC).
- Its flow factor Kv is 0.16 m³/h with maximum opening and closing times of 20 ms and 30 ms respectively.
- Suitable for compressed air, natural gas, water, and hydraulic oil.
Product Description
Burkert 134240 is a two-way compact solenoid valve with a brass body and polyamide coil designed for industrial fluid power and HVAC applications. Operating at 24V DC, this solenoid valve features 2 ports with 3.18 mm inlet and outlet sizes, providing controlled fluid flow for liquids and neutral gases such as compressed air and natural gas.
The valve’s normally closed (NC) design uses a spring return for reliable operation when de-energised. Its compact size, brass construction, and high-quality FPM seal material ensure durable service even at a maximum operating pressure of 10 bar and temperatures ranging from -10°C to 55°C.
This model belongs to the Series 6013 modular direct-acting solenoid valve system, which allows easy coil replacement without removing the valve. The coil can be locked in four positions or freely rotated to fit installation requirements. Power consumption is 8W for DC, and it offers ingress protection rated to IP65 with a DIN 43650C cable plug.
The flow factor Kv of 0.16 m³/h and rapid response times (opening in 20 ms and closing in 30 ms) make this solenoid valve suitable for precise control in water treatment, HVAC, manufacturing, and laboratory fluid control systems.
Manufactured in Germany, the valve meets high standards of precision and reliability. This product is ideal for industrial, commercial, and laboratory use where durable and efficient solenoid valve performance is critical.
The valve consists of a brass body with female 3.18 mm inlet and outlet ports. It supports a maximum operating pressure of 10 bar. Operation temperature range is from -10°C to 55°C. Coil power consumption is 8W DC with IP65 protection rating.
The valve is a normally closed (NC) type with spring return mechanism. Flow factor Kv is 0.16 m³/h suitable for precise fluid control. Maximum opening and closing times are 20 ms and 30 ms respectively. Suitable for liquids, neutral gases, compressed air, natural gas, water, and hydraulic oil.
Part of the modular Series 6013 solenoid valve system for easy coil change and flexible orientation. Manufactured in Germany ensuring high-quality standards. Explore more industrial Solenoid Valves and valve fittings for your fluid power and pneumatic systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model operates within a temperature range of -10°C to 55°C.
It requires a power supply of 24V DC.
The inlet and outlet ports have a size of 3.18 mm.
The maximum opening time is 20 ms, and the maximum closing time is 30 ms.
This model is a normally closed (NC) solenoid valve with a spring return mechanism.
The valve features a brass body and high-quality FPM seal material.
Yes, it is suitable for compressed air, natural gas, water, and hydraulic oil.
The flow factor Kv is 0.16 m³/h.
Yes, it has an ingress protection rating of IP65.
This valve is manufactured in Germany.
This solenoid valve belongs to the Series 6013 modular direct-acting solenoid valve system.
