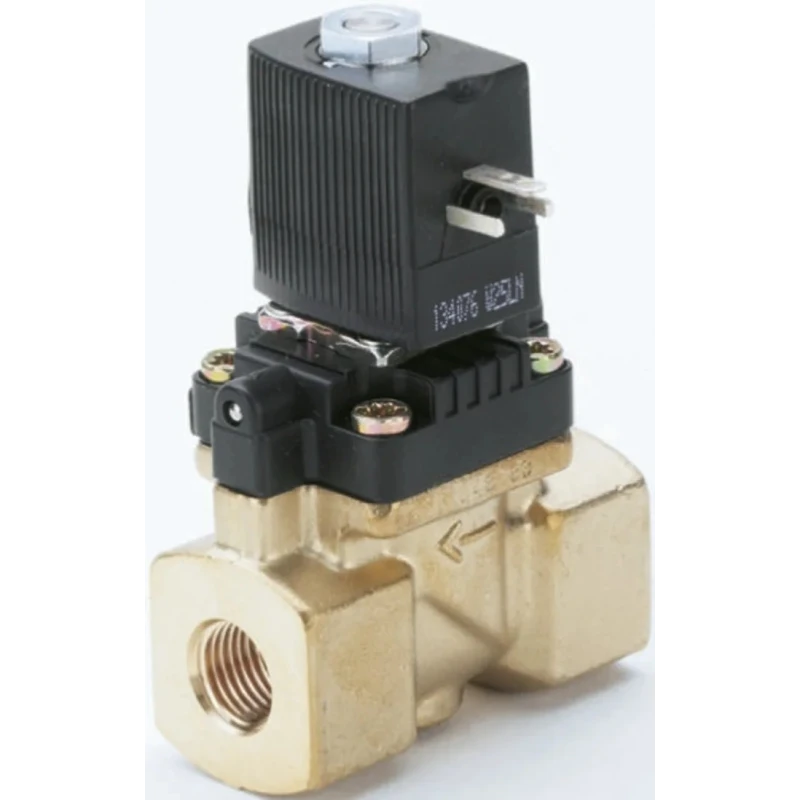

Burkert 2 Port Normally Closed Brass Body Solenoid Valve 230V ac 10 bar 20mm Orifice 140894

Burkert 140894 is a high-quality 2 port normally closed solenoid valve with a brass body designed to handle liquids and neutral gases in industrial applications. Operating at 230V ac, this solenoid valve offers robust performance and reliability for fluid power and control systems.

The valve features a polyamide coil and a separating servo membrane for efficient operation, with a servo-assist mechanism enhancing the valve's responsiveness. It is designed for total or no control applications where sealing and quick actuation are required.

The 20mm orifice diameter provides a flow factor Kv of 8.3 m³/h and supports operating pressures up to 10 bar. The valve is fitted with threaded inlet and outlet connections to facilitate easy installation in pipelines.

Designed for a temperature range from 0°C to 55°C, it is suitable for use with gas, air, water, oils, and alkaline or bleaching detergents, provided the medium is compatible with the NBR seal material. Maximum viscosity allowed is 22 mm²/s.

The valve opens within 350 milliseconds and closes within 600 milliseconds, making it ideal for rapid switching in automated industrial systems. It carries UR/CSA certification, assuring compliance with safety standards.

Originating from Germany, this Burkert model 140894 solenoid valve is engineered for durability and precision in demanding environments such as manufacturing, HVAC, water treatment, and chemical processing.

Constructed with brass body and polyamide coil for durability and reliability. Operates with 230V ac voltage suitable for industrial fluid control systems. Normally Closed (NC) valve type with servo-assisted membrane for fast response.

Orifice diameter of 20mm supports effective flow with a Kv value of 8.3 m³/h. Maximum operating pressure of 10 bar with temperature range from 0°C to 55°C ensures versatile use. Valve features threaded inlet and outlet connections for secure fitting.

Applicable for liquids, neutral gases, air, water, oils, and cleaning detergents compatible with NBR seal material. Opening and closing times are 350 ms and 600 ms respectively for responsive control. Certified to UR/CSA standards ensuring safety and compliance.

Made in Germany with high manufacturing quality and precision. Explore more Solenoid Valves and industrial valves from Burkert at EnvMart for reliable automation and fluid control solutions.
