Jaeger Industrial Circular Connector 7 Contacts Cable Standard Female Connector 6326 070 06

Jaeger 6326 070 06 Industrial Circular Connector is a premium 7-contact cable mount connector, female type, designed for robust industrial applications requiring reliable electrical connections. This circular connector features a standard size 1 housing with 1.6 mm diameter contacts made from nickel-plated aluminium alloy, providing excellent mechanical strength and corrosion resistance.

The connector supports a wide operating temperature range from -50°C to 100°C, making it suitable for harsh industrial, manufacturing, and automation environments. It utilizes a quick click bayonet locking mechanism that requires only one-sixth of a turn to fasten securely, ensuring ease of use while maintaining connection integrity during operations.

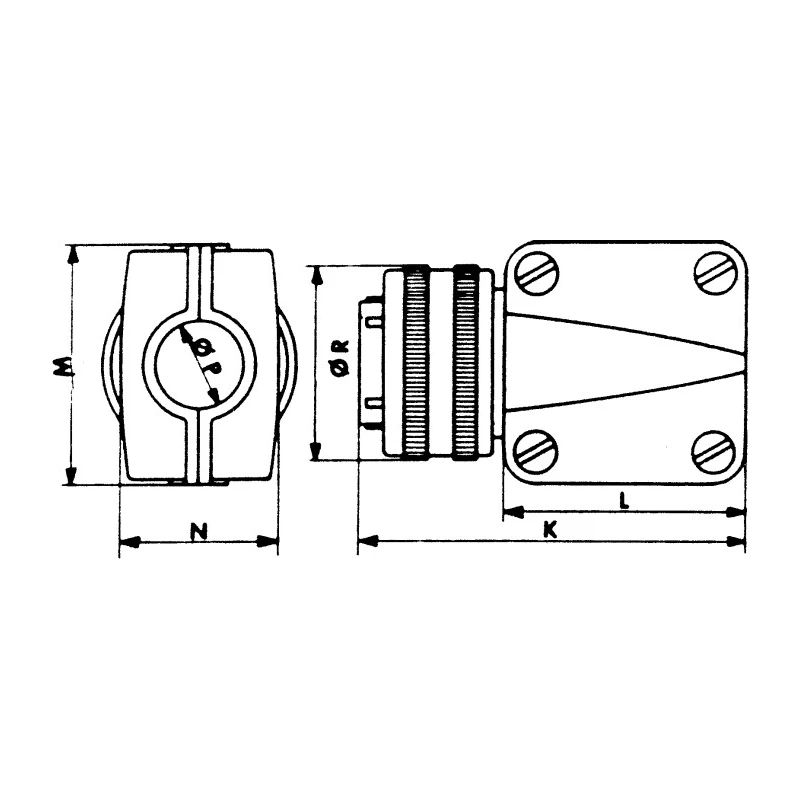

Termination is done by crimping the contacts to cables using compatible M22520-1/01 and M22520-1/02 pliers, facilitating efficient and reliable contact mounting. The connector’s design includes a square rear connector with three possible cable entry orientations, allowing the simultaneous use of multiple cable grips for improved cable management. Unused openings are sealed with original blanking plates to maintain environmental protection.

Manufactured in France, this connector conforms to the MIL-DTL-5015 standard, guaranteeing military-grade durability and quality for demanding applications in industrial control systems, machinery, instrumentation, and power distribution. The robust nickel-plated aluminium alloy shell delivers enhanced longevity for frequent connection cycles typical in industrial settings.

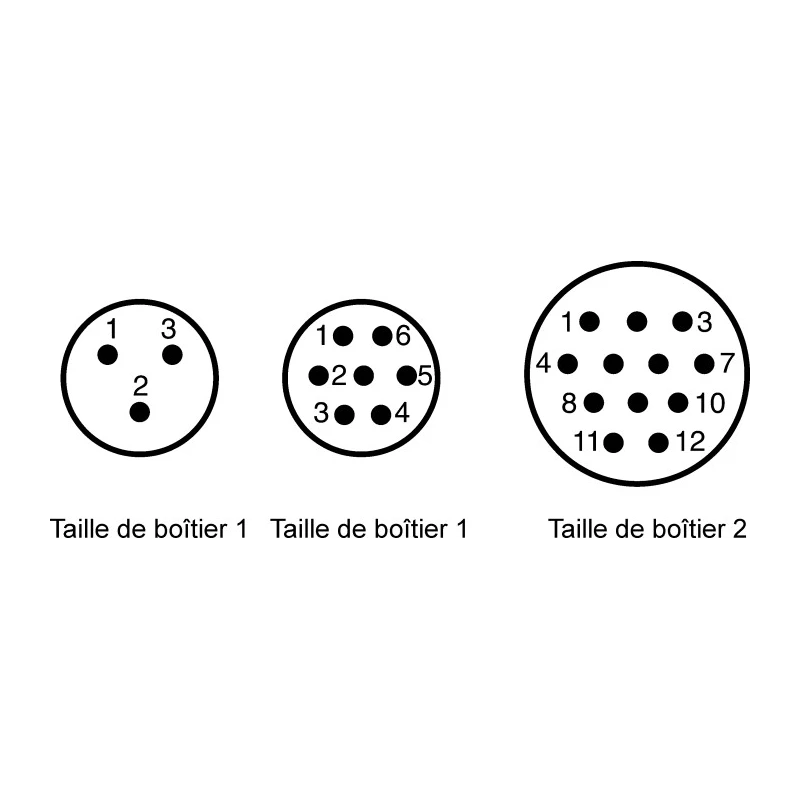

Constructed with nickel-plated aluminium alloy for corrosion resistance and durability. 7 contacts of 1.6 mm diameter housed in standard size 1. Wide operating temperature range: -50°C to 100°C. Quick click bayonet locking system with 1/6 turn mechanism.

Compatible with crimp termination using specified pliers. Square rear connector with three cable entry positions for enhanced cable routing. Complies with MIL-DTL-5015 military standard for rugged use. Female contact gender, suitable for reliable cable termination.

Made in France ensuring high-quality manufacturing standards.

This Industrial Circular Connector by Jaeger is ideal for use in industrial automation, manufacturing equipment, power distribution panels, test instrumentation, and other applications where dependable, rugged circular connectors are essential. Browse the Industrial Circular Connector category on EnvMart to explore a range of compatible connectors and accessories designed for high-performance industrial connectivity.
