BALLUFF Circular Connector 5 Contacts Cable 7/8 in Connector Plug Male IP67

Free Delivery in India | Lowest Global Shipping Charges

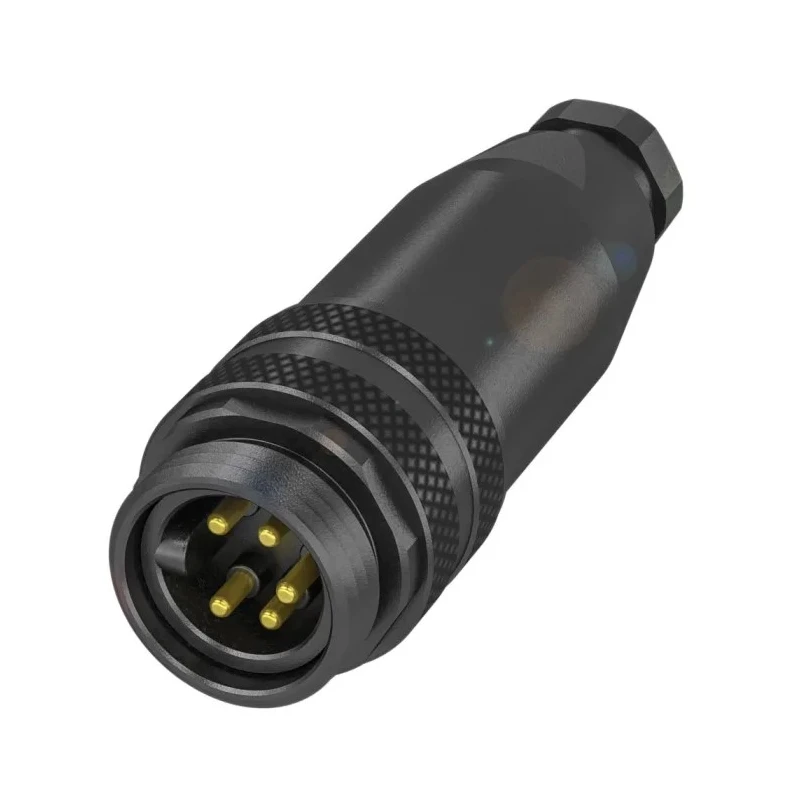

BALLUFF Circular Connector 5 Contacts Cable 7/8 in Connector Plug Male IP67

Name: BALLUFF Circular Connector 5 Contacts Cable 7/8 in Connector Plug Male IP67
Brand: BALLUFF
SKU: 298853
Price: 61.43 USD
Availability: InStock



Category Industrial Circular Connector Brand BALLUFF Condition New

Specifications

Country of Origin	Germany
Voltage	600, 600V ac
Brand	BALLUFF
Orientation	Straight
Current	9A
Model	IP67
IP Rating	IP67
Mount Type	Cable
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	BCC A335-0000-20-000-61X5A5-000
Termination Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Standards/Approvals	CE cURus EAC WEEE
Number of Contacts	5
Contact Gender	Male
Mating Type	Threaded
Connector Size	7/8 in
Plug/Socket	Plug

Key Features

The connector features a 7/8"-16 UN male straight 5-pin connection.
Rated current is 9.0 A at 40 °C ambient temperature.
Screw terminals support wire mounting for 0.14 to 1.5 mm² cross-section.
Cable diameter supported ranges from 8 to 10 mm.
Operating voltage is 600 V AC/DC with IP67 protection.
Temperature range is from -25 °C to 85 °C.
The housing is made of durable die cast zinc material.
Contacts are brass with screw termination type.

Product Description

BALLUFF BCC070K Circular Connector is a high-quality industrial connector designed for reliable transmission of signals, data, and power in challenging environments. This 5-contact cable connector features a 7/8 inch (7/8"-16 UN) male plug with a straight orientation. It is rated for a current of 9.0 A at 40 °C, making it suitable for robust electrical connections in industrial applications.

The connector uses screw terminals for wire mounting supporting wire cross-sections from 0.14 to 1.5 mm². It supports cable diameters between 8 and 10 mm, ensuring compatibility with common industrial cables. Operating voltage is rated at 600 V AC/DC, combined with an IP67 protection rating, making it dust-tight and protected against water immersion up to 1 meter depth for 30 minutes.

Designed to operate in extreme temperatures from -25 °C to 85 °C, the connector housing is crafted from die cast zinc for mechanical strength and corrosion resistance. The contact material is brass to ensure excellent conductivity and durability. The mating type is threaded for secure and vibration-resistant connections.

This model conforms to international safety and quality standards, including CE, cURus, EAC, and WEEE compliances, suitable for industrial, manufacturing, automation, and control gear applications.

The connector features a 7/8"-16 UN male straight 5-pin connection. Rated current is 9.0 A at 40 °C ambient temperature. Screw terminals support wire mounting for 0.14 to 1.5 mm² cross-section. Cable diameter supported ranges from 8 to 10 mm.

Operating voltage is 600 V AC/DC with IP67 protection. Temperature range is from -25 °C to 85 °C. The housing is made of durable die cast zinc material. Contacts are brass with screw termination type. Mating type is threaded with straight orientation.

Complies with CE, cURus, EAC, and WEEE standards.

This connector is ideal for Industrial Circular Connector requirements, providing secure, high-quality, and durable connectivity under demanding conditions. Discover more industrial connectors and accessories on EnvMart.
