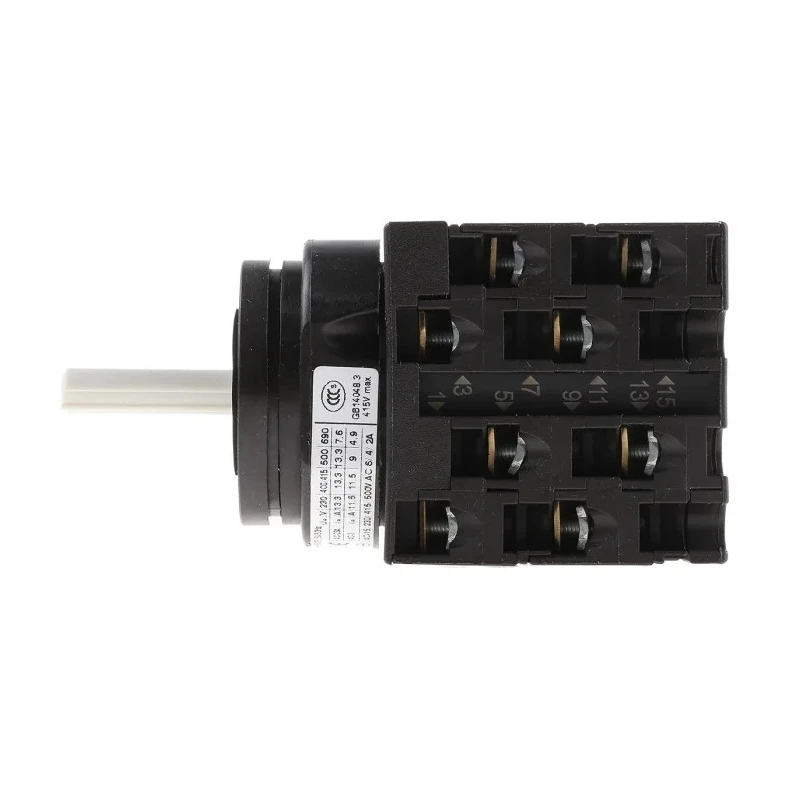

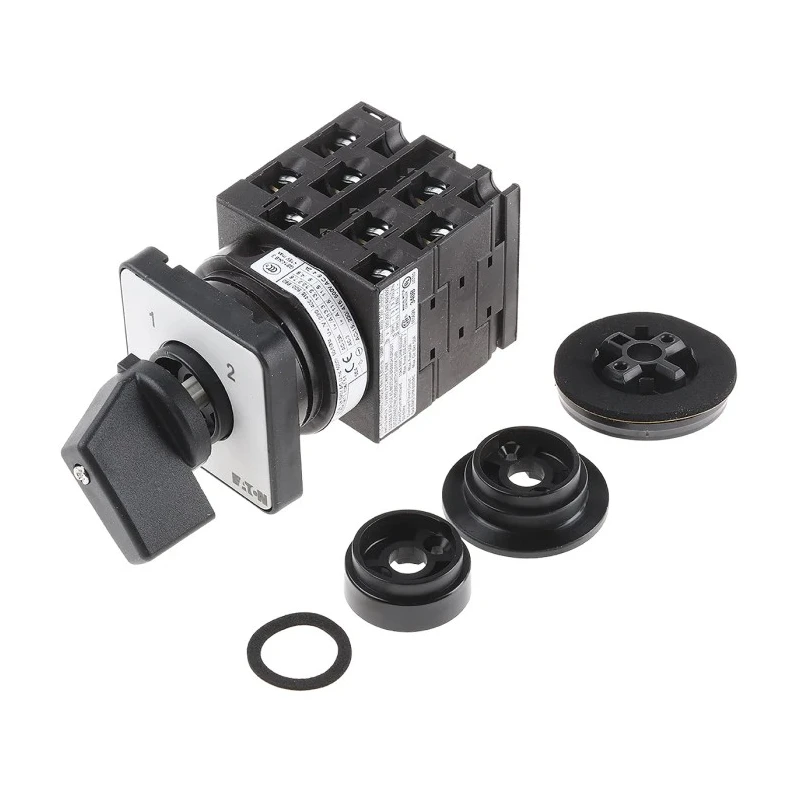

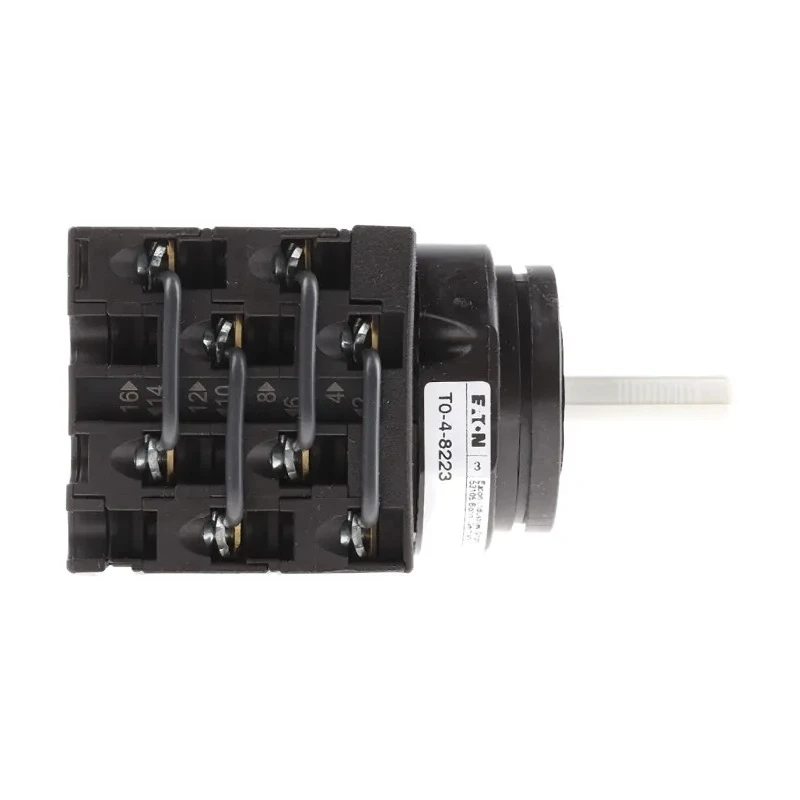

Eaton 2 Position 90° Toggle Actuator Cam Switch 20A 690V AC Flush Mount 78627324 T0-4-8223/E/EZ-P1(RS257-9558)

Eaton 78627324 T0-4-8223/E/EZ-P1(RS257-9558) 2 Position 90° Toggle Actuator Cam Switch is professionally engineered for demanding industrial applications requiring reliable manual switching control. Rated for 20A contact current and 690V AC contact voltage, this cam switch supports efficient single-phase operation with a 4-pole configuration.

The toggle actuator mechanism enables straightforward manual changeover functionality, while its flush mount design facilitates seamless equipment integration. Designed to operate across ambient temperatures from -25°C up to 50°C, it withstands fluctuating environmental conditions encountered in industrial settings.

With an IP65 rating, this cam switch is resistant to ingress of dust and water, extending its operational life in harsh or outdoor environments. The switch uses screw-type terminals which provide secure and convenient wiring connectivity, enhancing installation efficiency.

The unit complies with IEC/EN 60947 electrical standards and holds IECEx certification for hazardous area classification, ensuring safe and compliant operation in controlled environments. Mechanical durability is rated for up to 1,000,000 operations, confirming its long-lasting performance.

Its compact form factor with dimensions of 48mm length, 48mm width, and 100mm depth enables easy placement within control panels and machinery. Featuring a 2-position and 4-pole layout, it allows simultaneous control of multiple circuits, supporting complex industrial switching needs such as motor control and automation systems.

Features a 4-pole, 2-position design for versatile circuit control. Flush mount and toggle actuator provide easy manual operation and seamless integration. Operates at temperatures from -25°C to 50°C for diverse environments.

IP65 rated for dust and water protection suitable for harsh conditions. Constructed for a mechanical life of 1,000,000 operations ensuring durability. Screw type terminals simplify wiring and installation procedures. Complies with IEC/EN 60947 standards and IECEx hazardous area certification.

Compact dimensions: 48mm length, 48mm width, 100mm depth for convenient mounting.

Suitable for industrial machinery, control panels, and motor automation, this Eaton Cam Switch delivers reliable manual changeover switching for safe and efficient electrical control. Explore more electrical switch components and automation devices at EnvMart for comprehensive industrial solutions.
