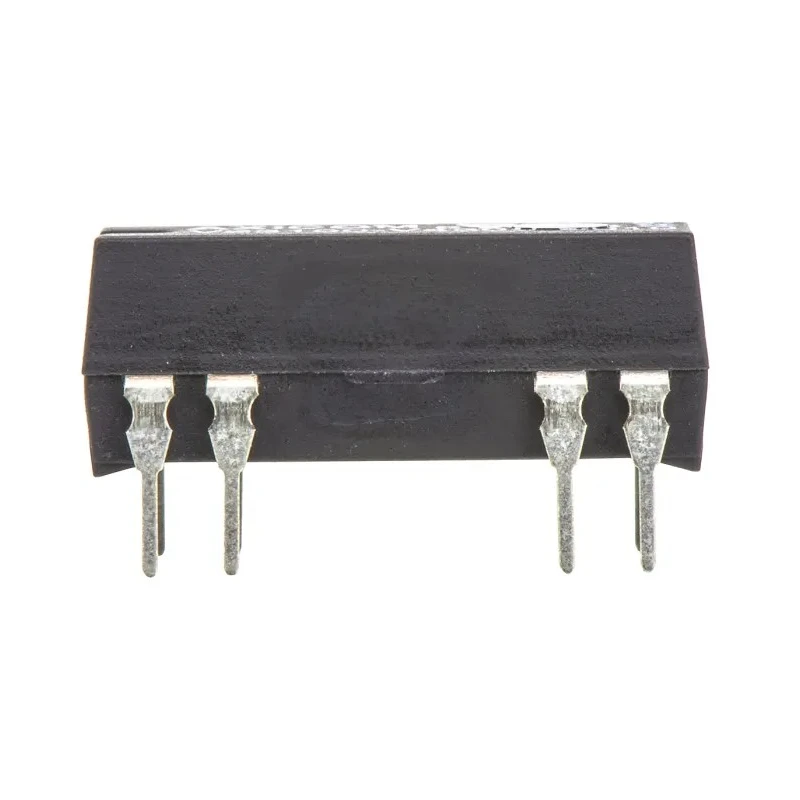

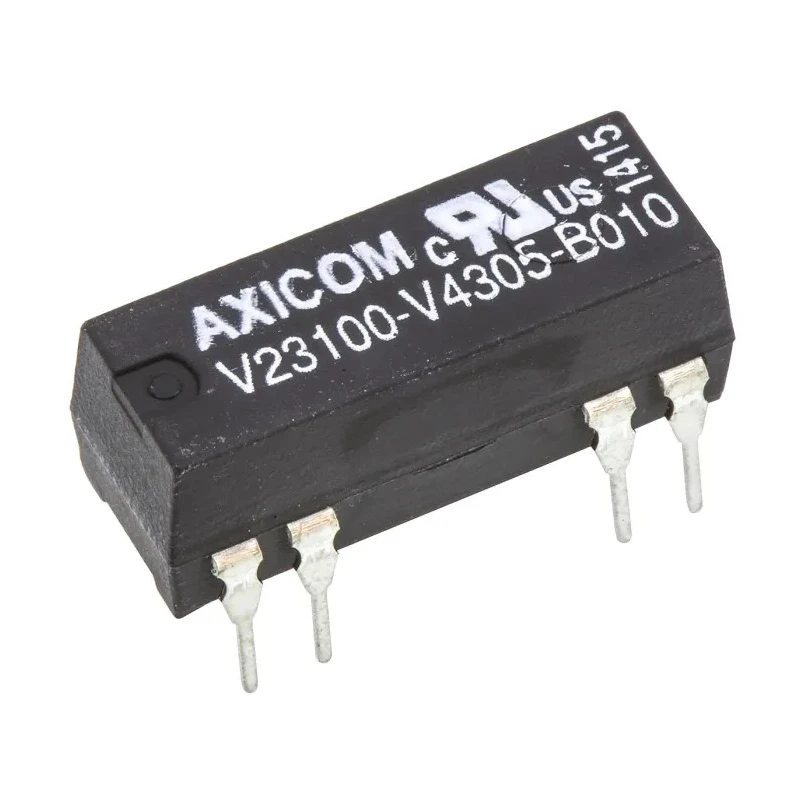

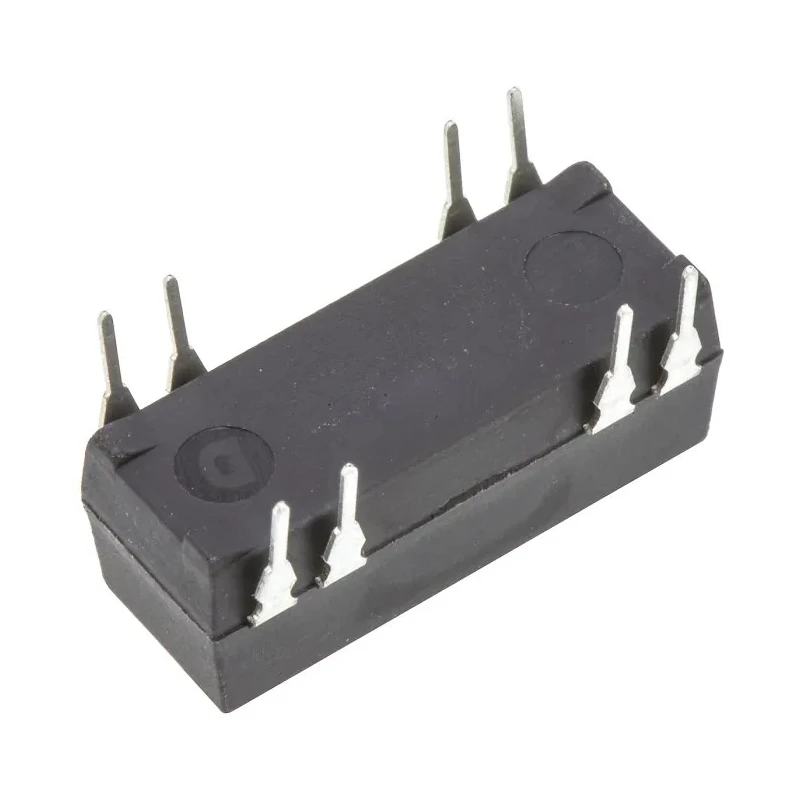

TE Connectivity Reed Relay 5V DC Coil DPST 200V DC Max 200 Ω 125W Coil Power 1-1393763-9
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Height | 7.5mm |
| Length | 19.3mm |
| Operating Time | 0.15ms |
| Series | V23100V4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 150mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 200Ω |
| Coil Power | 125W |
| TE Connectivity Reed Relay, 5V dc Coil, DPST, 200V dc Max, 200 ΩBrand | TE Connectivity |
Key Features
- Features a coil resistance of 200 Ω and coil power of 125W.
- Designed with PCB terminal type for easy mounting.
- Operating temperature range from -40°C to 85°C.
- Delivers low contact resistance of 150mΩ for efficient switching.
- Boasts a fast operating time of 0.15 milliseconds.
- Constructed for monostable operation with no latching.

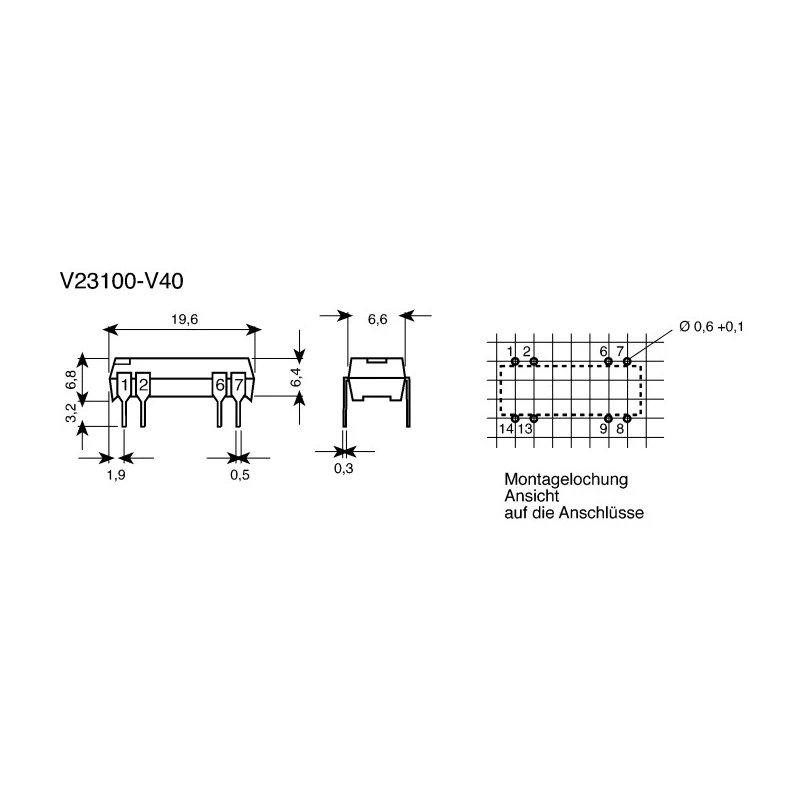

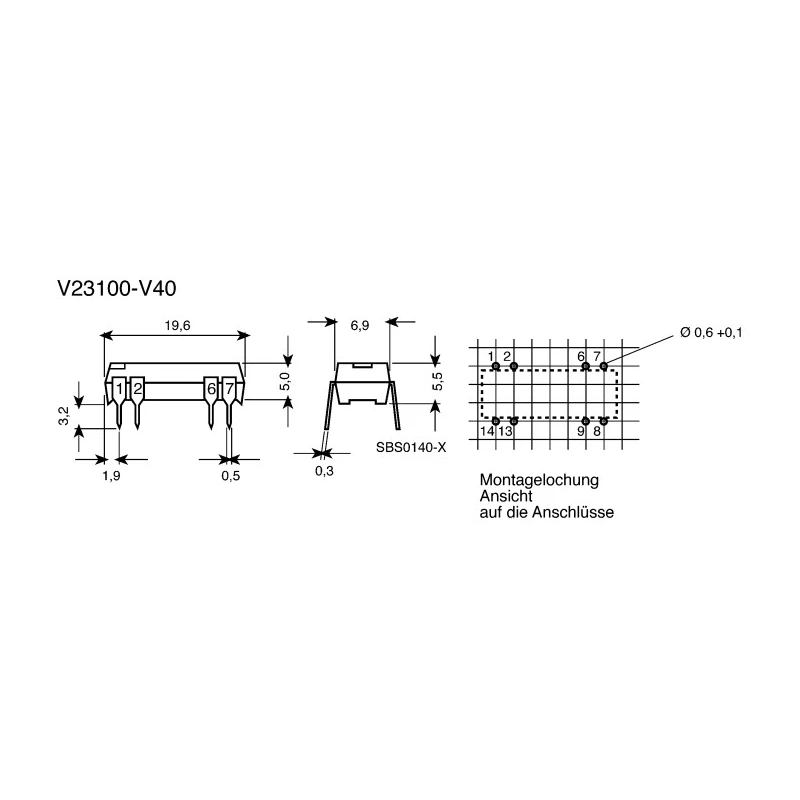

- Measures 19.3 mm in length and 7.5 mm in height.
- Complies with UL standards ensuring reliability and safety.
Product Description
TE Connectivity 1-1393763-9 Reed Relay offers precise and reliable switching with a 5V DC coil voltage and DPST (Double Pole Single Throw) contact configuration. It supports switching voltages up to 200V DC and delivers a coil power of 125W, suitable for various industrial and electrical automation applications.
This reed relay features a coil resistance of 200 Ω and PCB terminal type ensuring secure and straightforward integration into PCB layouts. It operates efficiently within a temperature range of -40°C to 85°C, making it suitable for demanding environments.
With an operating time of just 0.15 milliseconds and a contact resistance of 150mΩ, this relay ensures low noise and quick response in signal switching tasks. Its monostable design (non-latching) enhances safety and reliability in control systems.
Measuring 19.3 mm in length and 7.5 mm in height, it is compact and ideal for space-constrained electronic assemblies. Adhering to UL approval standards, it meets international safety and quality requirements.
Manufactured in Germany, this relay is built to high-quality standards, making it ideal for applications in industrial automation, signal conditioning, electrical controls, and instrumentation.
Features a coil resistance of 200 Ω and coil power of 125W. Designed with PCB terminal type for easy mounting. Operating temperature range from -40°C to 85°C. Delivers low contact resistance of 150mΩ for efficient switching.
Boasts a fast operating time of 0.15 milliseconds. Constructed for monostable operation with no latching. Measures 19.3 mm in length and 7.5 mm in height. Complies with UL standards ensuring reliability and safety. Manufactured in Germany ensuring high build quality.
This TE Connectivity Reed Relay is ideal for integration in industrial, laboratory, HVAC, manufacturing, and electrical systems requiring robust and precise relay switching performance. Explore more relays and signal conditioning components within EnvMart to suit your specific project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V DC.
It supports switching voltages up to 200V DC.
The coil power rating is 125W.
This relay features a DPST (Double Pole Single Throw) contact configuration.
It measures 19.3 mm in length and 7.5 mm in height.
The operating temperature range is from -40°C to 85°C.
It delivers a low contact resistance of 150mΩ.
The relay has a fast operating time of 0.15 milliseconds.
It is designed with a PCB terminal type for easy mounting.
This relay complies with UL standards, ensuring reliability and safety.
It is manufactured in Germany.
It is suitable for industrial automation, signal conditioning, electrical controls, and instrumentation.
