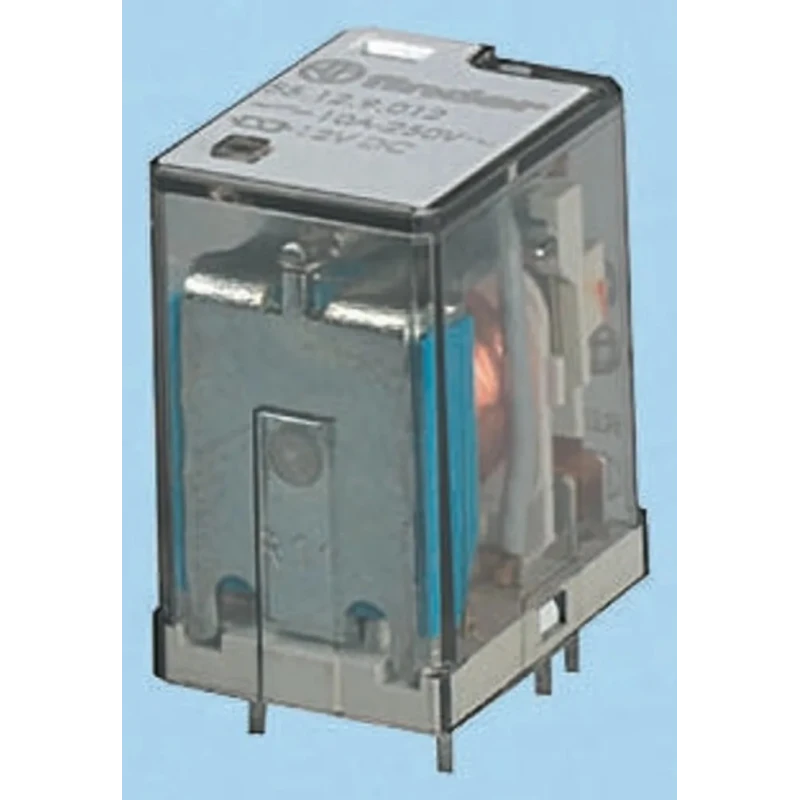

Finder Power Relay 12V DC Coil Voltage 10A Switching Current 3PDT PCB Mount 55.13.9.012.0000

Finder brand power relay model 55.13.9.012.0000 is a 3PDT configuration switching device with a 12V DC coil voltage and 10A maximum switching current. Designed for PCB mounting with solder terminals, it supports both AC and DC switching applications with a switching AC voltage rating of 400V and DC voltage rating of 220V. This relay benefits from silver alloy contacts which provide excellent conductivity and extended durability, making it suitable for demanding industrial environments.

Compact in size, measuring 27.7mm in length, 20.7mm in width, and 35.8mm in height, it efficiently saves space on printed circuit boards. The coil resistance is 140 ohms with a power consumption of 1 watt, ensuring energy-efficient operation. This relay performs reliably across a wide temperature range of -40°C to +85°C and complies with RoHS environmental standards.

Featuring a robust dielectric strength of 4 kV, the relay offers excellent insulation and safety margins. It has a mechanical endurance rated for up to 10 million cycles, making it highly durable for continuous operation in automation, HVAC, power distribution, and robotic control systems.

Single coil design simplifies integration into various control systems. Through-hole solder terminals provide secure PCB mounting stability. Silver alloy contacts ensure superior switching performance and lifespan. Versatile switching capability for AC (400V) and DC (220V) voltages.

Wide operating temperature range suits industrial and commercial environments. Compact dimensions facilitate efficient PCB layout and design. Low coil power of 1W supports energy-efficient usage. RoHS compliant for environmentally responsible applications.

High dielectric strength enhances safety at 4 kV isolation voltage. Long mechanical lifecycle supports high reliability in industrial automation.

This Finder Power Relay is manufactured in Italy and is suitable for industrial automation, power control, HVAC system switching, and robotic applications requiring reliable and durable relay switching performance. Browse more Power Relays and related components in the Electronics & Electricals category at EnvMart for your next project.
