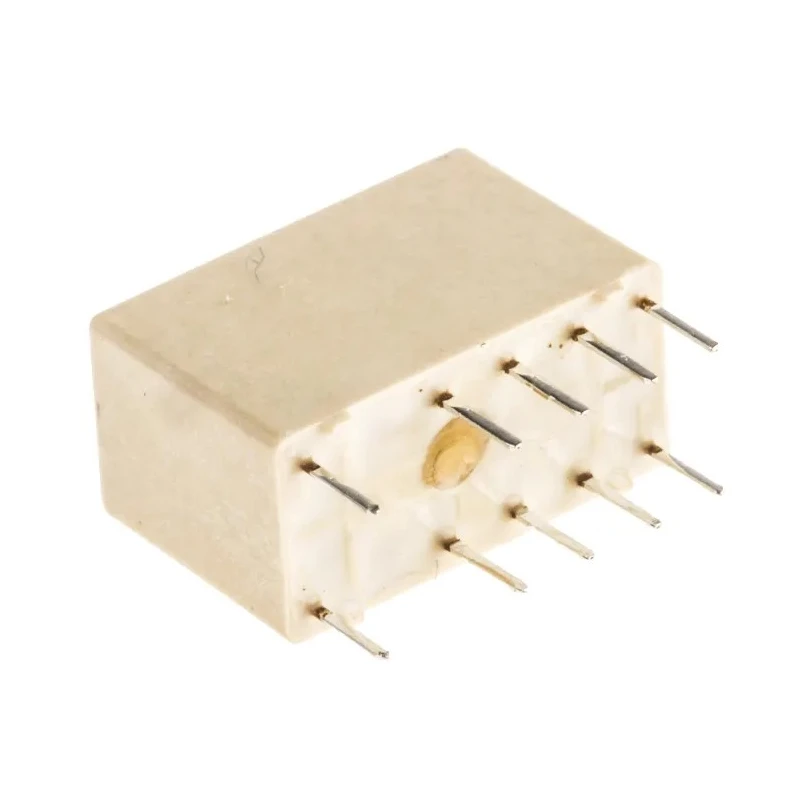

TE Connectivity Signal Relay PCB Mount DPDT 24V DC Coil 2A Switching Current V23079B1205B301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079B1205B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4114Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- Features bifurcated, gold plated contacts ensuring reliable and corrosion-resistant switching performance.
- Compact dimensions of 14.5mm length, 7.2mm width, and 9.8mm height for space-saving circuit designs.
- Operates within a temperature range of -40°C to 85°C, suitable for industrial environments.
- Coil resistance of 4114Ω with low coil power consumption of 140mW for energy efficiency.
- Immersion cleanable and compliant with RoHS standards and V-0 flammability classification for safety.
- Surge capability meets Telcordia TR-NWT-001089 and IEC 60950 standards, ensuring durability under electrical stresses.
- Ideal for communications, consumer electronics, office, control, medical, and automotive equipment applications.
Product Description
TE Connectivity V23079B1205B301 is a high sensitivity Signal Relay from the Axicom P2 V23079 Series, engineered for PCB mounting and telecom and signal relay applications. It operates with a 24V DC coil voltage and can switch currents up to 2A with a DPDT contact configuration, making it highly versatile for compact and reliable electronic switching solutions.
This miniature relay features bifurcated gold plated contacts for enhanced conductivity and reduced wear, with immersion cleanable construction rated RTIII and IP67 protection. The device meets the V-0 flammability classification, emphasizing its reliability and safety within demanding industrial and electronic environments.
Its coil resistance of 4114 ohms and power consumption of 140mW contribute to its low power usage, suitable for energy-conscious designs. The relay withstands surge conditions as specified by Telcordia TR-NWT-001089 and IEC 60950, ensuring operation stability against transient voltages.
Compact with dimensions 14.5mm (L) x 7.2mm (W) x 9.8mm (H), it fits space-constrained PCB layouts effectively. Operating temperature spans from -40°C to 85°C, allowing use in diverse industrial and commercial settings.
Applications include communications equipment such as PABX and VOIP systems, consumer electronics including set-top boxes and Hi-Fi systems, office and control equipment, medical devices, and automotive electronics. The PCB solder terminal mount facilitates secure electrical connections.
Features bifurcated, gold plated contacts ensuring reliable and corrosion-resistant switching performance. Compact dimensions for space-saving circuit designs. Operating temperature range of -40°C to 85°C suitable for industrial environments.
Low coil power consumption of 140mW promotes energy efficiency. RoHS compliant with V-0 flammability classification for safety. Surge capability meets Telcordia and IEC standards for durability. Ideal for communications, consumer electronics, office, control, medical, and automotive equipment.
This TE Connectivity Signal Relay offers a reliable, low power, and compact switching solution for industrial, telecommunications, commercial, and medical electronics applications. Explore EnvMart’s extensive relays and contactors category for more industrial relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 2A, making it suitable for various applications requiring reliable switching performance.
This model has compact dimensions of 14.5mm in length, 7.2mm in width, and 9.8mm in height, allowing for space-saving designs on PCBs.
The relay operates at a coil voltage of 24V DC, which is standard for many electronic applications.
The coil resistance of the relay is 4114Ω, contributing to its low power consumption.
It has a low coil power consumption of 140mW, promoting energy efficiency in designs.
The relay operates within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
This model features a DPDT (Double Pole Double Throw) contact configuration, providing versatility in switching applications.
Yes, it is RoHS compliant and meets the V-0 flammability classification for safety in electronic applications.
The relay can switch DC voltages up to 220V and AC voltages up to 250V, making it versatile for different applications.
The relay features gold plated contacts, which enhance conductivity and reduce wear over time.
This model is designed for PCB mounting, facilitating easy integration into electronic circuits.
It is ideal for communications, consumer electronics, office equipment, medical devices, and automotive electronics.
