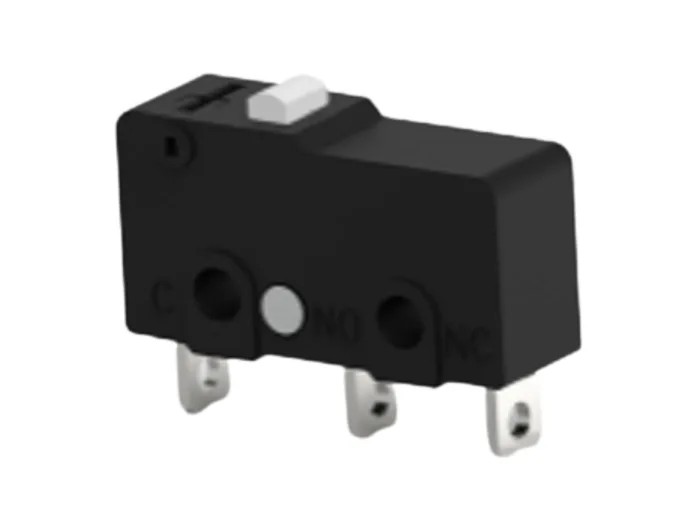

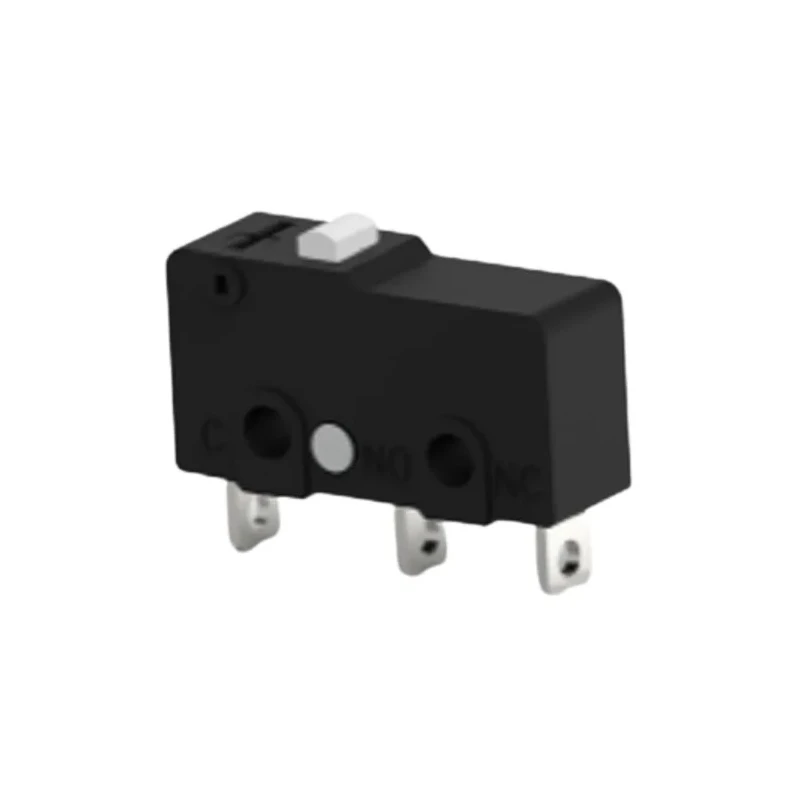

TE Connectivity Pin Plunger Snap Action Micro Switch Solder Terminal 3A 250V AC 30V DC SPDT SAJ25YXPP0147SDTSEQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ25YXPP0147SDTSEQ |
| Series | SAJ2 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 10000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- The switch actuator type is a pin plunger for snap action operation.
- Designed with solder terminals for reliable connectivity.
- Operates under an operating force of 1.47 Newtons.
- Operates within a temperature range of -40°C to 75°C.
- Electrical rating includes 3A contact current with SPDT configuration.
- Mechanical life rated for 10 million operating cycles.
- Conforms to RoHS standards ensuring compliance and safety.
- Widely used in home appliances, consumer electronics, and industrial automation.
Product Description
TE Connectivity SAJ25YXPP0147SDTSEQ Pin Plunger Snap Action Micro Switch is a highly reliable miniature switch designed to convert mechanical action into electrical signals with a snap action mechanism. Its pin plunger actuator and solder terminal type make it suitable for precise control applications.
Rated for 3 Amperes at 250 Volts AC and 30 Volts DC, this micro switch offers a single-pole double-throw (SPDT) contact configuration that supports a broad range of electrical control needs in demanding environments.
This switch operates effectively between -40°C to 75°C, ensuring dependable performance even under challenging temperature conditions. Its mechanical life expectancy of 10 million cycles attests to its robustness and long service duration.
Manufactured in China and compliant with RoHS, it meets international standards for safety and environmental responsibility.
The sub-miniature size of this micro switch makes it ideal for use in existing designs without requiring significant modifications. Its applications span home appliances, consumer electronics, factory automation, and other domestic and industrial applications.
The actuator type is pin plunger, providing precise snap action operation. Solder terminals enable dependable electrical connections. The switch supports a 3A contact current with SPDT contact configuration. Operating force required is 1.47N for actuation.
Mechanical life rated at 10 million cycles ensures long-lasting durability. Designed to withstand temperature ranges from -40°C to 75°C for versatile usage. Conforms to RoHS standards promoting environmental compliance.
This TE Connectivity micro switch is a vital component for electric control systems in industrial automation, HVAC controls, manufacturing equipment, and household appliances. It offers excellent repeatability and reliability in switching operations, making it a trusted choice among engineers and designers.
Explore more high-quality Micro Switches and electrical components within EnvMart's Electronics & Electricals catalog for your industrial and commercial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has an electrical rating of 3A at 250V AC and 30V DC, making it suitable for a variety of electrical control applications.
It operates effectively within a temperature range of -40°C to 75°C, allowing it to function in diverse environmental conditions.
The switch features a pin plunger actuator, which is designed for snap action operation, providing precise control.
This model is rated for a mechanical life of 10 million operating cycles, indicating its long service duration.
The switch requires an operating force of 1.47 Newtons for actuation, ensuring reliable performance during operation.
It is equipped with solder terminals, which provide dependable electrical connectivity for various applications.
Yes, it conforms to RoHS standards, ensuring compliance with environmental and safety regulations.
This model is manufactured in China, adhering to international manufacturing standards.
The switch features a single-pole double-throw (SPDT) contact configuration, suitable for a range of electrical control needs.
It is widely used in home appliances, consumer electronics, industrial automation, and HVAC controls, among other applications.
This model is classified as a miniature micro switch, making it suitable for compact designs without significant modifications.
The maximum AC voltage rating for this switch is 250V, allowing it to be used in various AC applications.
