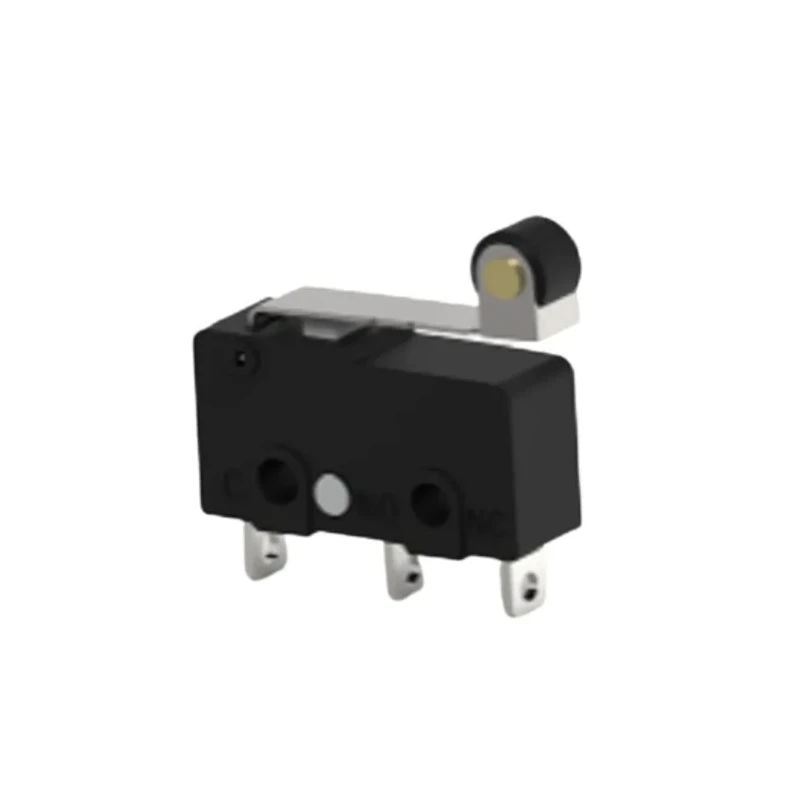

TE Connectivity Wheel Snap Action Micro Switch, Solder Terminal, 3A, 250 V AC, 30 V DC, SPDT SAJ25YXWHL147SDTSEQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ25YXWHL147SDTSEQ |
| Series | SAJ2 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Wheel |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 10000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- This miniature micro switch features a wheel-type actuator for precise mechanical to electrical conversion.
- Designed for high reliability with a mechanical life of 10 million cycles.
- Operates safely between -40 degrees Celsius and 75 degrees Celsius.
- Suitable for applications in home appliances, consumer electronics, and factory automation.
- Complies with RoHS standards, ensuring environmental safety.
- Features a contact current rating of 3 amperes for robust switching performance.
- Contact configuration is Single Pole Double Throw for versatile circuit control.
- Terminal type is solder, facilitating secure electrical connections.
Product Description
TE Connectivity SAJ25YXWHL147SDTSEQ wheel snap action micro switch with solder terminal offers a reliable conversion of mechanical actuation into electrical signals. Rated for 3 amperes with contact voltages of 250 V AC and 30 V DC, this miniature switch supports a Single Pole Double Throw (SPDT) contact configuration.
Engineered for high durability, this microswitch features a mechanical life of 10 million cycles and operates efficiently within a temperature range of -40 °C to 75 °C. The wheel actuator type enables precise and repeatable switching action, suitable for a wide variety of industrial and domestic applications including home appliances, consumer electronics, and factory automation systems.
Manufactured under the SAJ2 series, this snap action micro switch is RoHS compliant, ensuring it meets environmental directives for hazardous substances. The solder terminal type allows solid and permanent electrical connections. This product is made in China and is ideal for installations requiring miniature, reliable electrical switching components.
This miniature micro switch features a wheel-type actuator for precise operations. Durable solder terminal design ensures secure electrical connections. Reliable contact current rated at 3 amperes with SPDT contact configuration.
Mechanical life extends up to 10 million cycles for sustained use. Wide operating temperature range from -40 °C to 75 °C. Suitable for home appliances, factory automation, and consumer electronics. Meets RoHS compliance for environmental safety.
Compact dimensions facilitate easy integration into existing designs.
This TE Connectivity microswitch is essential for various electrical control applications requiring precise switching functions. Browse the complete range of Micro Switches and electrical components on EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this micro switch is 3 amperes.
This model is rated for 250 V AC and 30 V DC.
The mechanical life of this switch extends up to 10 million cycles.
It operates efficiently within a temperature range of -40 °C to 75 °C.
This switch features a wheel-type actuator for precise mechanical to electrical conversion.
The contact configuration is Single Pole Double Throw (SPDT).
It has a solder terminal type, facilitating secure electrical connections.
Yes, this micro switch complies with RoHS standards, ensuring environmental safety.
The operating force required for this switch is 1.47 N.
This product is manufactured in China.
It is suitable for applications in home appliances, consumer electronics, and factory automation.
This micro switch belongs to the SAJ2 series.
