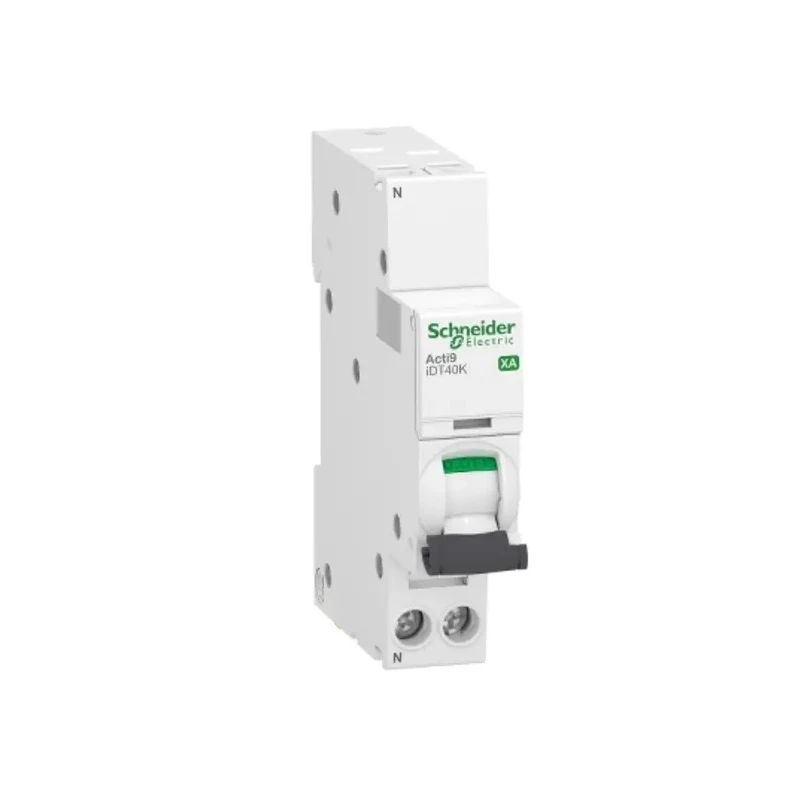

Schneider Electric Acti9 iDT40K XA Miniature Circuit Breaker, 1-Pole, 10A, Type C, 230V AC, 4500A Breaking Capacity A9PK1610

Schneider Electric A9PK1610 Miniature Circuit Breaker is a high-quality 1-pole device engineered to provide effective protection against overloads and short circuits in electrical installations. It features thermal magnetic trip unit technology with a breaking capacity of 4500A, ensuring robust protection for electrical circuits operating at 230V AC.

This miniature circuit breaker measures 18mm in width, 74mm in depth, and 85mm in height, allowing efficient space utilization and easy mounting on DIN rails. The toggle switch actuator is designed for straightforward manual control with an ON/OFF position indicator and a trip indication feature for quick diagnostics.

It complies with international safety standards EN/IEC 60947-2 and EN/IEC 60898-1, underscoring its reliability and safety in residential, commercial, and industrial electrical systems. The device boasts an impulse withstand voltage of 4kV and is tested for electrical durability of up to 20,000 switching cycles, ensuring long-term operational reliability.

The breaker is suitable for challenging ambient conditions, with operational temperature ranges from -25°C up to 70°C and a relative humidity tolerance of 95% at 55°C. Additionally, the padlockable feature enhances security measures for controlled electrical installations.

Typical applications of the Schneider Electric Acti9 iDT40K XA Miniature Circuit Breaker include industrial automation, electrical distribution panels, residential safety, and commercial building wiring protection. Its robust design and compliance with global standards make it ideal for electrical and automation professionals seeking dependable circuit protection solutions.

Designed with a 1-pole configuration for single circuit protection. Rated current is 10A with Type C tripping characteristics suitable for general applications. Operates at a rated AC voltage of 230V AC ensuring compatibility with standard electrical systems.

Compact dimensions with 18mm width, 74mm depth, and 85mm height for easy DIN Rail mounting. Equipped with a toggle switch actuator and trip indicator for visual status monitoring. Thermal magnetic tripping mechanism ensures protection against overloads and short circuits.

Compliant with EN/IEC 60947-2 and EN/IEC 60898-1 safety standards for quality assurance. Impulse withstand voltage rating of 4kV enhances durability under electrical stress. Electrical durability rated for 20,000 operation cycles for long service life.

Suitable for ambient operating temperatures from -25°C to 70°C and relative humidity of 95% at 55°C. Padlockable design provides enhanced safety and protection against unauthorized operation. Explore more Schneider Electric circuit breakers and electrical automation products on EnvMart for trusted quality and performance.
