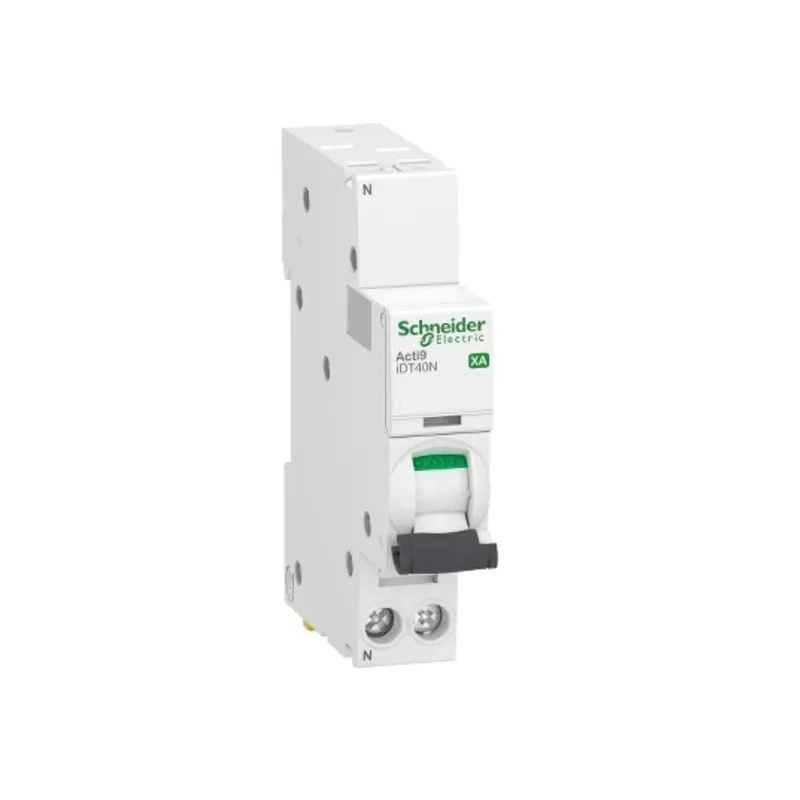

Schneider Electric Acti9 Acti9 iDT40N XA Miniature Circuit Breaker, 1-Pole, 25A, Type C, 230V AC, 6000 A Breaking A9PA4625

Schneider Electric A9PA4625 is a high-quality Acti9 iDT40N XA miniature circuit breaker designed for industrial and commercial electrical protection applications. It is equipped with a single pole configuration rated at 25 amperes and utilizes a Type C tripping characteristic which is suitable for general purpose protection against overloads and short circuits in circuits with moderate inrush currents. This model operates at 230V AC and delivers a breaking capacity of 6000 ampere, ensuring reliable interruption of fault currents.

The breaker features a thermal-magnetic tripping mechanism that combines thermal overload protection and instantaneous magnetic short circuit protection, enhancing operational safety. It mounts on a standard DIN Rail for quick and secure fitting within electrical panels or distribution boards. The toggle switch actuator provides clear ON/OFF positioning as well as trip indication for easy identification of breaker status.

Designed to meet demanding environmental conditions, the device withstands relative humidity up to 95% at 55°C and functions within an ambient temperature range from -25°C to 70°C. It complies with stringent EN/IEC 60898-1 and EN/IEC 60947-2 international standards, certifying its performance for industrial use. The compact dimensions (85mm height, 18mm width, and 74mm depth) enable efficient use of panel space. Additionally, it includes a padlockable feature to prevent accidental operation during maintenance work.

This circuit breaker is ideal for use in industrial automation, electrical distribution, manufacturing, commercial buildings, and HVAC systems, where reliable short circuit and overload protection are critical. Schneider Electric’s Acti9 premium class product line ensures durability and high safety standards.

Designed for DIN Rail mounting ensuring easy installation. Thermal magnetic tripping mechanism provides overload and short-circuit protection. Complies with EN/IEC 60898-1 and EN/IEC 60947-2 standards for safety and reliability.

Rated for 230V AC operation with a breaking capacity of 6000A. Toggle switch actuator with ON/OFF and trip indication for clear status monitoring. Compact dimensions of 85mm height, 18mm width, and 74mm depth save panel space.

Padlockable for enhanced safety during maintenance. Designed to perform in ambient temperatures from -25°C to 70°C and relative humidity up to 95% at 55°C.
