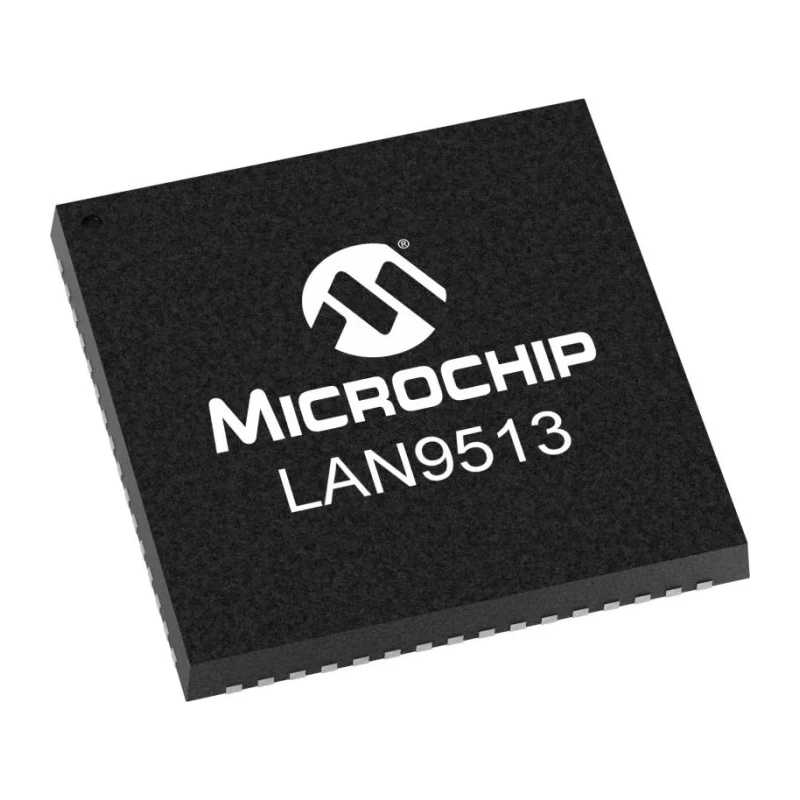

Microchip 64-Pin QFN Ethernet Controller 3.3 V 480 Mbps Full Duplex/Half Duplex LAN9513I-JZX

Microchip LAN9513I-JZX is a semiconductor Ethernet controller with a 64-pin QFN package operating at a 3.3 V supply voltage and delivering a maximum data rate of 480 Mbps. It supports both full duplex and half duplex communication modes, making it suitable for versatile Ethernet interface applications.

This integrated device combines a high-performance 10/100 Ethernet controller and a 3-port Hi-Speed USB 2.0 hub, offering a consolidated solution that reduces system complexity and bill of materials (BOM) costs. The EEPROM-less design option further streamlines manufacturing and cost efficiency.

With PHYBoost technology, the LAN9513I-JZX provides programmable four-level USB signal drive strengths enhancing signal integrity for downstream port transceivers. Its low supply current of 74 mA and compact 9 mm by 9 mm package with 1 mm height make it ideal for integration into mobile internet devices and other space-sensitive electronics.

The device operates reliably across a temperature range of -40°C to 85°C without automotive standard compliance, targeting primarily consumer and industrial electronics. It supports the IEEE communication standard, ensuring compatibility and stable network connectivity.

Key package specifications include a 64-pin QFN with precise dimensions enabling efficient PCB layout. The controller simplifies Ethernet and USB connectivity while maintaining performance in a power-efficient and compact design.

Integrates a fully functional 10/100 Ethernet controller with 3-port USB 2.0 hub. Supports full duplex and half duplex communication modes for flexible networking. Compact 64-pin QFN package measuring 9 mm length, 9 mm width, and 1 mm height.

Operates at 3.3 V supply voltage with typical supply current of 74 mA. Wide operating temperature range from -40°C to 85°C for industrial applications. EEPROM-less design reduces manufacturing complexity and costs. Includes PHYBoost technology for enhanced USB signal drive strength.

Supports IEEE standard for Ethernet communication reliability. Small footprint ideal for mobile internet devices and embedded systems.

This Ethernet controller is well-suited for industrial, commercial, and consumer electronics requiring integrated USB and Ethernet functionality in a compact form factor. It offers designers a low-cost, power-efficient solution for enhanced network and USB port integration.
