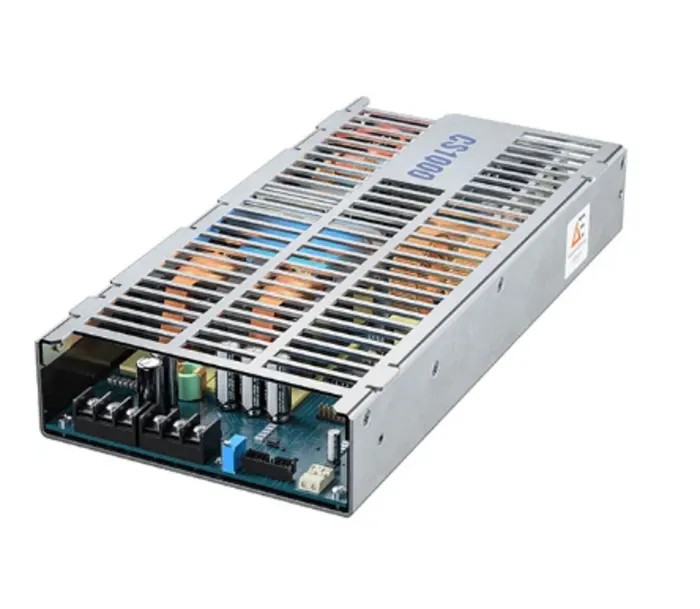

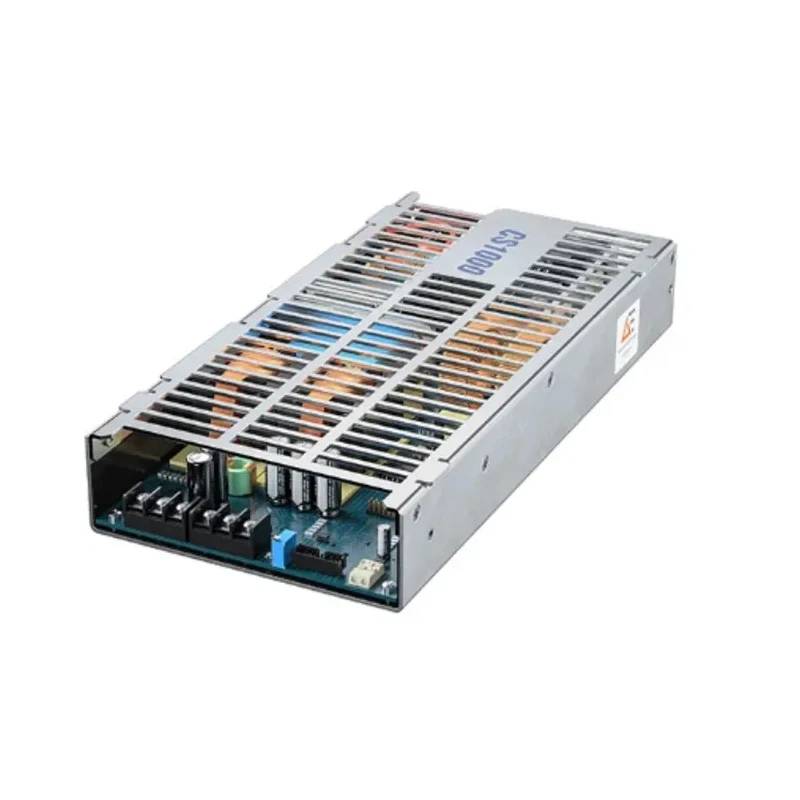

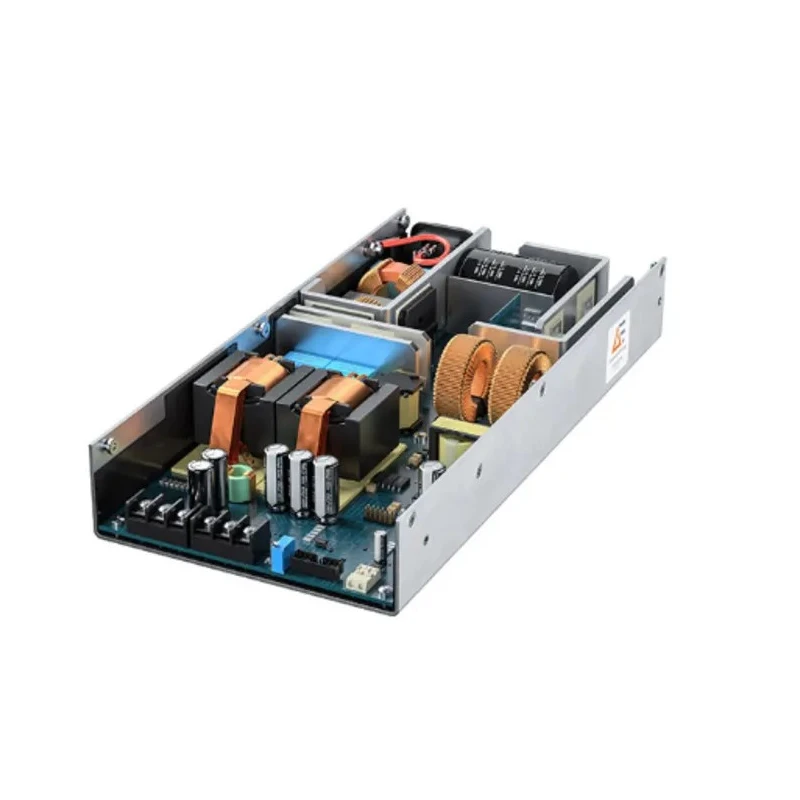

Excelsys / Advanced Energy 1 kW 48 V dc Convection-Cooled Switching Power Supply DIN Rail Mount CS10S-48N-0-A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Excelsys / Advanced Energy |
| Power | 1kW |
| Efficiency | 95% |
| Length | 262mm |
| Model | CS10S-48N-0-A |
| Depth | 39.1mm |
| Gross Weight | 1.3kg |
| Width | 127mm |
| Mount Type | DIN Rail |
| Series | CS1000 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Standards/Approvals | CE, EN, IEC, RoHS |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 20.8A |
| Minimum Input Voltage | 85V ac |
Key Features
- Provides 1000 W convection-cooled power output with no acoustic noise or vibrations.
- Features a single 48 V dc output with 20.8 A current capacity.
- Operates over a wide input voltage range from 85 V ac to 264 V ac.
- Designed for harsh environments with operating temperatures from -40°C to 85°C.
- Compact open-frame U-channel form factor eases installation and heat dissipation.
- Complies with CE, EN, IEC, and RoHS standards for safety and environmental requirements.
- Mounts easily on DIN rails, facilitating versatile industrial mounting options.
- High efficiency at 95% minimizes energy waste and operating costs.
Product Description
Excelsys / Advanced Energy CS10S-48N-0-A switching power supply is a high-performance 1 kW convection-cooled device providing a stable 48 V dc output suitable for a variety of industrial, scientific, and medical applications. Its natural convection cooling eliminates the need for acoustic fans, preventing vibrations and noise that can interfere with sensitive equipment. This switching power supply is designed for DIN rail mounting, ensuring flexible integration into electrical enclosures and control cabinets.
Operating efficiently at 95%, the CS10S-48N-0-A accepts a wide input voltage range of 85 V ac to 264 V ac, enabling deployment in diverse regional power systems and fluctuating power conditions. It features a single output delivering up to 20.8 A current, making it ideal for powering sensitive and stable loads.
The device sustains operation across a wide temperature range from -40°C to 85°C, supporting usage in demanding environments and harsh industrial conditions. Its open-frame U-channel form factor offers ease of installation and effective heat dissipation without the need for additional base plates.
This switching power supply is certified to meet CE, EN, IEC, and RoHS standards, ensuring compliance with international safety and environmental regulations. Its low leakage option allows use in applications requiring minimal earth leakage current.
1000 W natural convection cooling eliminates acoustic noise and vibrations. Single 48 V dc output with 20.8 A current delivery. Wide input voltage range from 85 V ac to 264 V ac. Operating temperature tolerance from -40°C to 85°C for robust reliability.
Compact open-frame U-channel design for easy installation and heat management. DIN rail mounting supports flexible system integration. Compliance with CE, EN, IEC, and RoHS certification standards. High efficiency of 95% reduces energy consumption.
Lightweight at 1.3 kg for ease of handling and installation. Perfect for scientific, medical, industrial, and vibration-sensitive applications. Explore more Switching Power Supplies and power conversion solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a power output of 1 kW (1000 W).
The maximum output voltage is 48 V dc.
It has a current capacity of 20.8 A.
The efficiency rating is 95%, minimizing energy waste.
It operates over a wide input voltage range from 85 V ac to 264 V ac.
The operating temperature range is from -40°C to 85°C.
The dimensions are 262 mm in length, 127 mm in width, and 39.1 mm in depth.
It complies with CE, EN, IEC, and RoHS standards for safety and environmental requirements.
The gross weight of the unit is 1.3 kg.
It uses natural convection cooling, eliminating the need for acoustic fans.
It is suitable for industrial, scientific, and medical applications, especially where noise and vibrations are a concern.
