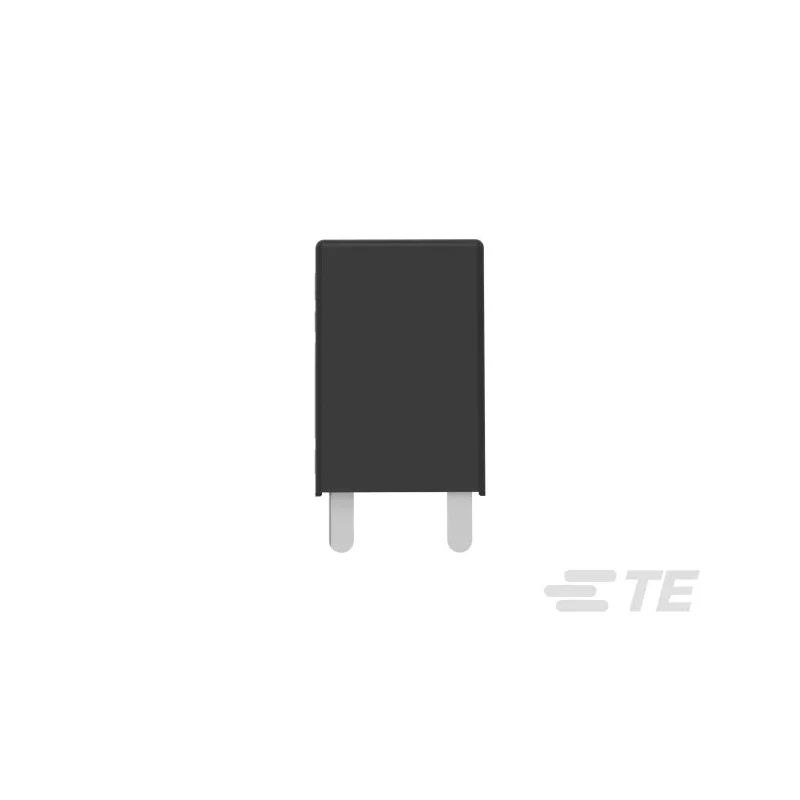

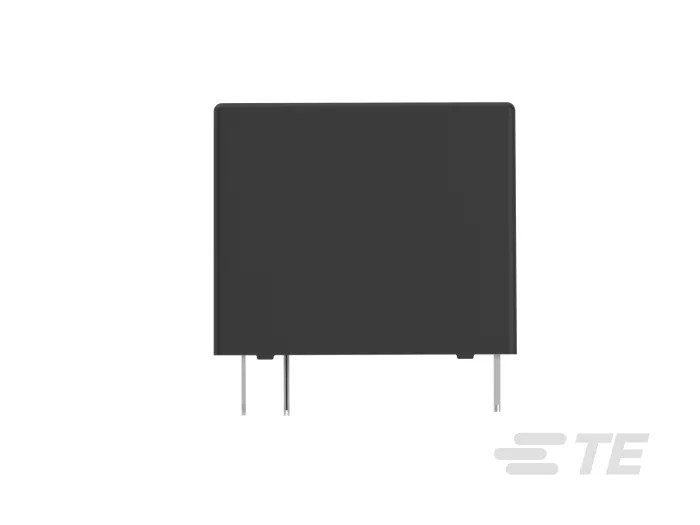

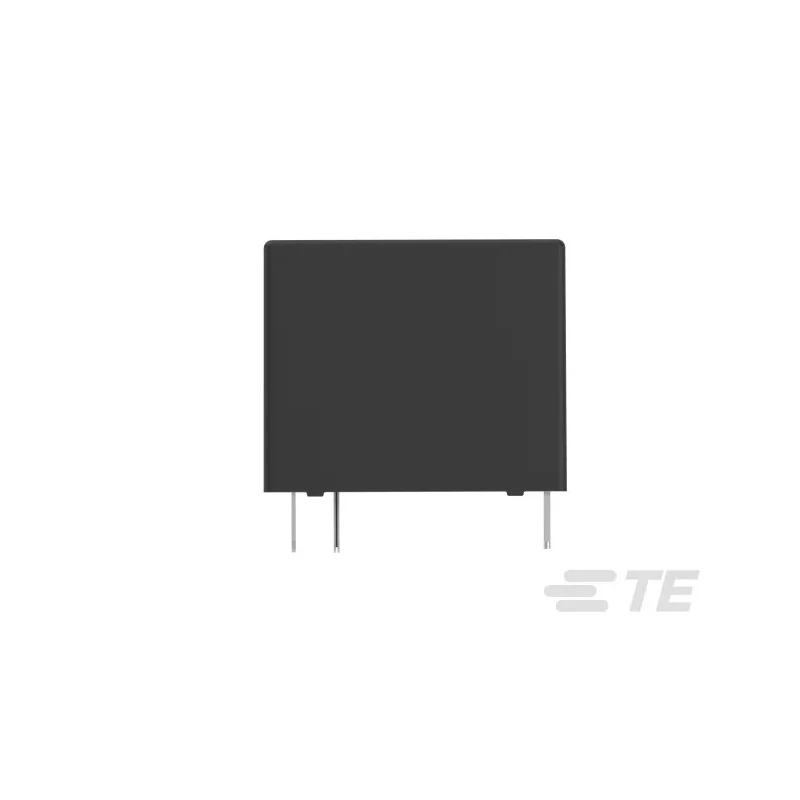

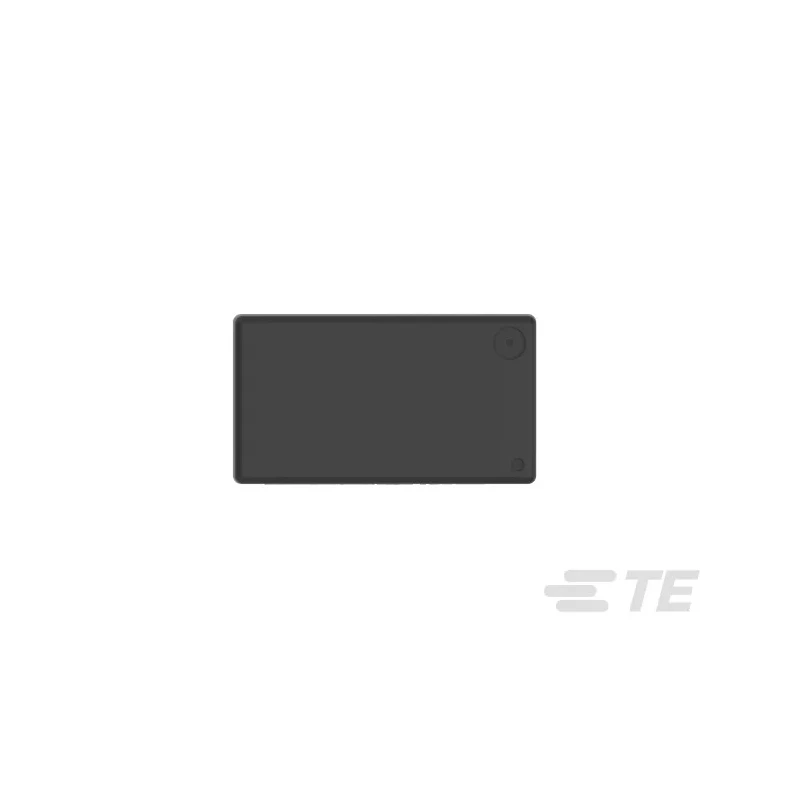

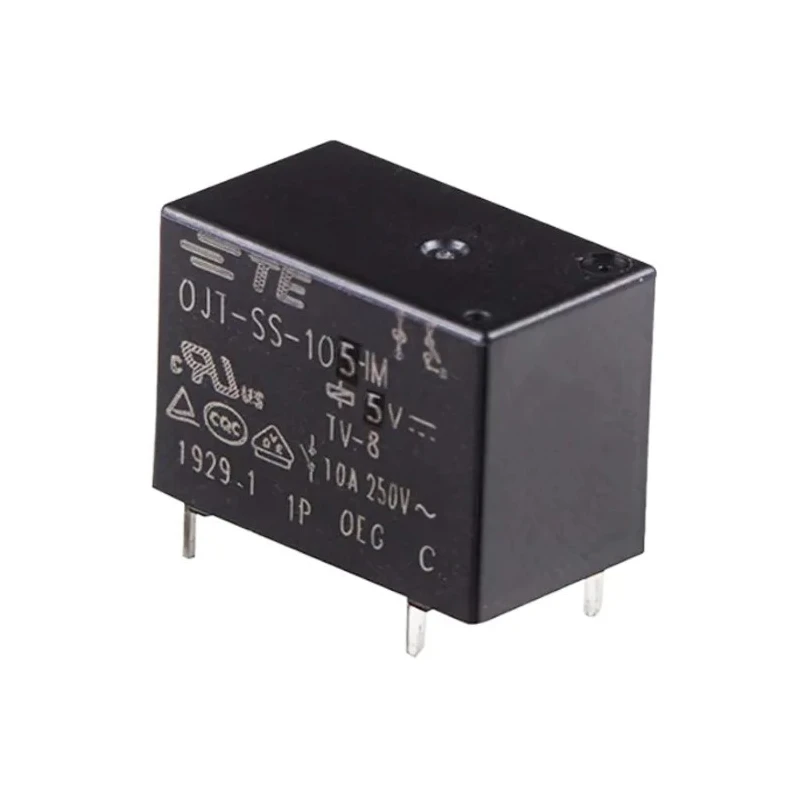

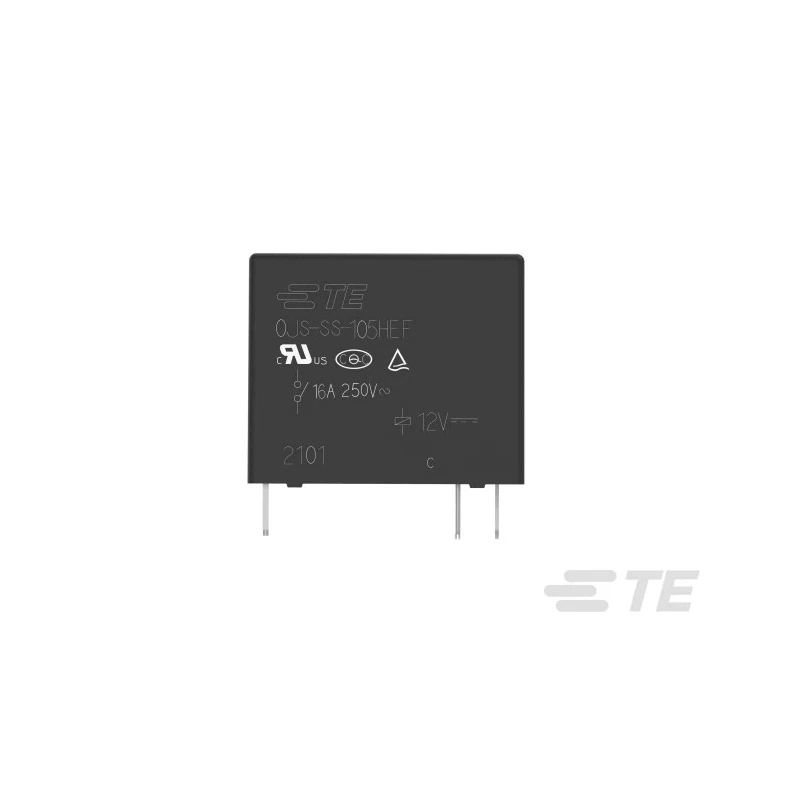

TE Connectivity PCB Relay 5V DC Coil 16A Switching Current SPST 1-2071556-1

TE Connectivity 1-2071556-1 PCB Relay features a 5V DC coil voltage and a 16A switching current capacity, making it ideal for controlling electrical power flow in compact PCB installations. The single-pole single-throw (SPST) contact configuration supports switching applications requiring reliable electrical isolation and connection.

This PCB relay is built to precise standards, complying with IEC 62368-1 and RoHS certification for reliable performance and environmental compliance. Its compact dimensions (18.2mm length, 10.2mm width, 14.8mm height) enable it to fit seamlessly into densely packed circuit boards.

The coil power consumption is efficient at 450mW, and the high coil resistance (56Ω) ensures energy-efficient actuation. Using silver alloy contact materials enhances conductivity and durability, while the screw terminal type ensures stable and secure electrical connections.

Designed to operate across a wide temperature range of -40°C to 70°C, this relay is suitable for demanding industrial and commercial applications including robotics, CNC machinery, control panels, HVAC systems, solar power equipment, and safety-critical automation systems.

Its capability to switch up to 277V AC and handle inrush current safely makes it versatile for numerous industrial automation requirements. The relay also provides a high dielectric strength of 4000Vrms between coil and contact, ensuring operational safety in high-voltage environments.

Operates with a coil voltage of 5V DC for efficient switching. Supports high current switching up to 16 amps with a SPST contact configuration. Compact dimensions of 18.2mm length, 10.2mm width, and 14.8mm height for space-saving PCB integration.

Coil power consumption is low at 450mW ensuring minimal energy usage. Equipped with silver alloy contacts for improved conductivity and durability. Suitable for operating temperatures from -40°C to 70°C for versatile environmental use.

Certified compliant with RoHS standards for environmental safety. Designed to handle switching AC voltage up to 277V AC for varied applications. Utilizes screw terminal type for secure and reliable electrical connections.

High coil resistance of 56 ohms for stable operation.

Choose TE Connectivity PCB Relay 1-2071556-1 for advanced electronic control in industrial, laboratory, automation, and manufacturing settings. Explore more power Relays and switching solutions on EnvMart for comprehensive electrical component selection.
