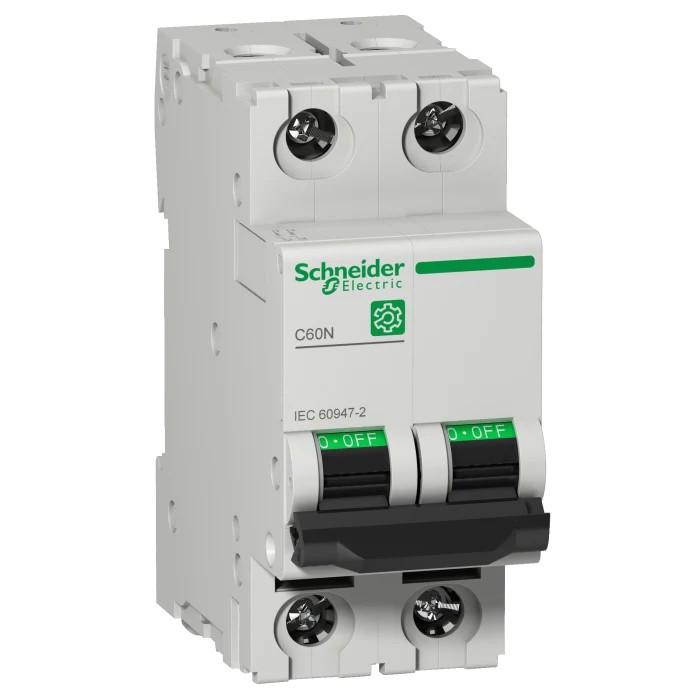

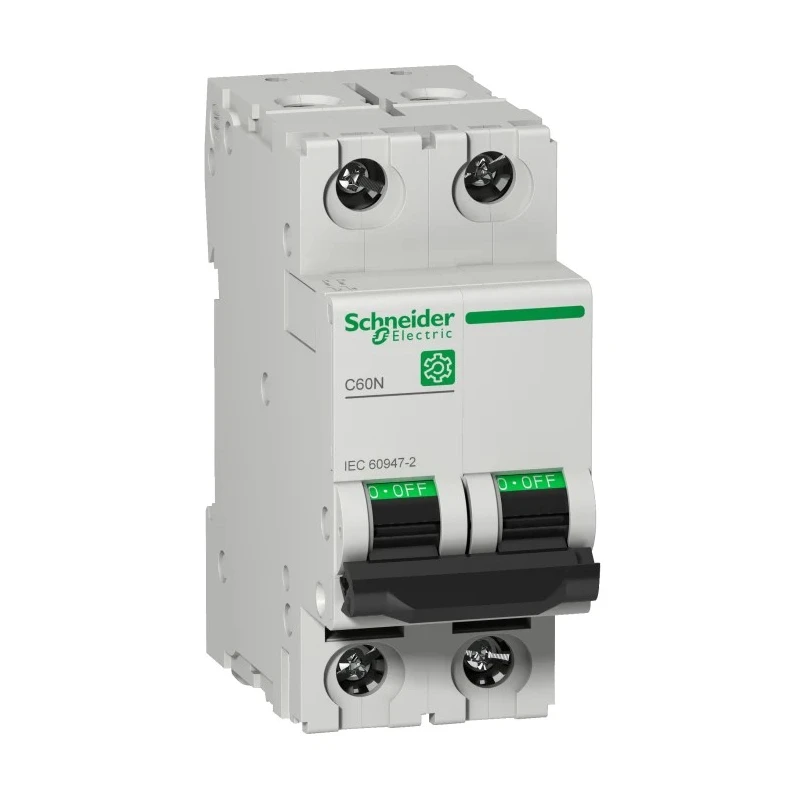

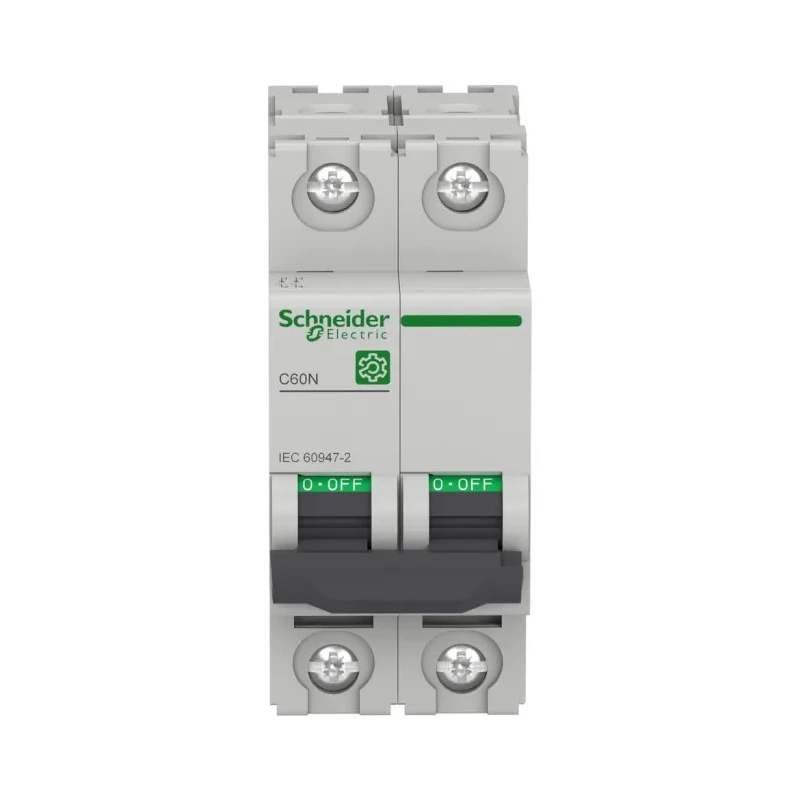

Schneider Electric Multi9 C60N Miniature Circuit Breaker, 2-Pole, 6A, Type C, 240V AC, 125V DC, 10kA Breaking Capacity

Schneider Electric M9F11206 is a high-quality Multi9 C60N Miniature Circuit Breaker designed for industrial and commercial distribution circuits. Featuring a 2-pole configuration with a 6A current rating, this device provides reliable protection through its thermal-magnetic trip mechanism.

Rated for AC voltage of 240V and DC voltage of 125V, it supports both AC and low-voltage DC applications. The Type C tripping curve enables selective interruption of motor and general loads, ideal for small motor feeders and control systems.

This breaker’s 10kA breaking capacity at 415VAC ensures robust fault clearing, enhancing safety and system reliability. Its clip-on mounting and slim 36mm width enable space-saving installation on DIN rails inside control panels and industrial automation boards.

Tunnel terminals accommodate conductors ranging from 1mm² to 25mm², accepting rigid, flexible, and ferruled cables at the top or bottom, allowing versatile wiring options. Local ON/OFF indication provides clear contact status.

With mechanical durability rated for 20,000 operating cycles and electrical endurance for 10,000 cycles, the device promises long-lasting performance under frequent operation. Its IP20 and IP40 protection ratings suit modular enclosures, providing resistance against dust and external contact.

The breaker performs reliably within temperatures from -30°C to 70°C, with humidity tolerance up to 95% at 55°C and pollution degree 3 conditions. Originating from Bulgaria, this Siemens-quality breaker meets international standards including EAC, KC, CCC, and IEC 60947-2 certifications.

Thermal-magnetic trip mechanism ensures combined short-circuit and overload protection. Type C tripping characteristic for motor and general load applications. 10kA breaking capacity at 415VAC provides high fault clearing capability.

Clip-on mount design facilitates easy DIN-rail installation. Tunnel terminals accept a wide range of conductor sizes for flexible wiring. Local ON/OFF toggle indicator gives clear circuit state feedback. Mechanical and electrical life supports repeated operations and system reliability.

Wide operating temperature range and humidity tolerance for harsh environments. Suitable for retrofit replacement in space-constrained modular enclosures.

Ideal for electrical distribution boards, automation panels, small motor control feeders, and DC supply protection up to 125V. Schneider Electric Multi9 circuit breakers are trusted components in industrial, commercial, and HVAC electrical applications requiring precision and durability.
